ASROCK Rack EP2C612D8C Quick Installation Manual

*15G065044100AK*
P/N: 15G065044100AK V1.0
Quick Installation Guide
EP2C612D8C
The server board User's Manual is available for download from the ASRock Rack's official website
at http://www.asrockrack.com.
Take note of the following precautions before you install server board components or change any
server board settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the server board's components due to static electricity, NEVER place your
server board directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in the bag
that comes with the component.
5. When placing screws into the screw holes to secure the server board to the chassis, please do
not over-tighten the screws! Doing so may damage the server board.

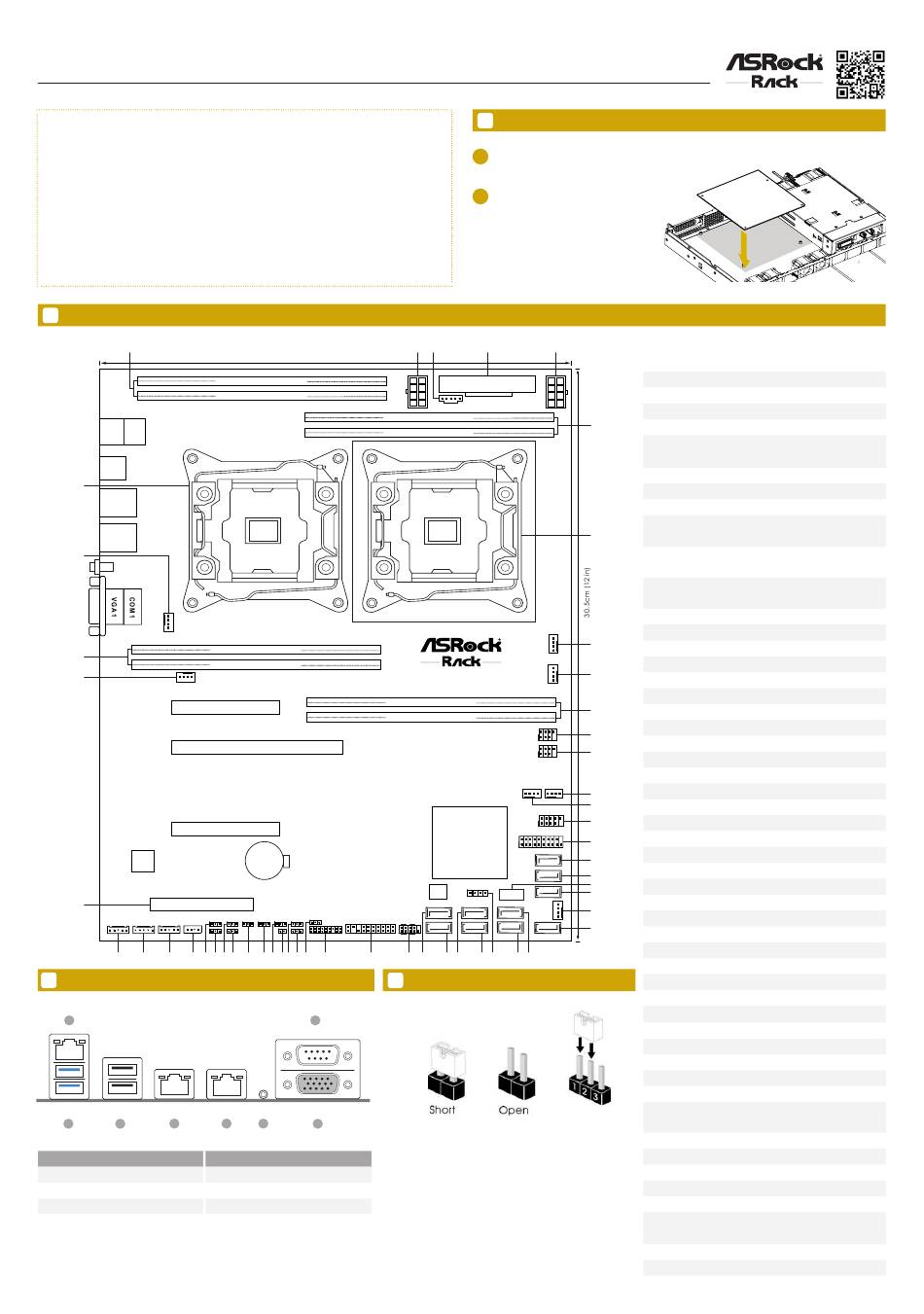

2 Motherboard Layout
1
USB 3.0
IPMI
T: USB1
LAN
B: USB2
USB 2.0
T: USB1
B: USB2
52
LAN1
LAN2
51
UID1
CPU2_FAN1
50
49
REAR_FAN1
PCIE6
PCIE3
BMC
ROM
48 MEZZ1
PMBUS_SEL_DATA1
PMBUS_SEL_CLK1
BMC_SMB1 BMC_SMB2 BMC_SMB3 IPMB1
1
1 1 1 1
1
47 46 45 44 43 42
3 I/O Panel
2
3
1 4
No. Description No. Description
1 USB 3.0 Ports (USB3_1_2) 5
2 LAN RJ-45 Port (IPMI_LAN) 6
3 USB 2.0 Ports (USB_1_2) 7
4 LAN RJ-45 Port (LAN1) 8
25.40 cm (10 in)
DDR4_H (64 bit, 288-pin module, Blue)
DDR4_G (64 bit, 288-pin module, Blue)
DDR4_B (64 bit, 288-pin module, Blue)
DDR4_A (64 bit, 288-pin module, Blue)
CPU2
DDR4_E (64 bit, 288-pin module, Blue)
DDR4_F (64 bit, 288-pin module, Blue)
(Blue)
PCIE5
(Blue)
(White)
BAT1
ME_RECOVERY1
J100 PECI1 CHASSIS_ID1 CHASSIS_ID2 CHASSIS_ID3
PMBUS_SEL_ALT1 NMI_BTN1 T 1 R
AUX_PANEL1
1 TPM1
1 1 1 1
1
1 1
1 1 1
41 40 39 38 37 36 35 34 33 32 31
4
8
5 6 7
LAN RJ-45 Port (LAN2)
UID Switch (UID)
Serial Port (COM1)
VGA Port (VGA1)
1 Install the Server Board
1
Insert the server board into the chassis.
2
A f f i x t he screws clock w ise into t he
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
2 3 4 5
ATXPWR1
1
ATX12V2
PSU_SMB1 ATX12V1
CPU1
CPU1_FAN1
FRNT_FAN3
EP2C612D8C
DDR4_C (64 bit, 288-pin module, Blue)
DDR4_D (64 bit, 288-pin module, Blue)
SSATA_SGPIO1
1
1
SATA_SGPIO1
FRNT_FAN2 FRNT_FAN4
USB_3_4
Intel
1
USB3_4_5
1
C612
SSATA_0
SSATA_1
SPEAKER1
BIOS
64Mb
1 1 USB3_3
SSATA_2
SATA_5
SATA_3 SATA_1
FRNT_FAN1
PANEL1
PLED PWRBTN
1
HDLED RESET SSATA_3
SATA_4 SATA_2 SATA_0
30 29 28 27 26 25 24 23
Jumper Cap On/Off
When the jumper cap is placed on the pins, the
jumper is "Short". If no jumper cap is placed on the
pins, the jumper is "Open".
The illustration shows a 3-pin jumper whose pin1
and pin2 are "Short" when a jumper cap is placed on
these 2 pins.
www.asrockrack.com
2 x 288-pin DDR4 DIMM Slots
1
(DDR4_G, DDR4_H, Blue)
2 ATX 12V Power Connector (ATX12V2)
3 PSU SMBus (PSU_SMB1)
4 ATX Power Connector (ATXPWR1)
5 ATX 12V Power Connector (ATX12V1)
6
2 x 288-pin DDR4 DIMM Slots
6
(DDR4_A, DDR4_B, Blue)
7 LGA 2011 R3 CPU Socket 1 (CPU1)
8 CPU 1 Fan Connector (CPU1_FAN1)
9 Front Fan Connector (FRNT_FAN3)
2 x 288-pin DDR4 DIMM Slots
10
(DDR4_C, DDR4_D, Blue)
7
SSATA SGPIO Connector (SSATA_SGPIO1)
11
(SSATA3 0-3)
SATA SGPIO Connector (SATA_SGPIO1) (SATA3
12
0-5)
13 Front Fan Connector (FRNT_FAN4)
14 Front Fan Connector (FRNT_FAN2)
8 15 USB 2.0 Header (USB_3_4)
16 USB 3.0 Header (USB3_4_5)
9
17 SSATA3 Connector (SSATA_0)
18 SSATA3 Connector (SSATA_1)
19 Vertical Type A USB 3.0 (USB3_3)
10
20 SSATA3 Connector (SSATA_2)
11
21 Front Fan Connector (FRNT_FAN1)
12
22 SSATA3 Connector (SSATA_3)
23 SATA3 Connector (SATA_1)
24 SATA3 Connector (SATA_0)
13
25 Speaker Header (SPEAKER1)
14
26 SATA3 Connector (SATA_2)
15
27 SATA3 Connector (SATA_3)
16
28 SATA3 Connector (SATA_4)
17
29 SATA3 Connector (SATA_5)
18
30 System Panel Header (PANEL1)
19
20
31 Auxiliary Panel Header (AUX_PANEL1)
21
32 TPM Header (TPM1)
22
33 Chassis ID3 Jumper (CHASSIS_ID3)
34 Thermal Sensor Header (TR1)
35 Chassis ID2 Jumper (CHASSIS_ID2)
36 Non Maskable Interrupt Button (NMI_BTN1)
37 Chassis ID1 Jumper (CHASSIS_ID1)
38 CPU PECI Mode Jumper (PECI1)
39 ME Recovery Jumper (ME_RECOVERY1)
40 PMBUS Mode Jumper (PMBUS_SEL_ALT1)
41 Descriptor Security Override Jumper (J100)
42 PMBUS Mode Jumper (PMBUS_SEL_CLK1)
43 PMBUS Mode Jumper (PMBUS_SEL_DATA1)
Intelligent Platform Management Bus header
44
(IPMB1)
45 BMC SMBus Header (BMC_SMB_3)
46 BMC SMBus Header (BMC_SMB_2)
47 BMC SMBus Header (BMC_SMB_1)
48 Mezzanine Card Slot (MEZZ1) (for storage card)
49 Rear Fan Connector (REAR_FAN1)
2 x 288-pin DDR4 DIMM Slots
50
(DDR4_E, DDR4_F, Blue)
51 CPU 2 Fan Connector (CPU2_FAN1)
52 LGA 2011 R3 CPU Socket 2 (CPU2)
