Accton Technology ASA926-18XKE Quick Start Manual

Quick Start Guide
Network Cloud Packet Forwarder
ASA926-18XKE | ASA926-18XKA
1.

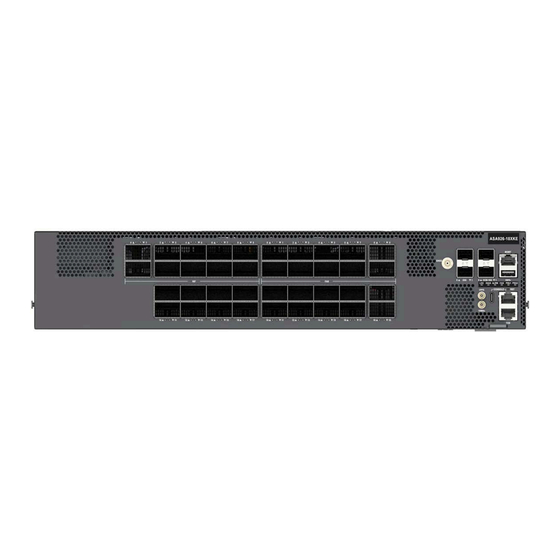

Network Cloud Packet Forwarder
2. Slide-rail mounting kit—2 rack slide-rails and install guide
3. AC power cord, type IEC C20 (included with AC PSUs only)
1
1.
18 x 800G OSFP800 network ports
2.
20 x 800G OSFP800 fabric ports
3. GNSS connector
4.
2 x 25G SFP28 in-band ports, 2 x 10G SFP+ OOB ports,
1 x 1000BASE-T MGMT RJ-45 port, USB
1
FRU Replacement
PSU Replacement
1. Remove the power cord.
2. Press the release latch and
remove the PSU.
3.
Install replacement PSU with
matching airflow direction.

Package Contents
1
2
4
3
6
System LEDs/Buttons
4
2 3
5
Fan Tray Replacement
1. Pull the handle release latch.
2. Remove the fan tray from the
chassis.
3.
Install a replacement fan with
matching airflow direction.
2
4.
DC power cord (included with DC PSUs only)
5.
Documentation—Quick Start Guide (this document) and Safety
and Regulatory Information
Overview
8
5
7
5.
System LEDs, reset button
6.
Console (RJ-45, USB Type-C), Timing Ports (1PPS, 10 MHz, TOD)
7. 2 x grounding screws
8.
2 x AC or DC PSUs
9.
4 x fan trays
1.
OSFP800 LEDs: Purple (800G), Blue (400G), Cyan (200G),
Green (100G), Red (50G)
2. SFP28 LEDs: Green (link/activity)
4
3. SFP+ LEDs: Green (link/activity)
4. RJ-45 MGMT LEDs: Left: Green (link/act), Right: Green (speed)
5. System LEDs:
LOC: Flashing Green (switch locator)
DIAG: Green (OK), Red (fault)
ALRM: Red (fault)
6
FAN: Green (OK), Red (fault)
PSU1/PSU2: Green (OK), Red (fault)
6.
RST: Reset button
Caution:
be completed within two minutes to prevent the switch shutting
down due to its built-in over-temperature protection.
Attention:
remplacement du ventilateur doit être effectué dans les deux
minutes pour éviter que le commutateur ne s'arrête en raison
de sa protection intégrée contre la surchauffe.
– 1 –
www.accton.com
3 4
9
During switch operation, fan replacement should
Pendant le fonctionnement du commutateur, le
5
E112024-CS-R02
150200002734A
