Accton Technology AS9817-64D Quick Start Manual

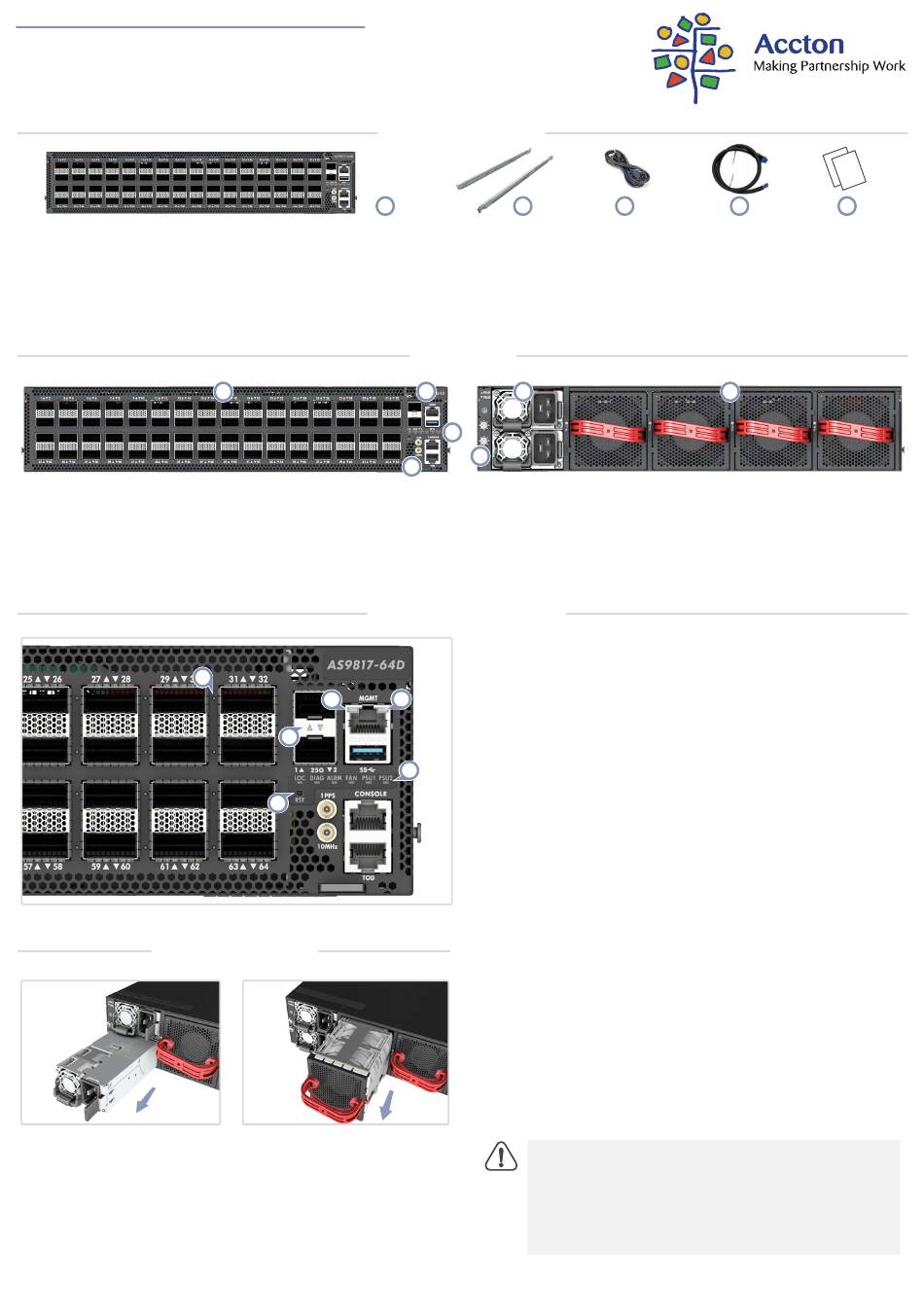

Quick Start Guide
64-Port 800G Ethernet Switch
AS9817-64D
1.

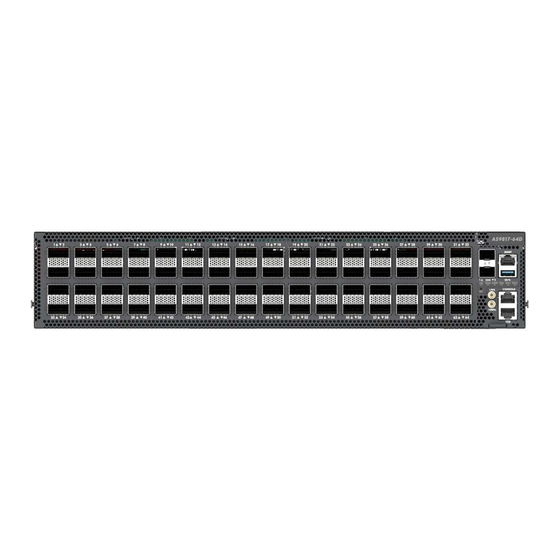

64-Port 800G Ethernet Switch AS9817-64D
2. Slide-rail mounting kit—2 rack slide-rails and install guide
3. AC power cord, type IEC C20 (included with AC PSUs only)
1.
64 x 800G QSFP-DD800 ports
2.
Management Ports: 1 x 1000BASE-T RJ-45, 2 x 25G SFP28,
RJ-45 console, USB
3. Timing Ports: 1PPS, 10 MHz, TOD
4.
System LEDs
FRU Replacement
PSU Replacement
1. Remove the power cord.
2. Press the release latch and
remove the PSU.
3.
Install replacement PSU with
matching airflow direction.

1
1
2
3
5
Fan Tray Replacement
1. Pull the handle release latch.
2. Remove the fan tray from the
chassis.
3.
Install a replacement fan with
matching airflow direction.
Package Contents
1 2
4.
DC power cord (included with DC PSUs only)
5.
Documentation—Quick Start Guide (this document) and Safety
and Regulatory Information
Overview
2 6
4
5
3
5.
2 x grounding screws
6.
2 x AC or DC PSUs
7. 4 x fan trays
System LEDs/Buttons
1.
QSFP-DD800 LEDs: Purple (800G), Blue (400G), Cyan (200G),
Green (100G), Red (50G)
2. RJ-45 MGMT LEDs: Left: Green (link/act), Right: Green (speed)
2
3. SFP28 LEDs: Green (link/activity)
4. System LEDs:
LOC: Flashing Green (switch locator)
DIAG: Green (OK), Red (fault)
4
ALRM: Red (fault)
FAN: Green (OK), Red (fault)
PSU1/PSU2: Green (OK), Red (fault)
5.
RST: Reset button
Caution:
be completed within two minutes to prevent the switch shutting
down due to its built-in over-temperature protection.
Attention:
remplacement du ventilateur doit être effectué dans les deux
minutes pour éviter que le commutateur ne s'arrête en raison
de sa protection intégrée contre la surchauffe.
– 1 –
www.accton.com
3 4
7
During switch operation, fan replacement should
Pendant le fonctionnement du commutateur, le
5
E052024-CS-R02
150200002670A
