Booth BAR3 Product Manual

Shelf mounted coolers
Hide thumbs Also See for BAR3:

Advertisement

Quick Links

Download this manual
Product Manual
BAR3
Shelf Mounted Coolers
3B6694-E

Advertisement

loading
Need help?

Need help?

Do you have a question about the BAR3 and is the answer not in the manual?

Questions and answers

Related Manuals for Booth BAR3

Summary of Contents for Booth BAR3

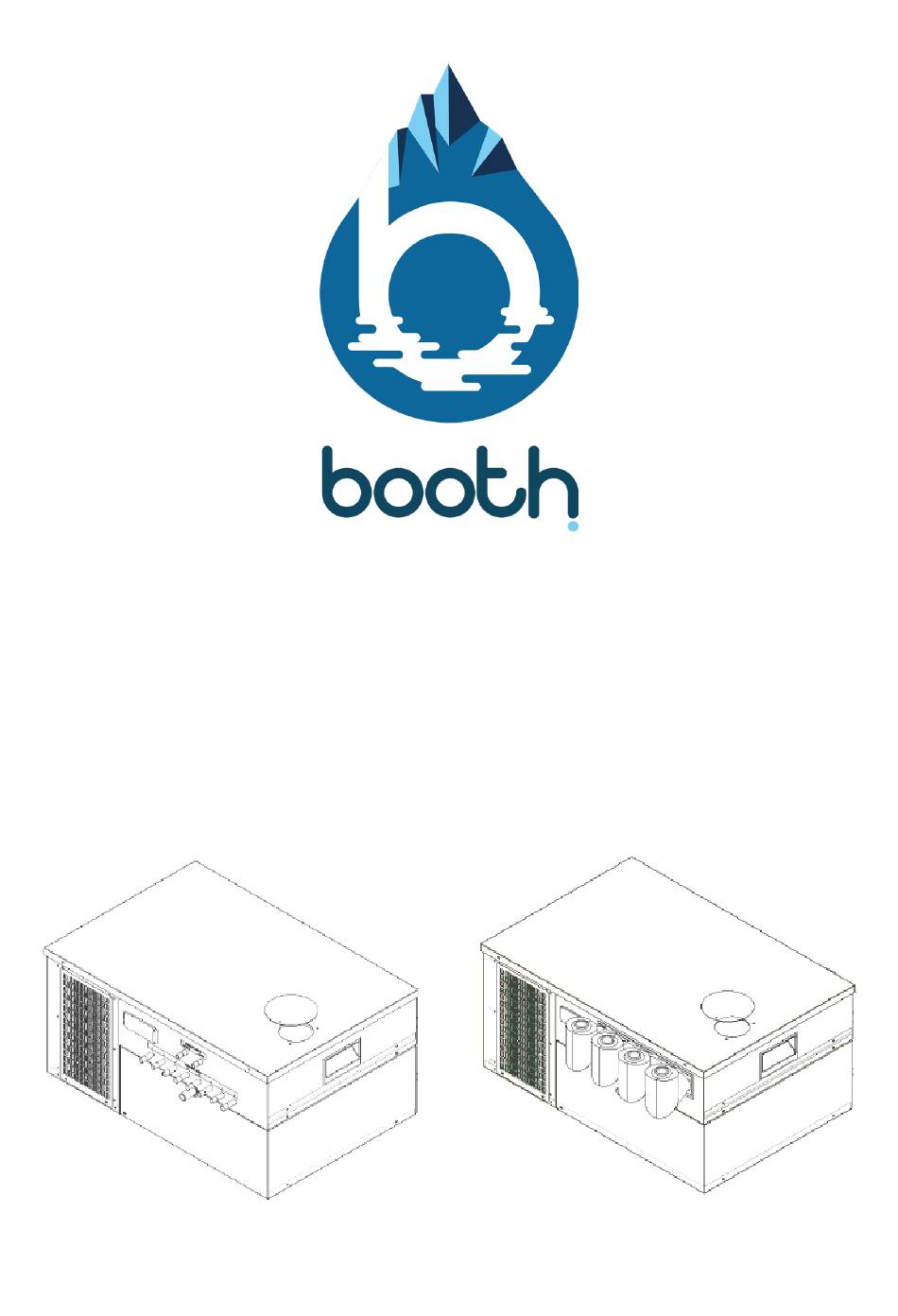

  • Page 1 Product Manual BAR3 Shelf Mounted Coolers 3B6694-E...

  • Page 2: Table Of Contents

    Model Numbering Convention Introduction The BAR3 is an ice bath cooler designed to provide chilled product in a dispense application. The system uses a bath water recirculation system and python to generate and maintain optimum drink temperature at the point of dispense.

  • Page 3: Removal, Transport & Disposal

    It is illegal to simply scrap a refrigeration unit. Before a unit can be scrapped it must first have the gas removed by a specialist using specialist equipment. Please contact Booth Dispensers Ltd, who will be happy to provide a quotation for disposal.

  • Page 4: Specification

    Specifications BAR3H Dimensions 570mm(W) Cubigel 450mm(D) Compressor NLY60RAa 280mm(H) Dry Weight 28Kg This product contains Propane Refrigerant gas with a GWP of 3 in a hermetically sealed system. Wet Weight 39Kg Supply R290 230Vac/50Hz Refrigerant Rated Input 304W Climate Class Rated Current 2.7A Nominal Ice Bank...

  • Page 5: Installation

    Connect the product to the stainless steel product coils or tube in tube connections depend- ent on model. • BAR3H - For details on how to install Tube in Tube/Scope dispense, please contact Booth at customerservice@booth-dispensers.co.uk. Alternatively, please phone on 01253 501800 to speak to one of our advisors.

  • Page 6: Model Numbering Convention

    Model Numbering Convention Unit number ( BAR3 ) ( Z ) ( Y ) ( X ) (W) (V) Key: Refrigerant Module Type Pump Type Deck Number of Coils - - - Coil type and number of coils repeated as necessary...

  • Page 7: Schematics

    Schematics BAR3H Eliwell Module Wiring Schematic 3B6694-E...
  • Page 8 Schematics BAR3H - DXF Module Wiring Schematics 3B6694-E...
  • Page 9 Schematics BAR3H - Mechanical Module Wiring Schematics 3B6694-E...

  • Page 10: Fault Finding

    Fault Finding Prior to any fault finding, please ensure all connections to the chiller are sound and that the incoming supply is turned on. Ensure that all electrical connections to the chiller and in the chiller are secure and in good condition, the power is on and that the chiller has had adequate time to reach operating temperature.

  • Page 11: Replacment Parts

    Replacement Parts 3B6694-E...
  • Page 12 Booth Dispensers Limited, 101 Moor Park Avenue, Blackpool, Lancashire, FY2 0LZ, UK. +44 1253 501800 Website: www.booth-dispensers.co.uk/...
