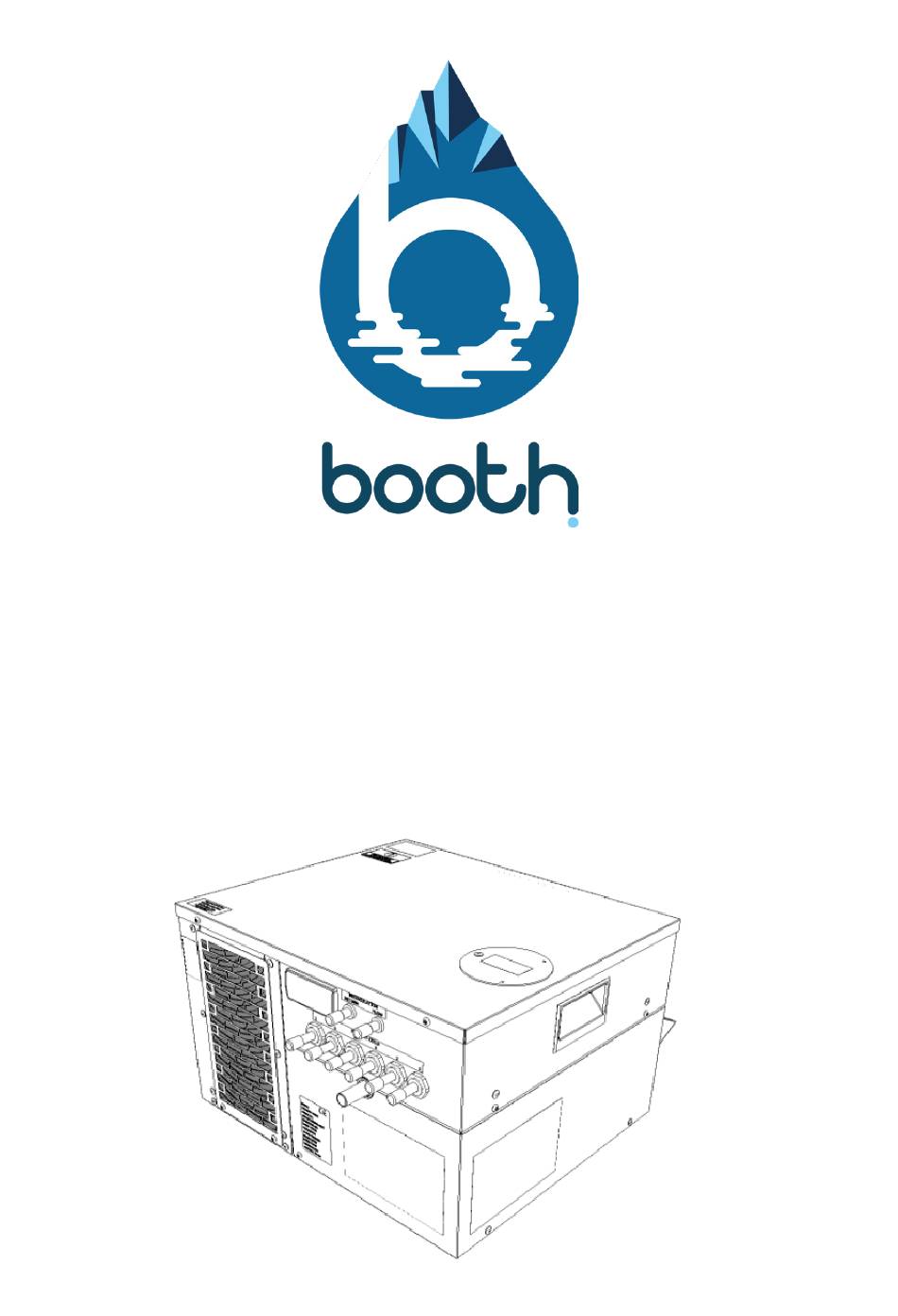

  • Page 1 Product Manual BAR2H Shelf Mounted Coolers 3B6993-B...

  • Page 2: Table Of Contents

    Model Numbering Convention Introduction The BAR2H is an ice bath cooler designed to provide chilled product for under counter applications. The system uses a bath water recirculation system and python to generate and maintain optimum drink temperature at the point of dispense.

  • Page 3: Removal, Transport & Disposal

    It is illegal to simply scrap a refrigeration unit. Before a unit can be scrapped it must first have the gas removed by a specialist using specialist equipment. Please contact Booth Dispensers Ltd, who will be happy to provide a quotation for disposal.

  • Page 4: Specification

    Specifications Dimensions 453mm(W) 425mm(D) +40mm Huyai Cubigel Compressor for coils NLY45RA 282mm(H) Dry Weight 25Kg This product contains Propane Refrigerant gas with a GWP of 3 in a hermetically sealed system. Wet Weight Supply R290 230Vac/50Hz Refrigerant Rated Input Climate Class 300W Rated Current 1.25A...

  • Page 5: Installation

    Installation Installation The unit must be installed by a competent person. If unit is to be free standing, it must be placed on a firm level surface capable of supporting the weight of the machine when the bath is filled. It is important that the ventilation openings in the machine are not blocked to allow the free movement of air.

  • Page 6: Model Numbering Convention

    Model Numbering Convention Unit number ( BAR2H ) ( X ) ( Y ) ( Z ) Key: BAR2H Base Type Pump Type Control Option No. of Coils/Deck Option Reference (X) Part # Description 1A5176 SPC8/2 Pump 1A5177 SPC12/4 Reference (Y)

  • Page 7: Schematics

    Schematics BRW2H Eliwell Module Wiring Schematic 3B6993-B...
  • Page 8 Schematics BRW2H - DXF Module Wiring Schematics 3B6993-B...
  • Page 9 Schematics BRW2H - Mechanical Module Wiring Schematics 3B6993-B...

  • Page 10: Fault Finding

    Fault Finding Prior to any fault finding, please ensure all connections to the chiller are sound and that the incoming supply is turned on. Ensure that all electrical connections to the chiller and in the chiller are secure and in good condition, the power is on and that the chiller has had adequate time to reach operating temperature.

  • Page 11: Replacment Parts

    Replacement Parts 3B6993-B...
  • Page 12 Booth Dispensers Limited, 101 Moor Park Avenue, Blackpool, Lancashire, FY2 0LZ, UK. +44 1253 501800 Website: www.booth-dispensers.co.uk/...
