Summary of Contents for Booth BAR1H

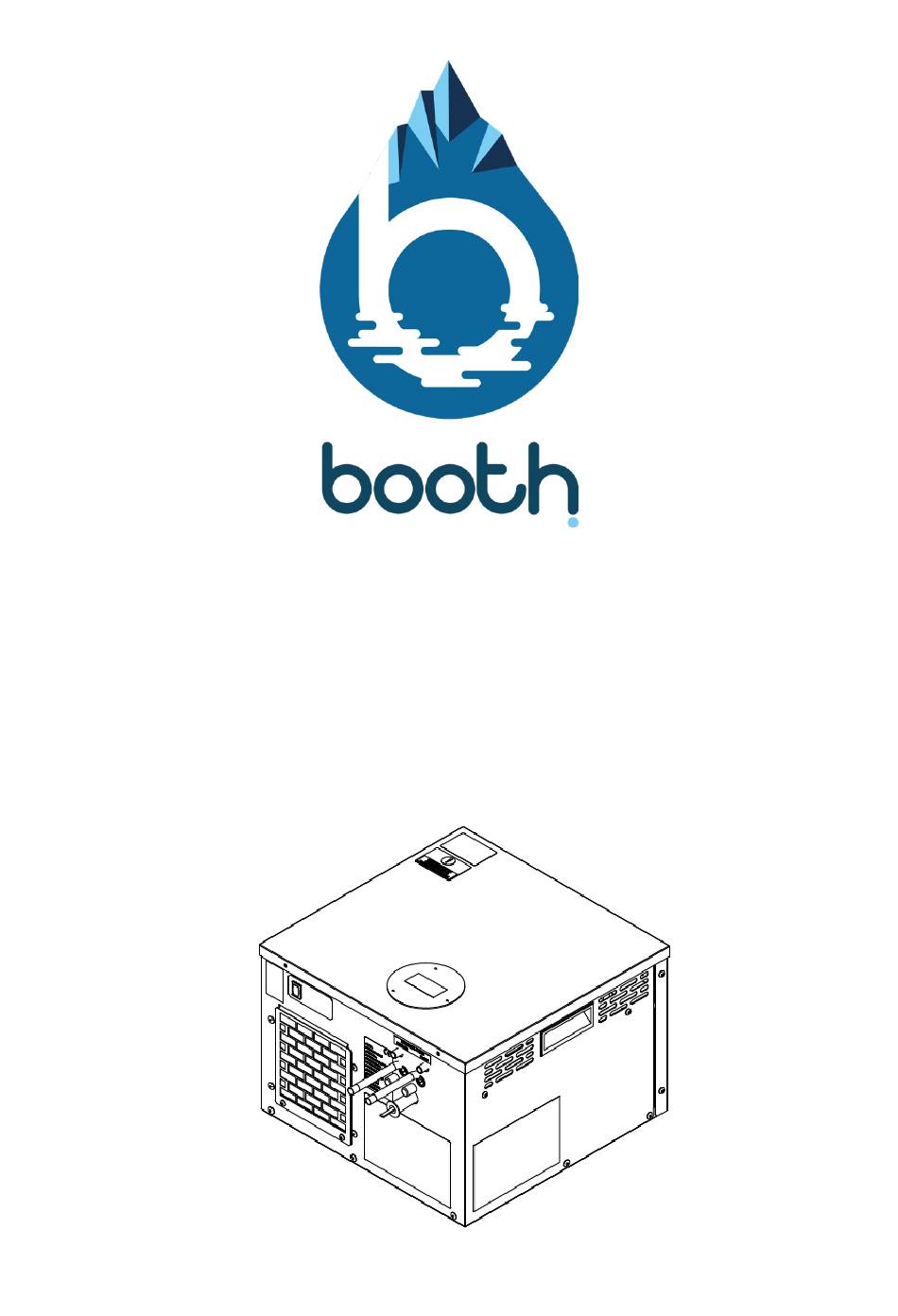

- Page 1 Product Manual BAR1H Shelf Mounted Coolers 3B7489-C...
-
Page 2: Table Of Contents
Model Numbering Convention Introduction The BAR1H is an ice bath cooler designed to provide chilled product for under counter applications. The system can use a bath water recirculation system and python to generate and maintain opti- mum drink temperature at the point of dispense. -
Page 3: Removal, Transport & Disposal
It is illegal to simply scrap a refrigeration unit. Before a unit can be scrapped it must first have the gas removed by a specialist using specialist equipment. Please contact Booth Dispensers Ltd, who will be happy to provide a quotation for disposal. -
Page 4: Specification
Specifications Dimensions 360mm(W) Huyai Cubigel 425mm(D) Compressor NBC30RA 255mm(H) Dry Weight 16.5Kg This product contains Propane Refrigerant gas with a GWP of 3 in a hermetically sealed system. Wet Weight Supply R290 230Vac/50Hz Refrigerant Rated Input 243W Climate Class Rated Current 1.8A Nominal Ice Bank Fuse Rating... -
Page 5: Installation
Installation Installation The unit must be installed by a competent person. If unit is to be free standing, it must be placed on a firm level surface capable of supporting the weight of the machine when the bath is filled. It is important that the ventilation openings in the machine are not blocked to allow the free movement of air. -
Page 6: Model Numbering Convention
Model Numbering Convention Unit number ( BAR1H ) ( X ) ( Y ) ( Z ) Key: BAR1H Base Type Pump Type Control Option No. of Coils/Deck Option Reference (X) Part # Description 1A5176 SPC8/2 Pump Reference (Y) Part #... -
Page 7: Schematics
Schematics BRW1H Eliwell Module Wiring Schematic 3B7489-C... - Page 8 Schematics BRW1H - DXF Module Wiring Schematics 3B7489-C...
- Page 9 Schematics BRW1H - Mechanical Module Wiring Schematics 3B7489-C...
-
Page 10: Fault Finding
Fault Finding Prior to any fault finding, please ensure all connections to the chiller are sound and that the incoming supply is turned on. Ensure that all electrical connections to the chiller and in the chiller are secure and in good condition, the power is on and that the chiller has had adequate time to reach operating temperature. -
Page 11: Replacment Parts
Replacement Parts 3B7489-C... - Page 12 Booth Dispensers Limited, 101 Moor Park Avenue, Blackpool, Lancashire, FY2 0LZ, UK. +44 1253 501800 Website: www.booth-dispensers.co.uk/...
