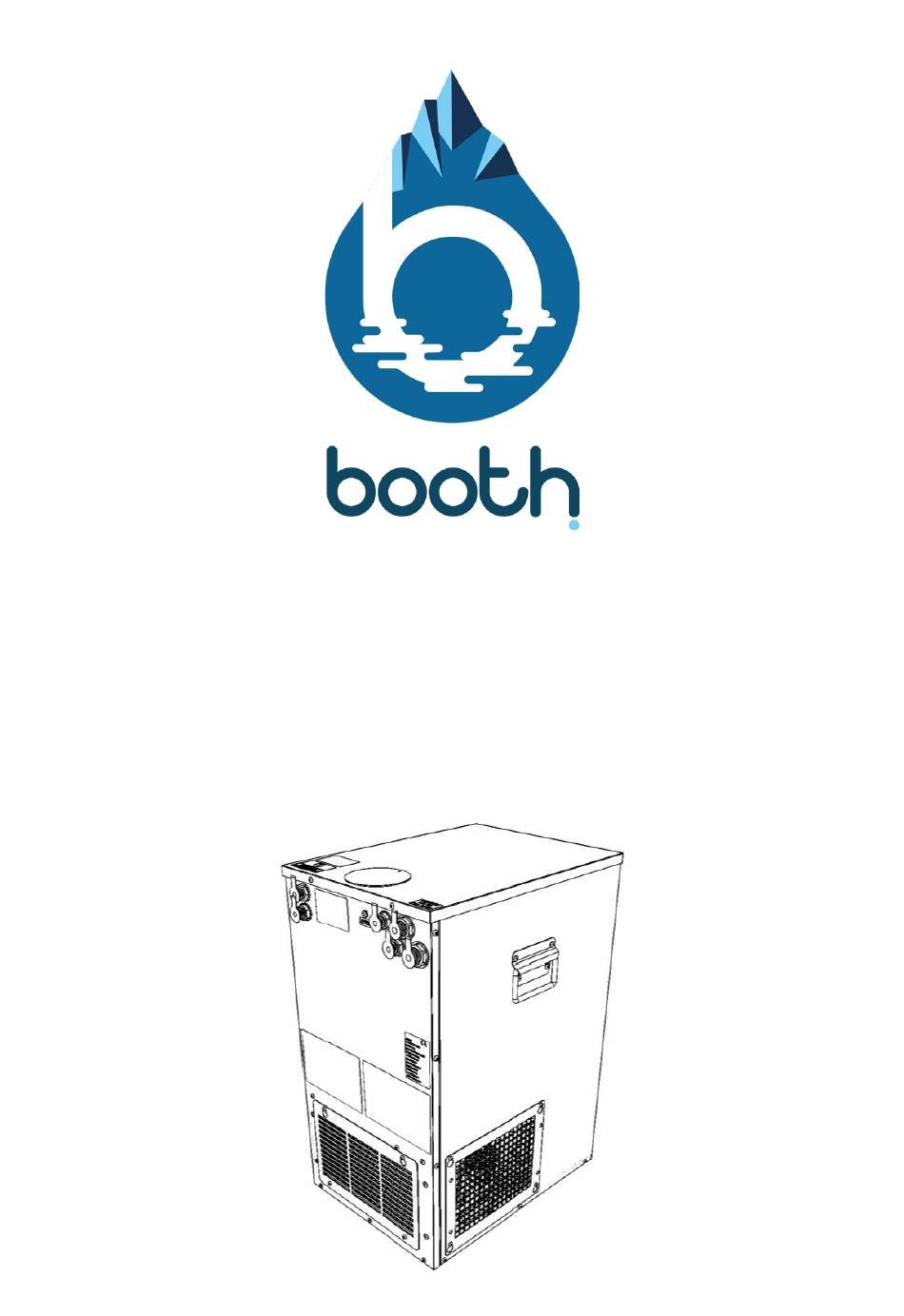

- Page 1 Product Manual EXL700H - Cooler Carbonator EXL710H - Cooler 3B8881-B...
-
Page 2: Table Of Contents
Cleaning Introduction The EXL700H is a high-capacity cold carbonator providing chilled still water and chilled carbonat- ed soda water. The unit also incorporates optional bath water recirculation allowing for a variety of installation options. With an optional ventilation kit, the unit is also designed to operate in an enclosed under counter cabinet. -
Page 3: Removal, Transport & Disposal
It is illegal to simply scrap a refrigeration unit. Before a unit can be scrapped it must first have the gas removed by a specialist using specialist equipment. Please contact Booth Dispensers Ltd, who will be happy to provide a quotation for disposal. -
Page 4: Specification
2.7A Nominal Ice Bank Fuse Rating Internally regulat- Potable Water Inlet Pressure ed to 19psi (1.3 bar) CO2 Pressure Heat Dump Noise Emissions (@1m) EXL700H ONLY Carbonator Can Working MAX Co2 Pressure 1.7Ltr 60 psi (4 bar) Volume Compliance 3B8881-B... -
Page 5: Installation And Commissioning
Installation and Commissioning Installation The unit must be installed by a competent person, on a firm level surface capable of supporting the weight of the machine when the bath is filled. It is important that the ventilation openings in the machine are not blocked to allow the free movement of air. Inadequate ventilation will shorten the life of the fridge system. - Page 6 Note: The time taken for the unit to reach operating temperature will vary depending on ambient temperature, humidity, and the temperature of the incoming water supply. EXL700H Only • Turn on the CO2 supply and set the pressure to 50 psi.
- Page 7 Installation and Commissioning Enclosed Cabinet Installation When used in conjunction with the optional ventilation kit (1A6221) the Unit is designed to be fitted into an enclosed, under counter cabinet. Note: It is essential that this kit be used if the unit is to be fitted into an enclosed com- partment, if not, this will seriously affect the reliability of the fridge and will invalidate the warranty.
- Page 8 Installation and Commissioning Three blanking plates are supplied with the ventilation kit. These must be used in place of the fitted grilles to ensure the airflow is correctly directed and recirculation of hot air does not occur. The grilles which need replacing are shown below. Place the Unit into the cabinet pushing it all the way to rear of the unit and align the left side of the unit to the air inlet grille as shown below.
-
Page 9: Cleaning
Cleaning Important: • The frequency of the following cleaning procedures should be determined locally and may vary depending on machine usage and environmental conditions. • Warm water should be no higher than 45 °C. • After any cleaning procedure, dispense 1 litre of water from each tap to ensure any cleaning residue is flushed out. - Page 10 Cleaning Deep Clean - Parts in contact with food products Important: It is recommended that the deep clean procedure be performed at least monthly. Remove dispense components, pre clean using a damp multi-purpose disposable cleaning cloth soaked in warm water. Soak cloth in cleaning agent solution, remove excess water and clean dispense components.
- Page 11 Recommission the Unit Refer to the Installation and Commissioning section of this Manual (Page 4) Draw off at least 1 litre of still water (For EXL700H Only - Draw off at least 1 litre of carbonat- ed water.) to ensure correct flow.
-
Page 12: Schematics
Schematics - Electrical Circuits 3B8881-B... - Page 13 Schematics - Water Circuits 3B8881-B...
-
Page 14: Fault Finding
Fault Finding Prior to any fault finding, please ensure all water connections to the chiller are sound and that the incoming water supply is turned on. Also ensure that all electrical connections to the chiller and in the chiller are secure and in good condition, the power is on, and that the chiller has had adequate time to reach operating temperature. - Page 15 Fault Finding Possible Cause Corrective Action Symptom No CO2 pressure, Check CO2 bottle, regulator and non- return valve. Sup- check by operating ply pressure should be 50 psi (3.4 bar), adjust or replace pressure relief valve as necessary. on carbonator can Check carbonator probe for possible short circuit to ground.
-
Page 16: Replacment Parts
Replacement Parts 3B8881-B... -
Page 17: Notes
Notes 3B8881-B... - Page 18 Notes 3B8881-B...
- Page 19 Page Left Intentionally Blank 3B8881-B...
- Page 20 Booth Dispensers Limited, 101 Moor Park Avenue, Blackpool, Lancashire, FY2 0LZ, UK. +44 1253 501800 Website: www.booth-dispensers.co.uk/...
