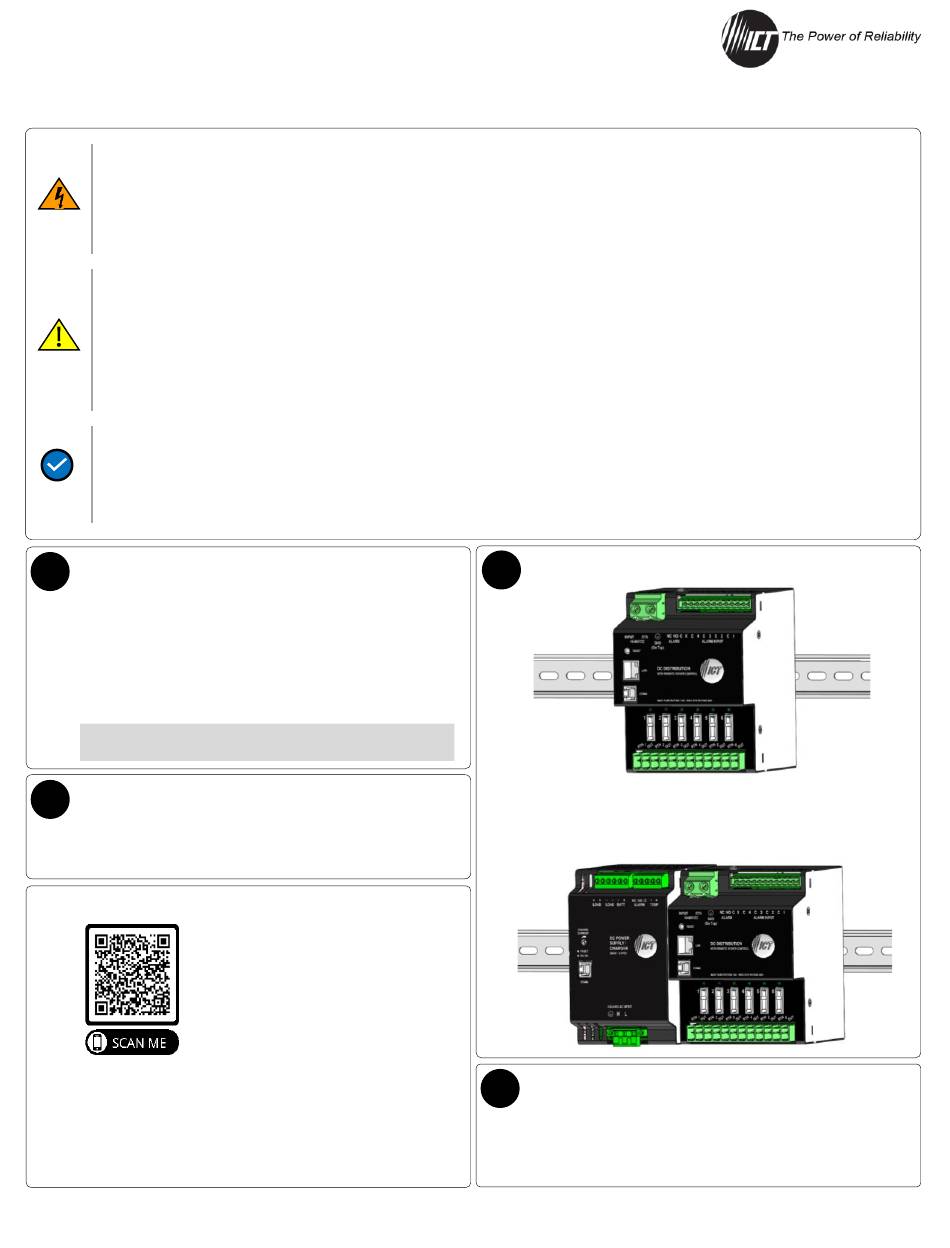

ICT DIN Series Quick Start Manual

ICT DIN Series
Power Distribution Unit
Quick Start Guide
Risk of serious personal injury or damage to equipment and property. Always observe the following:
•
Installation must be done by qualified technicians.
•
Shut off or disconnect all DC power sources before connecting or disconnecting wiring.
•
Carefully observe wiring polarity when making input and output connections.
WARNING
•
Securely tighten all connections.
•
Do not attempt to service any internal parts. Refer all product service to an authorized ICT Ltd. service facility.
Risk of personal injury or damage to equipment and property. Always observe the following:
•
Use wire and connectors rated for the maximum load current and size of fuse or circuit breaker in accordance with NEC
Section 210.20(A) and keep cable lengths as short as practical.
•
Do not energize the unit before the chassis ground is connected.
•
DC-AC Inverters should not be connected to the outputs of the distribution unit.
CAUTION
•
Unit may be hot to touch. Disconnect power and allow to cool before disconnecting wires, removing or replacing fuse.
•
Ensure continuous load current through each output channel does not exceed 80% of the maximum output ratings in
accordance with NEC Section 210.20(A).
Risk of damage to equipment, environmental hazards, loss of data and other undesirable consequences. Always
observe the following:
•
Third-party surge suppression devices must be utilized to protect every exposed DC power conductor and data cables.
These protection devices must be installed at both ends of the exposed conductor, in close proximity to installed
NOTICE
equipment.
1 UNPACK AND INSPECT
•
Power distribution unit
•
Instruction Manual (USB drive)
•
Bags containing the following:
o
Two removable 6-pin DC output wire clamp
connectors
o
One removable 12-pin alarm wire clamp
connector
NOTE: In case of shipping damage, your freight carrier
should be notified immediately.
PREPARE THE TOOLS AND PARTS NEEDED
2
•
1/8-inch slotted screwdriver
•
Wire stripper
•
Fuses
Scan the QR code to download
the Instruction Manual.
INNOVATIVE CIRCUIT TECHNOLOGY LTD.
26921 Gloucester Way
Langley, British Columbia, Canada V4W 3Y3
www.ict-power.com
855-353-900 Rev1.01 For additional support call: +1 877.930.0717 ext. 810 (toll-free in N. America) or +1 604.856.6303
MOUNT THE UNIT ON A STANDARD TS35 (EN 50022)
3
Mount the DIN Series Power Supply and the DIN Series Power
Distribution Unit side by side on a standard TS35 (if using the
ICT DIN Series Power Supply).
CONNECT THE CHASSIS GROUND
4
Connect the chassis ground according to the site design,
and in accordance with the local electrical code
standards. Use a ground bonding wire that is rated to
handle the maximum current rating of the unit.
Page 1 of 2
