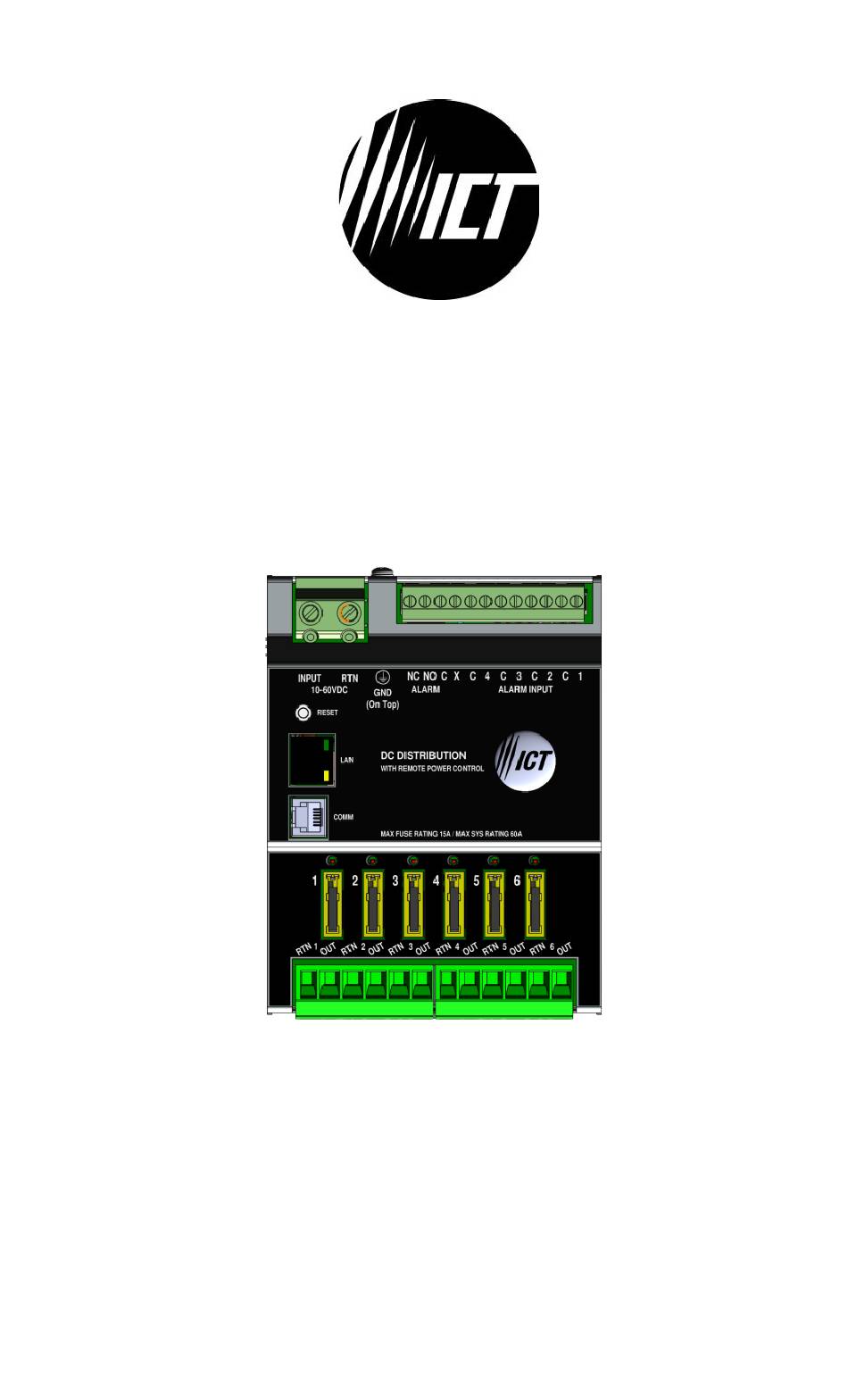

- Page 1 Innovative Circuit Technology Ltd. ICT DIN SERIES POWER DISTRIBUTION UNIT INSTRUCTION MANUAL 855-353-000 Model: ICT-DIN-PDU6...
- Page 2 • Securely tighten all connections • Do not attempt to service any internal parts. Refer all product service to an authorized ICT Ltd. service facility CAUTION Risk of personal injury or damage to equipment! Always observe the following: • Fuses may be HOT to touch. Disconnect power and allow to cool before removing or replacing •...
-
Page 3: Table Of Contents
Contents PRODUCT DESCRIPTION ............... 4 INSTALLATION ..................5 WIRING ....................8 TCP/IP WEB BASED INTERFACE ............. 8 Status & Control ................... 10 Alarm Status ..................10 Power Supply ..................10 Device Setup ..................11 Output Setup ..................13 Network Setup ..................15 E-mail Setup .................. -
Page 4: Product Description
PRODUCT DESCRIPTION The ICT Intelligent DIN Power Distribution Unit (PDU) is designed to provide DC power distribution to 6 individual outputs protected by GMT type fuses that are rated up to 15A each. DC outputs can be turned on and off remotely, allowing connected loads to be power-cycled through the Ethernet connection. -
Page 5: Installation
Ethernet port on the front of the Unit. The recommended cable for Ethernet connection is Cat5e UTP network cable. 5. If the PDU is used in combination with an ICT DIN Power Supply, the serial data cable can be installed to allow the PDU to monitor the status of the power... - Page 6 RJ-11 COMM ports together using the data cable, as shown in Figure 3. Figure 3. Connection between ICT DIN Power supply and ICT-DIN-PDU6 6. The Alarm Form “C” contacts on the back of the PDU can be connected to an external alarm circuit to monitor alarms generated by the PDU.
- Page 7 NC/C PINS NO/C PINS CONDITION Fuse Alarm • Activate Alarm Form C Contact is checked • One or more blown or missing fuse System Under - Voltage Alarm • Activate Alarm Form C Contact is checked • System Voltage is below the set value System Over - Voltage Alarm •...
-
Page 8: Wiring
If the PDU is connected to a network with a DHCP server, the PDU will be assigned an IP address automatically. To find the current address of your PDU, run the ICT IP Address Discovery tool, after installing it on your Windows computer (tool available for download from ICT http://www.ictcorporate.com/resources/tools/... - Page 9 Once your browser is connected to the unit, the Status & Control page for the PDU will be displayed, as shown in figure 4. See the following section for descriptions on how to use the various monitoring, configuration, and control features available through the PDU’s graphical web interface.
-
Page 10: Status & Control
Output On/Off Buttons: Pressing these buttons will enable or disable DC power to individual outputs. If the COMM port on the PDU is connected to an ICT DIN Power Supply, this page will also display Power Supply status information including output voltage, output current, alarm status, battery voltage, battery current, battery temperature, and LVD status. -
Page 11: Device Setup
Output Voltage Control Output Voltage: Set the DC output voltage of the ICT DIN Power supply. Set this to match the float voltage requirement for your external battery. Temperature Coefficient/cell: Automatically adjust the output voltage of the power supply according to the battery temperature. Configure this setting to match the battery manufacturers recommended compensation value in –mV/°C per cell. - Page 12 Date and Time Settings Current System Time: Displays the date and time used in the PDU’s internal clock for time stamping data entries in the data logs. This clock may be set manually, or synchronized with a remote NTP Time Server over the Internet (recommended).
-
Page 13: Output Setup
is useful for re-booting a modem or other network device that is powered by one of the PDU outputs, to help recover the network IP connection when one of these devices has crashed. A delay time must be entered in the Sequence/Cycle Delay field for this function to work. - Page 14 configure. To save any changes to the output settings, click on Save Settings at the bottom of this page. To copy the configuration settings from one output to all of the other outputs, click on Copy Settings to All, and then click on Save Settings to save the new settings.
-
Page 15: Network Setup
Load-Shedding Auto Recovery: Check this box to allow the output to be automatically reconnected when the system voltage is above the Auto Recovery Threshold for at least 60s. The output must be manually re- enabled using the Output ON button on the Status & Control page if the Auto Recovery function is not enabled. - Page 16 Enable DHCP: Turn on this setting if your network uses a DHCP server to automatically assign IP addresses. (Enabled as default setting). To manually assign a static IP address to the unit uncheck this box, then set the following parameters. IP Address: Specify a unique IP address for the unit.
- Page 17 • Full Device Control: Allow SNMP clients to set all device settings through SNMP. MIB files for full SNMP device control can be downloaded from the ICT Website: https://www.ict-power.com/tools-utilities/ SNMP Contact Information: Assign contact information, such as an operator name and phone number for the PDU, which can be read via SNMP queries. (This...
- Page 18 SNMPv3 Settings: User Name: Enter the user name for SNMPv3 access. Authentication Protocol: Select the SNMPv3 authentication protocol (None, MD5, or SHA). Authentication Password: If an authentication protocol is selected, enter the authentication password. Privacy Protocol: Select the SNMPv3 privacy protocol (None, or AES). Privacy Password: If a privacy protocol is selected, enter the privacy password.
-
Page 19: E-Mail Setup
E-mail Setup Configure these settings to enable automatic e-mail notifications directly from the PDU. The information required for this is available from your Network Administrator, or Internet Service Provider. (ISP) E-mail: SMTP Server: Enter the name or the IP address of your SMTP server used for sending outgoing e-mail. -
Page 20: Alarm Setup
Load-Shedding is activated: Check this box to receive an e-mail notification when any of the outputs are disabled or enabled due the voltage crossing one of the load-shed settings configured on the Output Setup page. The Network Watchdog triggers: Check this box to receive an e-mail notification after the Network Watchdog triggers due to a loss of the network connection and the network has comes back online. -
Page 21: User Setup
Send E-mail: Checking this box will cause the unit to send a System Over- Voltage alarm e-mail to the assigned address entered on the E-mail Setup page. System Over-Current Alarm: Over-Current Threshold: Enter the maximum total current level for the system. -
Page 22: Maintenance
causing loss of all other user settings. See the Password Reset section for more details. Select a User to Edit: Choose which of the user accounts to edit. Set the access level to be appropriate for the amount of control each user requires. Administrator: This level has full access to the PDU settings, and can set up users and change passwords (“admin”... -
Page 23: Mobile Web App
Update Firmware: Click this button to locate and install the latest version of the unit’s operating firmware, while maintaining previous settings. Download the latest firmware file for your model unit from the ICT website (ict-power.com). De-compress this file then press the Choose File button, and link to this file. -
Page 24: Password Reset
The Mobile Web App (shown above) provides information on system voltage, system current, input alarm status, and the status and current level of each of the output channels. Tapping on an output cell will enable or disable that output. (if logged in using an account with control access) The cell will be green when enabled, red when disabled. - Page 25 Enter the HTTP port number that the PDU is using in the Start and End fields. The default HTTP port for the PDU is 80. Select Both under Protocol (TCP and UDP) Enter the local IP address of the PDU (e.g. 192.168.0.180) in the IP address field.
-
Page 26: Text Message Alarm Notifications
When using a dynamic IP address the router’s WAN IP address may change from time to time without warning, depending on your ISP. In this case you should obtain a Static IP address from your ISP (it will not change) which will ensure more predictable access to the PDU from a remote location. -
Page 27: Troubleshooting
I am unable to access the web-based configuration utility: • Check that you are using the correct IP address for the PDU by downloading and running the ICT IP Address Discovery tool http://www.ictcorporate.com/resources/tools/ • Check the network cable connections to the PDU and the network •... - Page 28 • If your SMTP server requires SSL encryption, ensure the SMTP Server requires SSL checkbox is ticked. Otherwise leave blank. • If your SMTP server requires authentication, ensure that the SMTP User Name and SMTP Password fields are correctly entered. PRODUCT SPECIFICATIONS Operating Voltage: 10VDC to 60VDC...
- Page 29 Warranty: 2 years Dimensions (L x W x H): 4.4” x 5.3” x 5.7” 111mm x 134mm x 144mm Figure 8: Mechanical Dimensions Innovative Circuit Technology Ltd.
- Page 30 The Purchaser shall at their own risk and cost return the defective product to ICT’s factory or designated repair center once an RMA is issued by ICT. Return of the products to the customer after repair is completed shall be prepaid by ICT unless otherwise mutually agreed between the parties.
