R&G FI0080BK Fitting Instructions

FITTING INSTRUCTIONS FOR FI0080BK FRAME INSERT
KAWASAKI Z800 2013 RIGHT HAND SIDE
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt –
FITTING INSTRUCTIONS

Fit the counter sunk headed bolt through frame insert so head sits in counter-sink.

Place special nut on exposed end of bolt so tapered face goes into tapered recess.

Tighten bolt until tapered portion of nut just contacts tapered face of plastic frame insert.


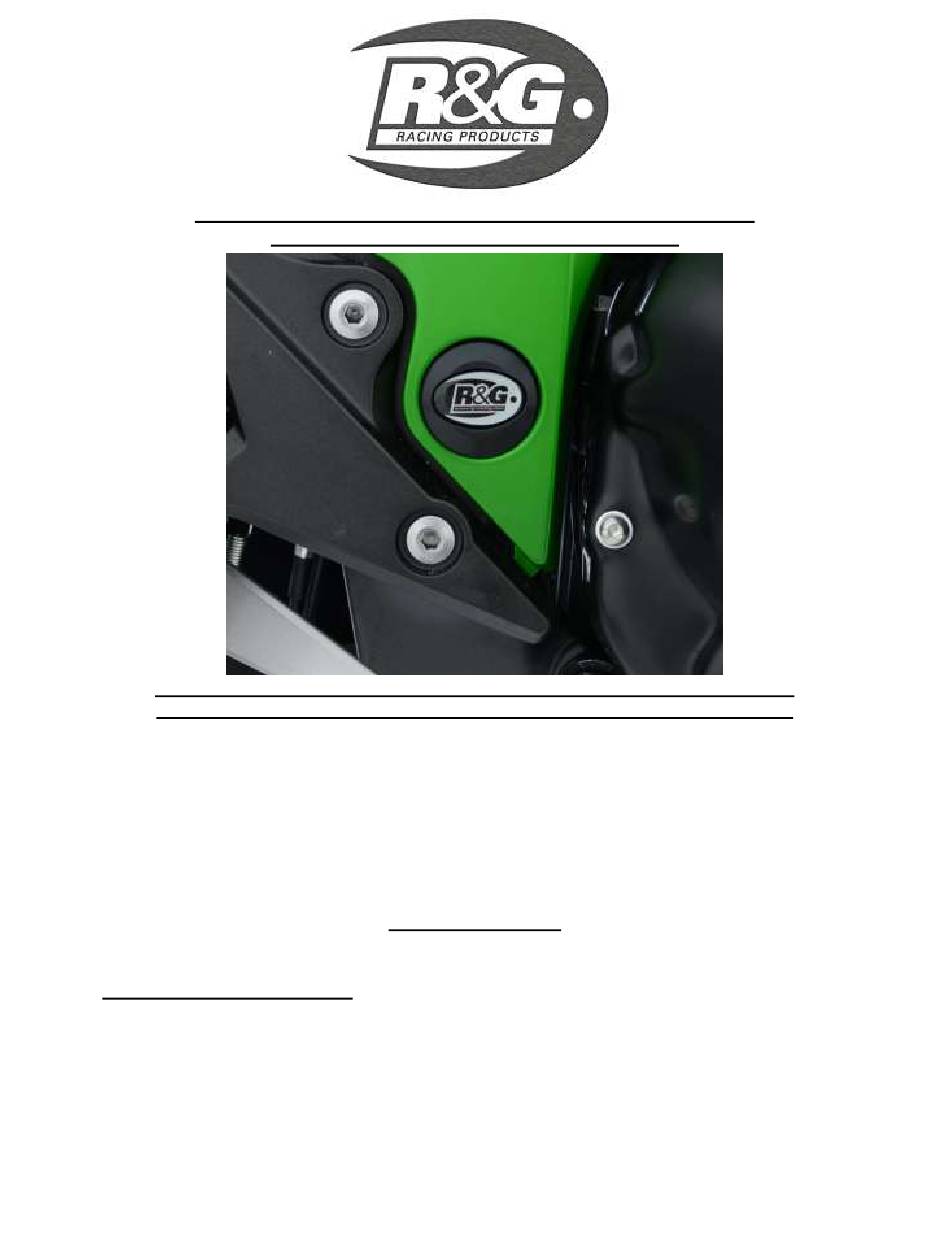

Place the assembly into the position shown above with recess horizontal as shown above.

Tighten bolt so frame insert is held in position firmly (do not over tighten).

Place bubble sticker as shown above.
Unit 1, Shelleys Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0) 1420 89007 | Fax : +44 (0) 1420 87301 | Email: info@rg-racing.com
mounting to the bike
the rubber washers should be thrown away!
TOOLS REQUIRED

3mm metric Allen key.
R&G Racing
(
FOR CLARITY OF INSTRUCTIONS ONLY
)
