R&G FI0078BK Fitting Instructions

Frame insert mv agusta f3 675/800 '12-, brutale 675/800 '12- & rivale 800 '14- upper left & right trellis

FITTING INSTRUCTIONS FOR FI0078BK FRAME INSERT

MV AGUSTA F3 675/800 '12-, BRUTALE 675/800 '12- & RIVALE 800 '14-

THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.

DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.

Please note that the way the kit is packed does not necessarily represent the way of

HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY

Please note that in cases where kits are packed with rubber washers holding the components onto the bolt –

FITTING INSTRUCTIONS



Fit button head bolt through frame insert so head sits in counter-bore.



Place special nut on exposed end of bolt so tapered face goes into tapered slot.



Tighten bolt until tapered portion of nut just contacts tapered face of plastic frame insert.

Unit 1, Shelleys Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0) 1420 89007 | Fax : +44 (0) 1420 87301 | Email: info@rg-racing.com

UPPER LEFT & RIGHT TRELLIS

mounting to the bike

the rubber washers should be thrown away!

TOOLS REQUIRED



3mm metric Allen key.

R&G Racing

(

FOR CLARITY OF INSTRUCTIONS ONLY

)

Table of Contents

Do you have a question about the FI0078BK and is the answer not in the manual?

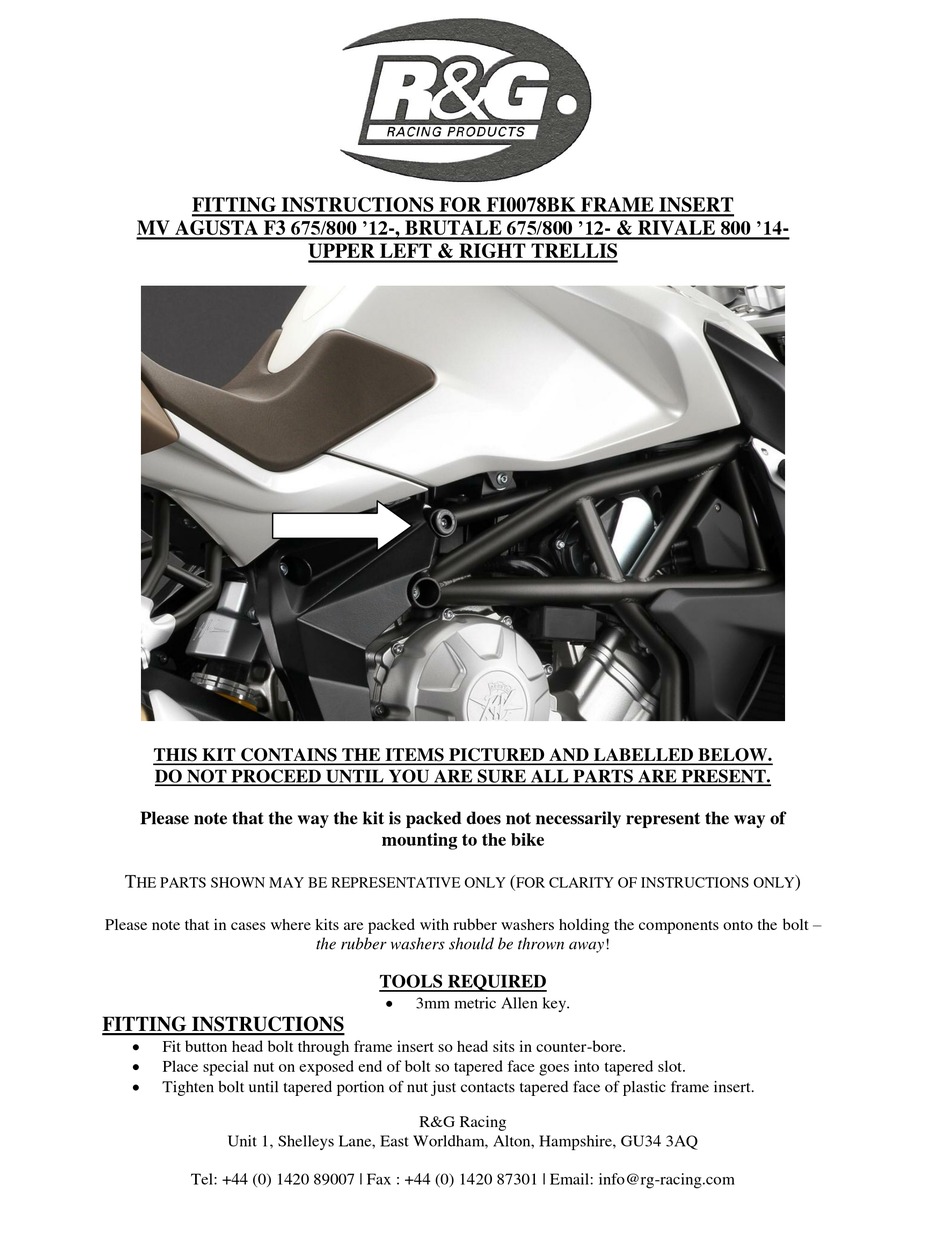

Page 1 FITTING INSTRUCTIONS FOR FI0078BK FRAME INSERT MV AGUSTA F3 675/800 ’12-, BRUTALE 675/800 ’12- & RIVALE 800 ’14- UPPER LEFT & RIGHT TRELLIS THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Page 2  Place the assembly into frame recess in position shown above with recess horizontal as shown above.  Tighten bolt so frame insert is held in position firmly (do not over tighten).  Push fit cap in centre as shown above. ...
Page 3 Instructions de montage pour FI0078BK Insert de cadre MV AGUSTA F3 675/800 ’12-, BRUTALE 675/800 ’12- & RIVALE 800 ’14- En haut à gauche & Trellis droit Le kit contient les articles exposés ci-dessous, vérifier que toutes les pièces soient présentes avant de procéder au montage.
Page 4  Placer l’écrou spécial sur l’extrémité du boulon de façon à ce que la face conique aille dans le support conique.  Serrer le boulon jusqu’à ce que la partie conique de l’écrou soit en contact avec la face conique de l’insert de cadre.
