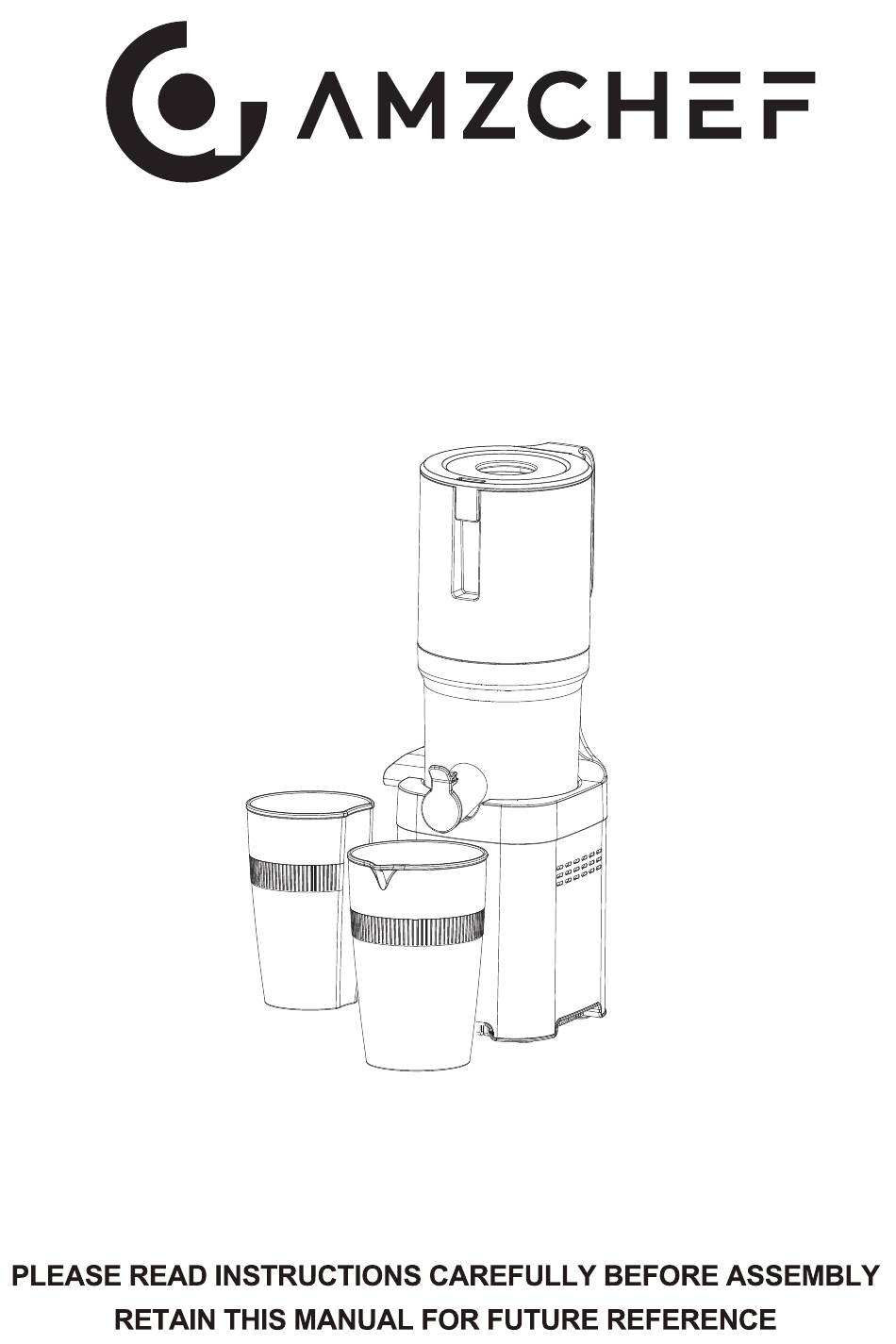

- Page 1 Instruction Manual Slow Juicer Brand:amzchef Model:ZM1902B 120V~ 60Hz 200W...
- Page 2 CONTENT Chapter I. Precautions for Safe Use Chapter II. Parts and Functions Chapter III. Assembly and Disassembly Methods Chapter IV. Methods of Operation Chapter V. Ingredient Selection and Handling Tips Chapter VI. Cleaning Guidelines and Maintenance Chapter VII. Troubleshooting Chapter VIII. Safety Indexes Chapter IX.
- Page 3 Chapter I. Precautions for Safe Use All users of this appliance must read and understand these safety precau- tions before operating. SIGN SAMPLES �. DO NOT PLUG IN OR UNPLUG WITH WET HANDS. �.DO NOT USE WITH OTHER THAN RATED VOLTAGE. �.
- Page 4 �. DO NOT MOISTEN THE BASE OR SPLASH WATER ON THE BASE. �. WHEN THE POWER CORD, WIRE IS BROKEN OR DAMAGED OR THE PLUG-IN. PART BECOMES LOOSE, DO NOT OPERATE IT. �. ALWAYS USE AN OUTLET WITH A GROUND CONNECTION. To be safe, always use an outlet with a ground connection, but never ground on gas lines, plastic water pipes, telephone lines, etc.
- Page 5 1. Before use, please check if the power cord, the plug, the juice strainer, the spiral pusher and any other part is damaged. If any of the said part is damaged, stop using the appliance and contact our customer service department promptly. Do not dismantle and repair it by yourself, otherwise dangers may happen.
- Page 6 Chapter II. Parts and Functions Component Function Description Name One of the main parts of juicing, vegetables or fruits are added from the feeding container at the top, while juice ① Juicing Bowl and pulp are discharged by the filter. ②...
- Page 7 Chapter III. Assembly and Disassembly Methods �. Assembly Guide Before using the product, clean the auger, juice cup, and � other accessories thoroughly. Put the juice bowl onto the base as shown in the picture. � Install the auger into the juice bowl according to the �...
- Page 8 Plug the power cord, and then press the "ON" button. It � starts to work and can extract delicious vegetable and fruit juice. When squeezing juice, you can turn up the feeding cover, and put some small and medium-sized apples or �...
- Page 9 �. Disassembly Guide � Pull the juice bowl off from the base. As shown in the picture, rotate the feeding container � counterclockwise and pull it off, then remove it from the juice bowl. Pull the auger off from the juice bowl. �...
- Page 10 Chapter IV. Methods of Operation Power on “ON” Power off “OFF” Reverse mastication (For solving ingredient clogging “R” problems) Chapter V. Ingredient Selection and Handing Tips 1. How to choose ingredients? • Please avoid foods that you are allergic to. •...
- Page 11 Note: When juicing soft fruits and vegetables (such as grapes, kiwi, tomato, etc.), due to the high juice content, it is easy to cause the juice to stay in the drum. This is a normal phenomenon. At this time, the feeding speed should be slowed down until the juice flows out.
- Page 12 Do not immerse the motor base in water or other liquids. 2. Tips for maintenance • After cleaning the accessories, let dry completely then assemble and place in a cool and dry place. • The machine needs to rest every 10 minutes to protect the motor. •...
- Page 13 Chapter VIII. Safety Indexes Model ZM1902B Rated Voltage 120V Rated Power 200W 60Hz Rated Frequency ≤10 minutes Continuous Operating Time Interval Time ≥10 minutes Screw Running Speed 90-110 rpm 4.72inch 120mm 1.69inch 43mm 16.33inch 415mm 7.08inch 5.78inch 180mm 147mm www.iamzchef.com Email: info01@iamzchef.com Whatsapp:+1（838）910 8317 Facebook: amzchefappliance...
- Page 14 www.iamzchef.com Email: info01@iamzchef.com Whatsapp:+1（838）910 8317 Facebook: amzchefappliance...
