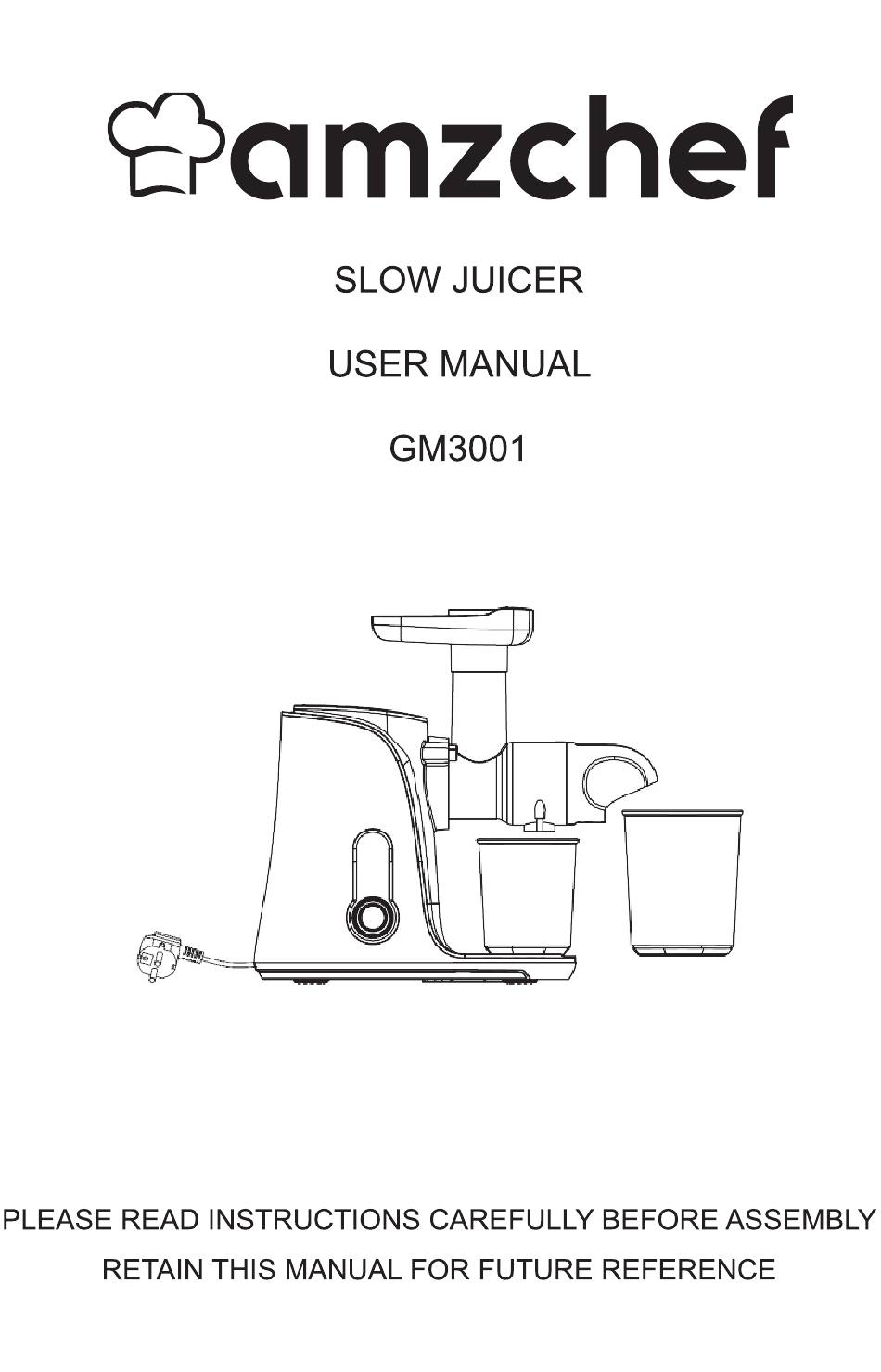

Summary of Contents for amzchef GM3001
-
Page 2: Table Of Contents
Section 1 Precautions for Safety Use. Section 2. Operating Instructions Section 3. Quick Start Assembly Section 4. Installation Notes Section 5. Tips for Ingredients Selection Section 6. Maintenance Section 7. Only Hand Wash & Easy Cleaning Section 8. Safety Index Section 9.Warranty Section 10. -
Page 3: Section 1 Precautions For Safety Use
Section I. Precautions for Safety Use All users of this appliance must read and understand these safety precau- tions before operating. SIGN SAMPLES This sign indicates contents that may cause risk of a fire or an electrical shock. Specific warnings are written in the sign. This sign indicates contents of regulating or directing actions. - Page 4 6.DO NOT MOISTEN THE BASE OR SPLASH WATER ON THE BASE. Be careful not to let any liquids or other substances get into the switch on the appliance. DO NOT OPERATE THE SWITCH WITH WET HANDS.It may cause electric shock or a fire. 7.WHEN THE POWER CORD, WIRE IS BROKEN OR DAMAGED OR THE PLUG-IN.PART BECOMES LOOSE, DO NOT OPERATE IT.
- Page 5 14.CAUTION 1. Before use, please check if the power cord, the plug, the juice strainer, the spiral pusher and any other part is damaged. If any of the said part is damaged, stop using the appliance and contact our customer service department promptly. Do not dismantle and repair it by yourself, otherwise dangers may happen.
-
Page 6: Section 2. Operating Instructions
Section 2. Operating Instructions JUICING FUNCTION 1.Choose the proper mode that you need to start juicing. • STOP: When the machine is plugged in, it will in the standby mode and at this time the "STOP" LED light is on. When finish juicing, planse rotate the power switch in anticlockwise direction until you see the "STOP"... - Page 7 3.Gradually put the ingredients into the hopper chute and press down with the pusher.Press [ON] button on the back of the Amzchef Juicer to start. Note:DO NOT place any metal objects into,Press "ON" button to resume normal operation.
-
Page 8: Section 3. Quick Start Assembly
Section 3. Quick Start Assembly 1.Power Cable 8.Hopper 2.Motor Base 9.Feed chute 3.On-Off Switch 10.Drum 4.Locking Button 11.Auger 5.Juice container 12.Juicer Screen 6.Pulp Container 13.End Cap 7.Food Pusher 14.Wrench... - Page 9 1.Place the food pusher(7) onto the feeder chute（9） 2.Place the hopper (8) onto the feeder chute（9） 3.Install the strainer drum (10) to the motor base (2) 4.Push and rotate anticlockwise 5.Push the auger (11) into the drum (10) 6.Insert the juicer screen (12) 7.Place the end cap (13) and screw it anticlockwise 8.Place the juice container (5) under the drum (10) 9.Place the pulp container (6) under the end cap (13)
-
Page 10: Section 4. Installation Notes
Section 4. Installation Notes Insert the drum, press locking button and rotate anticlockwise until aligning“▼” on drum with “ ” on the Motor base. (You will hear "Tick” sound to confirm fasten it tightly and correctly). Insert the end cap ,rotate anticlockwise until aligning“▼”... -
Page 11: Section 5. Tips For Ingredients Selection
Section 5. Tips for Ingredients Selection... -
Page 12: Section 6. Maintenance
Section 6. Maintenance... -
Page 14: Section 7. Only Hand Wash & Easy Cleaning
Section 7. Only Hand Wash & Easy Cleaning 1.HANDWASH OPTION： You can thoroughly wash parts by immersing in warm water diluted with one or two drops of baking soda or dishwashing soap for about 30 minutes. 2.NOT DISHWASHER SAFE： After using the juicer, remember not to put the relevant attachments of the juicer into the dishwasher for cleaning, because washing in the dishwasher will cause damage to the relevant attachments and cause... -
Page 15: Section 8. Safety Index
Section 8. Safety Index PRODUCT NAME: SLOW JUICER MODEL: GM3001 RATED VOLTAGE: 120V~ RATED POWER: 150W RATED FREQUENCY: 60Hz CONTINUOUS OPERATING TIME: ≤10 minutes INTERVAL TIME: ≥10 minutes SPEED: 90-110rpm/min LOAD: carrot,apple 2.05inch 5.20cm 13.5inch 34.3cm 6.02inch 15.3cm 14.88inch 37.8cm In addition to the product, the manual also provides a way to obtain the manual on the website, the specific website is: www. -
Page 17: Section 10. Troubleshooting
Section 10. Troubleshooting Please troubleshoot using the details below before contacting AMZHCEF Customer Service for repair or service. When contacting amzchef for after-sales service, please have the manufacturer’s serial number or bar code available. The Appliance Does Not Work • Make sure the power cord is plugged in correctly. - Page 18 • Refer to the section “If the Auger Stops Working” and follow the guideline for the [Rev] button. • If the appliance still does not work, please contact AMZCHEF Customer Service for additional support. Fine Lines or Scratch Marks around the Auger •...
