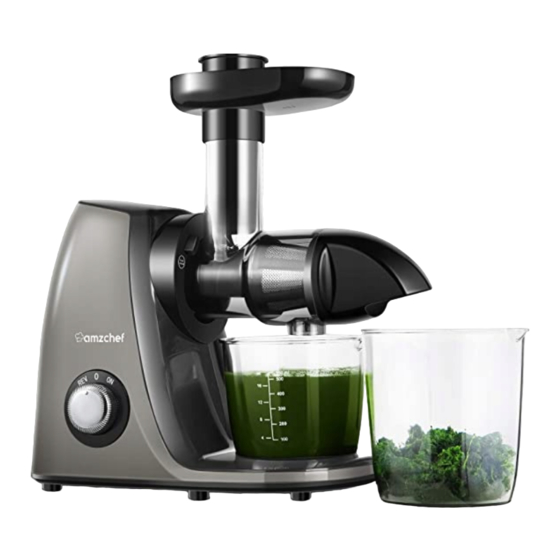

amzchef JS3005-1 Instruction Manual

Slow juicer
Hide thumbs
Table of Contents

Advertisement

Quick Links

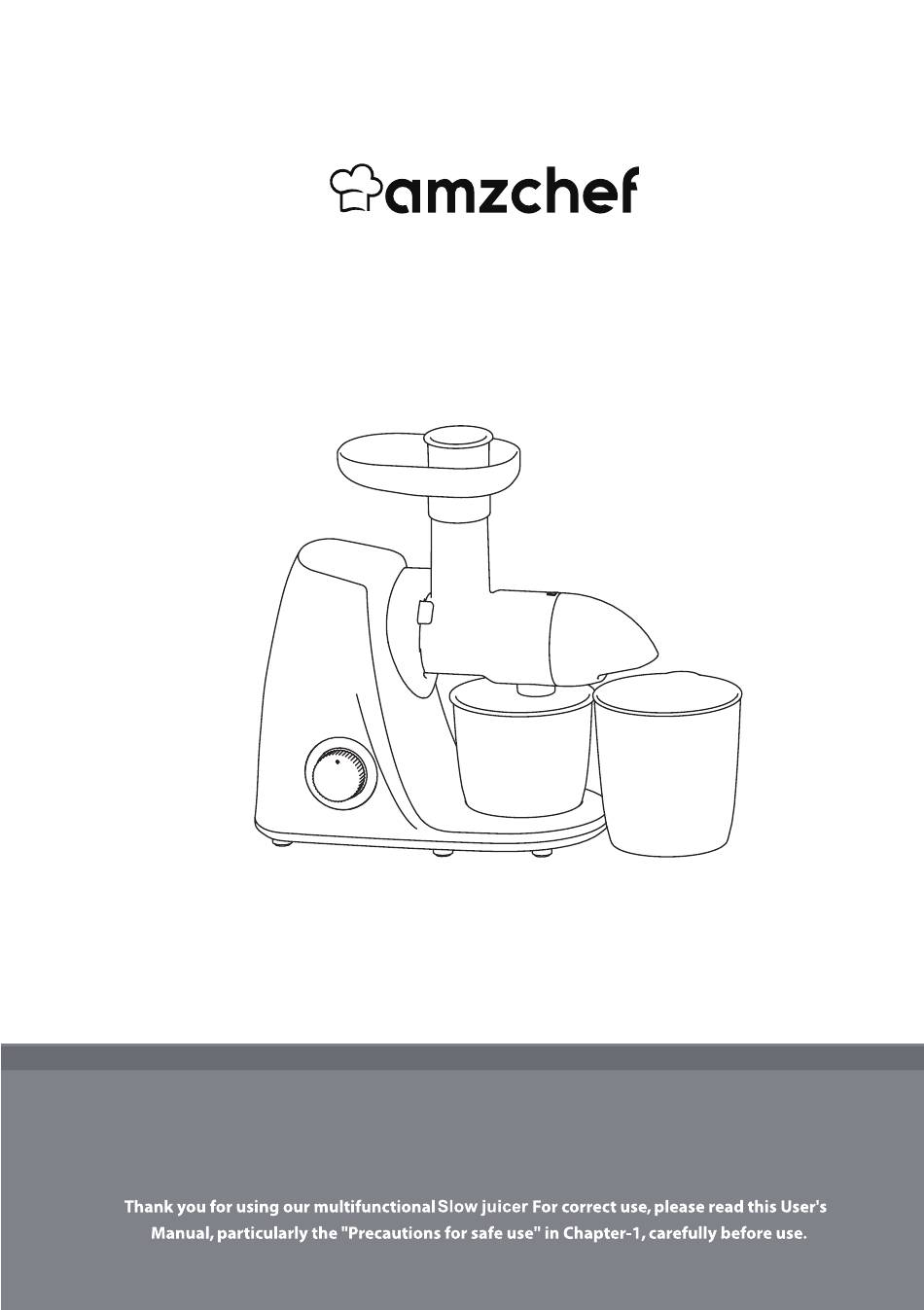

INSTRUCTION MANUAL
SLOW JUICER
MODEL: JS3005-1
120V 60Hz 150W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JS3005-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for amzchef JS3005-1

Summary of Contents for amzchef JS3005-1

  • Page 1 INSTRUCTION MANUAL SLOW JUICER MODEL: JS3005-1 120V 60Hz 150W...

  • Page 2: Table Of Contents

    Contents Section I. P r e c a u t i o n s f o r S a f e t y U s e ........ 3 Section II. Parts and Functions ..........5 Section III. Method of Operation ......... 7 Section IV.

  • Page 3: Section I. P R E C A U T Io N S Fo R S Af E T Y U S E

    Section I. P r e c a u t io n s fo r S af e t y U s e When using electrical appliances, basic safety precautions should always be followed, including the following: Power of 120V~60Hz shall be supplied to this product. Please confirm your power supply before use.
  • Page 4 edibility and does no harm to health. This product is equipped with intelligent protection chips, making it stop automatically for every 20 minutes' operation. And in such case, rest it for 20-30 minutes before restarting it, so as to cool the motor down and prolong product servicelife.

  • Page 5: Section Ii. Parts And Functions

    Section II. Parts and Functions...
  • Page 6 Component Name Function Description Power Cable For connection to power supply. The main unit containing motor and other Housing components,providing power output. For control of product operation,such as On-Off Switch forward/backward rotation and close-down. For locking of extract or to prevent unexpected Locking Button release out of the housing.To unload the extractor of the housing, press down and hold this button.

  • Page 7: Section Iii. Method Of Operation

    Section III. Method of Operation Prior to first use,Please thoroughly clean any parts in contact with food material. (See Section IV. Maintenance for more details) Operation instructions of power switch (gear): “OFF” state: close, stop gear “Soft”low gear for normal operation (Suitable for squeezing soft fruits like oranges, grapes, water- melon, cherry tomatoes) “Hard”state:high gear for normal operation...

  • Page 8: Section Iv. How To Assemble

    Section IV. How to assemble Connect Drum with Housing : Connect the Drum with the Housing by aligning the“ ” on Feed chute with “ ” on the Housing, push the Drum hard and rotate the Drum anticlockwise until aligning “ ”on Feed (You will hear chute with “...
  • Page 9 Place the end cap onto the drum and rotate the cap counter- clockwise. Place Juice Cup and Pomace Container under thedrum set. Mount tray onto the upper end of Feed chute. Connect to power supply and get ready for start up.
  • Page 10 Place the few pieces of cut fruit or vegetables into the Feed chute, push them down the drum gently with plunger. Properamountofforce shallbeused topushthe food material in, not excessive but sufficient to have it cut off exactly. (Donot put your finger or any other object into the Feed chute! If the Pomace/Juice Cup is full, disconnect the power supply and clear it up before restart.

  • Page 11: Section V.tips For Ingredients Selection

    Section V. Tips for Ingredients Selection FRUIT JUICE EXTACTOR Efficiently juices hard and soft fruits: even citrus fruits, usually one of the hardest fruits to juice. Jam can not be achieved, some fruit can not squeeze juice (such as bananas, mangoes, dried fruit, sugar cane, etc.).
  • Page 12 The typical nutrient ingredient contained in fruits/vegetables are shown below: Calorie Fruit/Vegetable Vitamin/Mineral Apple Vitamin C 0.44LB(200g)=300KJ(72 Calorie) Apricot Dietary fiber and potassium 0.07LB(30g)=85KJ(20 Calorie) Folic acid, dietary fiber, Vitamin C Beet 0.35LB(160g)=190KJ(45 Calorie) and potassium Blueberry Vitamin C 0.28LB(125g)=295KJ(70 Calorie) Vitamins C, B, B6 and E, folic acid Brussels Sprouts 0.22LB(100g)=110KJ(26 Calorie)

  • Page 13: Section Vi. Maintenance

    Section VI. Maintenance Before cleaning this product, be sure to shut down the switch to disconnect the power supply. Clean this product after using it. The Housing cannot be washed under water, and must be cleaned with twisted wet clothinstead. Before storing it, make sure this product is clean and dry.

  • Page 14: Section Vii. Safety Index

    Section VII. Safety Index Rated Voltage 120V ~ Rated Power 150W Rated Frequency 60Hz Continuous Operating Time ≤10 minutes Interval Time ≥20 minutes Juice Container 650ml Pomace Container 1000ml...

  • Page 15: Section Viii. Trouble Shooting

    Section VIII . Trouble Shooting Fault Analysis of cause Fault resolution Phenomenon After connecting 1. The power plug is not 1. Re-plug it properly power supply plugged in properly. 2. Replace the socket and 2. The outlet is in poor try again, and turning on contact.

  • Page 16: Warranty

    The manufacturer's warranty covers the product for a period of 12 months from the date of purchase against manufacturing faults. All Amzchef warranties are automatically kept track of in our system, so there is no need to register your product.
