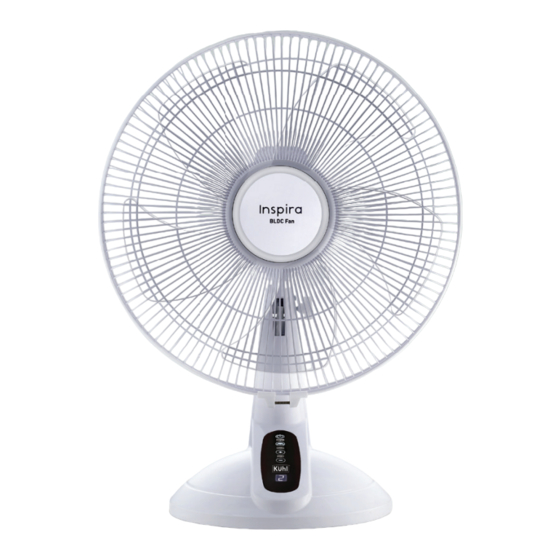

- Page 1 BLDC TABLE FAN Kühl INSPIRA T1 • TOUCH SCREEN • BLDC TECHNOLOGY • HIGH AIRFLOW SAVES ELECTRICITY 5 BLADES CONTROL PANEL • LOW NOISE • REMOTE • DIGITAL CONTROLLED SPEED DISPLAY (SILENT OPERATION)
- Page 2 Dear Customer, Thank you for choosing Kühl Stylish Fans. These fans offer high speed fast cooling with low noise and low electricity bills, thanks to the cutting-edge BLDC technology. We prioritize customer satisfaction, ensuring each Kühl Stylish Fan undergoes rigorous testing across all aspects of its operation, effectiveness, and efficiency.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Introduction ...................01 2. Features of Kühl Inspira T1 BLDC Table Fan ........01 3. Items in the Box ..................02 4. Know your Remote Control Device ............03 5. Power Saving & Energy Efficient Guide ..........03 6. Cost Saving Guide ..................04 7. -
Page 4: Introduction
Introduction With its focus on functionality and efficiency, Kühl Inspira Fans redefines the table fan experience. Enjoy high-speed cooling, low noise operation, and energy efficiency, thanks to advanced BLDC technology. Unlike traditional fans, Kühl Inspira Fans consume just 1/3 of energy while delivering high air flow, making it the choice for your home. -
Page 5: Items In The Box
Tilt Mechanism: The Kühl Inspira T1 BLDC Table Fan is equipped with a versatile tilt mechanism, enabling you to effortlessly adjust the fan's angle up or down to achieve your desired airflow direction. This convenient feature ensures that you can easily set and maintain the perfect airflow for your comfort. -
Page 6: Know Your Remote Control Device
Know your Control Device POWER ON/OFF: Press this to switch ON and OFF the Table Fan. • • SPEED SETTINGS: Speed varies for five different levels, wherein S1 is the lowest fan speed and S5 is the highest. Press as per your requirement. SWING MODE: Press this button to oscillate the fan from side to side. -
Page 7: Cost Saving Guide
Cost Saving Guide Ordinary Table Kühl Inspira T1 Table Fans Assumed usage of fan per day 16 h 16 h (hours) Power consumption* 75 W 28 W Power consumption – KWh 1.2 KWh 0.44 KWh Units per day Electricity bill `8.4 `3.08 per day... -
Page 8: Assembly Instructions
Assembly Instructions Step 1. For Motor Assembly, unscrew the Guard Nut and Blade Nut. Blade nut has to be unscrewed turning clockwise and rear guard nut by turning it anti-clockwise. Step 2. Assemble the Rear Guard onto Motor Assembly. There are 3 pins on motor and 3 holes on guard. The holes have to be inserted into the pins. - Page 9 Step 3. Assemble the Blade onto the Motor Shaft. Take care of the slots in blade hub inserted onto the pin on the motor shaft. Finally re-tighten the blade nut turning it anti-clockwise. Step 4 Insert The Plastic Ring onto the Front Guard. Front Guard Rubber Ring...
- Page 10 Step 5. Assemble the Front Guard onto Rear Guard. Assemble the front guard onto rear guard by stretching and overlapping the plastic ring over rear guard. Step 6. Assembled Table Fan.
-
Page 11: How To Operate Remote Control Device
How to operate Remote Control Device Get the Remote ready. • Insert 2 AA batteries into the remote unit’s slot provided at the back. • Switch ON the fan from the switch board to operate it with remote as explained hereafter. Power ON/OFF Button •... - Page 12 CONTACT US AT: E-6,7 & 8, Sector-59, Noida, U.P.-201 309, India. Call: 92-789-12345 E-mail: service kuhl.in or visit us at www.kuhl.in...
