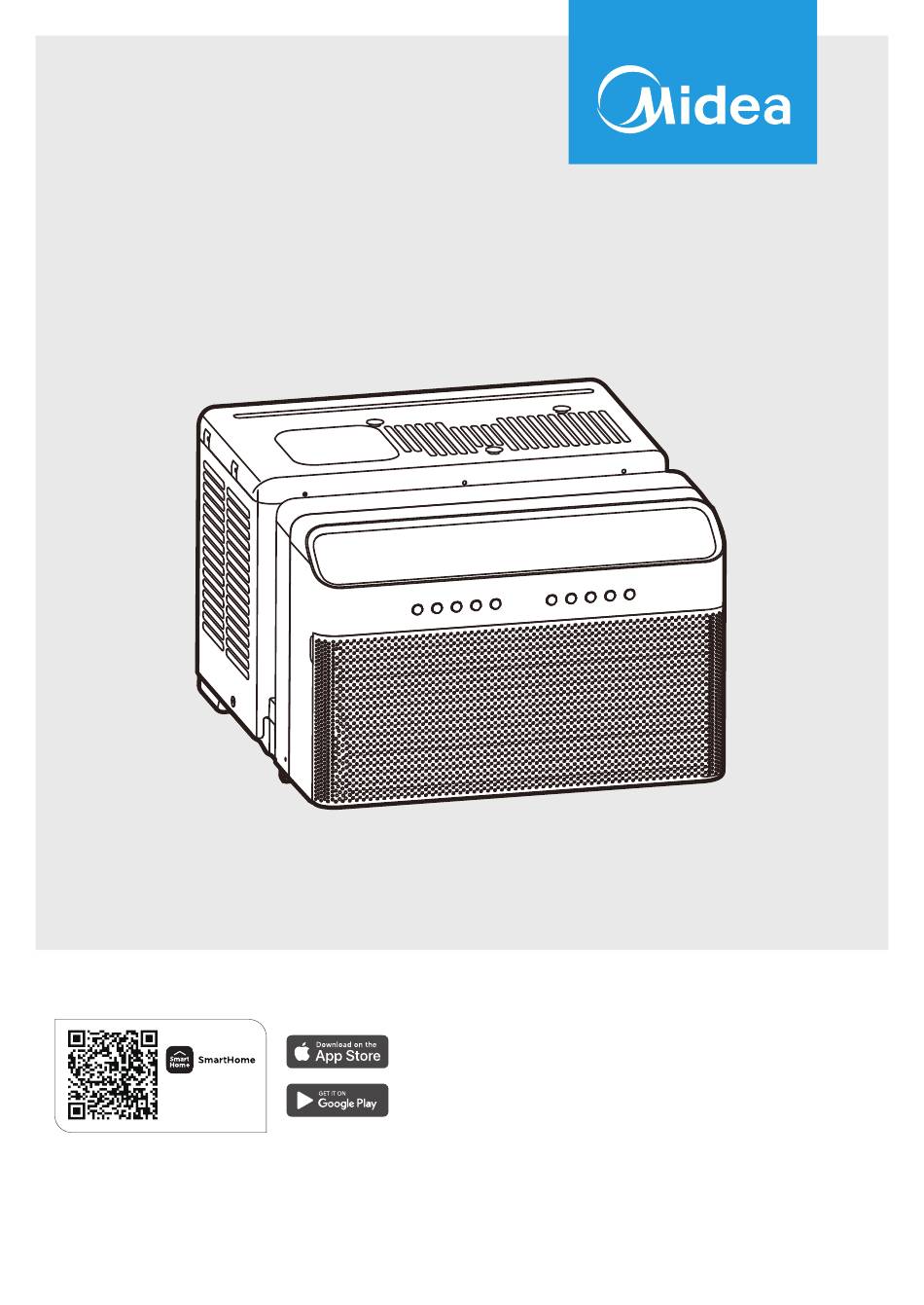

Window Air Conditioner

USER MANUAL

MAW08W1QWT

MAW10W1QWT

MAW12W1QWT

MAW

Need help?

Do you have a question about the MAW and is the answer not in the manual?

Questions and answers

Summary of Contents for Midea MAW

Page 1 Window Air Conditioner USER MANUAL MAW08W1QWT Download the app & activate product MAW10W1QWT MAW12W1QWT Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and speciﬁcations are subject to change without prior notice for product improvement. Consult with the dealer or manufacturer for details.
Page 2 THANK YOU FOR CHOOSING MIDEA! Before using your new Midea product, please review this manual thoroughly to ensure safe and e ective operation of its features and functions. CONTENTS REMOTE CONTROL AND SMART APP SETUP...
Page 3 Safety and Inspection Guidelines These guidelines are provided to prevent risks and damage from unsafe operation of the unit. Inspect the packaging and unit upon arrival to ensure integrity. If any damage is found, contact the retailer or dealer immediately. Modi cations or alterations to the unit are prohibited.
Page 4 WARNING • Be sure the air conditioner has been securely and correctly installed according to the installation instructions in this manual. Save this manual for future reference when removing or re-installing this unit. • Plug in power cord plug properly. •...
Page 5 Turn oﬀ the unit and switch oﬀ the circuit breaker before cleaning. Do not touch the metal parts of the unit when removing the air ﬁlter. Turn oﬀ the unit and switch oﬀ the circuit breaker before cleaning. Do not clean the unit with water. If water spills on the unit, turn it oﬀ, switch oﬀ...
Page 6 WARNING • Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of a person competent in the use of ﬂ ammable refrigerants. •...
Page 7 How To Handle Equipment Containing Flammable Refrigerants Transport of equipment containing ﬂ ammable refrigerants. See transport regulations. 2. Marking of equipment using signs. See local regulations. 3. Disposal of equipment using ﬂ ammable refrigerants. See national regulations. 4. Storage of equipment. The storage of the appliance should be in accordance with the applicable regulations or instructions, whichever is more stringent.
Page 8 8) Checks to the refrigerating equipment When replacing electrical components, ensure they are suitable for their intended purpose and meet the correct speciﬁ cations. Always adhere to the manufacturer’s maintenance and service guidelines. If uncertain, seek guidance from the manufacturer’s technical department. The following checks should be performed for installations utilizing ﬂ...
Page 9 How To Handle Equipment Containing Flammable Refrigerants (cont.) 11. Removal and evacuation. When breaking into the refrigerant circuit to make repairs - or for any other purpose - conventional procedures shall be used. However, for ﬂ ammable refrigerants it is important that best practice be followed, since ﬂ...
Page 10 13. Decommissioning. Before carrying out this procedure, it is essential that the technician is completely familiar with the unit and all its detail. It is recommended good practice that all refrigerants are recovered safely. Before commencing the task, it is essential to take oil and refrigerant samples in case analysis is needed before reclaimed refrigerant can be reused.
Page 11 Operation of Current Device The power supply cord contains a current measuring device that detects Plug in & damage to the power cord. Test the power supply cord as follows: press RESET Plug in the air conditioner. RESET 2. The power supply cord will have TWO buttons on the plug head. TEST Press the TEST button.
Page 12 PRODUCT INSTALLATION Installation Video Scan the QR code to watch an installation video of the Midea U. If the power supply cord does not reset when the TEST button is pressed or cannot be reset, it must be replaced. Please contact customer service for assistance.
Page 13 Required Tools Phillips screwdriver Level Flathead screwdriver Pencil Ruler or tape measure Scissors or knife Drill and 1/8” drill bit Proper PPE *Not Included NOTE Save carton and these Installation Instructions for future reference. The carton is the best way to store unit during winter, or when not in use.
Page 14 Install AC Support bracket and AC Installation exploded view: Unit (Indoor side) Anti-Tip Brackets Left Extension Arm Guide button Adjusting button Spring Pin Support arms Main Support Right Extension Arm Installation Hardware: Mounting Hardware Qty. Mounting Hardware Qty. Side Arm Foam Main Bracket Window Sash Lock Right Extension Arm...
Page 15 Step 1 : Install Support Bracket (for Lip Window) Right Extension Arm (A2) Right Extension Arm – Short (A3) Right Extension Arm(A2) Select the proper extension arm based on the width of Remove the tape from Insert the proper extension arm in the the window.
Page 16 Step 1 : Install Support Bracket (for Flat Window) Right Extension Arm (A2) Right Extension Arm – Short (A3) Right Extension Arm (A2) Select the proper extension arm based on the width of Remove the tape from Insert the proper the window.
Page 17 Step 2 : Install Air Conditioner 8" 8" Anti-Tip Brackets Fold down both side arm Remove the tape and slide Place the AC unit on the out the anti-tip arms from bracket. Ensure it is centered in hinges and remove the screw each side about 1 inch on each side.
Page 18 OPERATION INSTRUCTIONS Normal Operating Sounds Vibration High Pitched Chatter Unit may vibrate and make High e ciency compressors noise because of poor wall may have a high pitched or window construction or sound during cooling cycle. incorrect installation. Sound of Rushing Air In front of the unit, the sound of rushing air from the fan may be audible.
Page 19 To begin operating the air conditioner, follow these steps: 1. Plug in the air conditioner (be sure to follow the power cord instructions) on page 11. 2. Turn the power on to the air conditioner, using the ON/OFF button. 3. Set the thermostat to the coldest temperature setting. 4.
Page 20 Features LED Display Description Press to turn unit on or oﬀ. Connect Function Press to initiate smart connection mode. Timer Press to set timer feature on/oﬀ. Press to initiate this feature, which will maintain comfort Energy Saver and save energy. Press to choose operating mode in a sequence that goes Mode Fuctions from Auto, Cool, Dry and Fan.
Page 21 To operate the AUTO OFF Feature To operate on COOL mode: • While the unit is running, press the TIMER button • Choose Cool Mode to set the cooling function. once to enable the AUTO OFF feature. Use the UP ( ) or DOWN ( ) buttons to choose the desired temperature.
Page 23 REMOTE CONTROL AND SMART APP SETUP Location of the remote control Use the remote control within a distance of 26 ft. (8m) from the air conditioner, pointing it towards the unit. The unit will beep when it receives a signal. CAUTION •...
Page 24 Notes The unit could comply with the local national regulations. In Canada, it should comply with CAN ICES-3(B)/NMB-3(B). In USA, this unit complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This unit may not cause harmful interference, and (2) This unit must accept any interference received, including interference that may cause undesired operation.
Page 25 300 Kimball Dr Parsippany NJ 07054 Telephone number or internet contact information: Midea.com/us FCC Compliance Statement ( products subject to Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 26 Remote Screen Indicators Information is displayed when the remote controller is powered on. Low battery (If flashes) Sleep Comfort Wireless mode Sense control [*]: Model dependent MODE display Displays the current mode AUTO COOL Transmission Timer Silence Timer Lock Indicator Feature Feature Temperature/Timer/Fan speed display...
Page 27 How to Use Basic Functions Note： Before operation, please ensure the unit is plugged in and power is available. AUTO Mode Select AUTO mode Set the temperature Turn on the air conditioner MODE NOTE: 1. In AUTO mode, the unit will automatically select the COOL, FAN function based on the set temperature.
Page 28 Setting the TIMER TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/o . TIMER ON setting Press TIMER ON button to Press up or down button for Point remote to unit and wait initiate the ON sequence.
Page 29 How to Use Advanced Functions Swing function °C/°F The horizontal louver will swing up and down Press this button will alternate the temperature automatically when pressing Swing button. display between the °C & °F. Press again to make it stop. ECO function LED DISPLAY Press ECO to turn on the energy saver function.
Page 30 FlashCool Function SLEEP Function Press FlashCool button FlashCool Press this button in COOL mode to activate the FlashCool function. In this mode, the unit will SLEEP function reduces energy usage when rapidly lower the room temperature. activated by adjusting the temperature settings. Note: The SLEEP function is not available in LOCK function...
Page 31 SET function Press the SET button to enter the function setting, then press SET button or TEMP or TEMP button to select the desired function. The selected symbol will ﬂash on the display area, press the OK button to conﬁrm. To cancel the selected function, please follow the same procedures outlined above.
Page 33 Matter is a connectivity technology that uniﬁes the smart home by allowing devices and ecosystems (such as Alexa, Google Home and Apple Home) to speak the same language thus creating exciting new features and use cases. Top industry brands such as Apple, Google, Amazon, Midea and others collaborated to create Matter which provides the following beneﬁts: - Seal of approval that smart home devices will work seamlessly together –...
Page 34 Turn on Bluetooth on the mobile device. Open the Alexa, Google Home, Apple Home app on the mobile device.
Page 35 Step 5: Scan Matter QR code Tap the “+” and “Add Device/Accessory” or tap "+Add" in the app and then select Matter device and scan the Matter QR code found on the side of the AC device. Follow the respective instructions in the Alexa, Google Home or Apple Home app to complete the pairing process.
Page 36 App & Smart Speakers can support Matter only when using these versions or above. Device Version iPhone iOS16.5 Apple Home 16.5 Google Play services min version: 22.36.15 Android Google Home app (GHA) min version: 2.58.24.1-dogfood Google Google Hub rmware min version: 1.56.324896 Home Hub (appears on hub as Chromecast rmware version) Alexa App...
Page 37 3 How to use SmartHome App Ensure that the mobile phone is connected to the wireless network. Bluetooth must be turned on. The device must also be powered up. Step 1: Download the SmartHome app Scan the QR code below to download the SmartHome app from the app store or search for it directly on the Google Play Store or Apple's App Store.
Page 38 Step 3: Connecting the device 1) Upon logging in, a message stating "Smart devices discovered nearby" may appear. Tap to add the device. 2) If the message does not appear, tap on "+" and select the device from the list of nearby available devices. If the device is not listed, add it manually by ﬁrst selecting the device category, such as Window AC.
Page 39 3) Follow the app's instructions to connect the device to the wireless network. If the connection fails, refer to the additional instructions provided in the app. (Fig. 1) (Fig. 1)
Page 40 Declaration of conformity FCC ID: 2ADQOMDNA23 IC: 12575A-MDNA23 This device complies with Part 15 of the FCC Rules and Industry Canada’s licenceexempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; (2) This device must acceptany interference,including interference that may cause undesired operation of the device.
Page 41 CLEANING AND MAINTENANCE CAUTION Clean the air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or ﬁre hazards. Air Filter Cleaning The air ﬁlter should be checked at least once every two weeks to see if cleaning is necessary.
Page 42 TROUBLESHOOTING TIPS Before calling for service, review this list. It may save time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this unit. Problem Solution Wall plug disconnected. Push plug rmly into wall outlet. Circuit breaker tripped.
Page 43 Problem Solution Dirty air lter- air restricted. Clean air lter. Air conditioner turns on and o Outside temperature extremely hot. Set FAN speed to a higher setting to rapidly. bring air past cooling coils more frequently. Check for potential obstructions blocking the outdoor intake/exhaust. Clear any obstructions.
Page 44 Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.
Page 45 MideaDPO@midea.com. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via MideaDPO@midea.com. To ﬁnd further information, please follow the QR Code. The design and speciﬁcations are subject to change without prior notice for product improvement.
Page 46 • Diagnostics, removal, transportation and reinstallation cost required because of service. • Costs of service calls that are a result of items listed under NORMAL RESPONSABILITIES OF THE CONSUMER** Midea replacement parts shall be used and will be warranted only for the original warranty. NORMAL RESPONSIBILITIES OF THE CONSUMER**...
