Warning notices: Before using this product, please read this manual carefully and keep it for future reference.

Window Air Conditioner

USER MANUAL

MAW08V1QWT

MAW10V1QWT

MAW12V1QWT

MAW08V1QWT-T

MAW

Need help?

Do you have a question about the MAW08V1QWT-T and is the answer not in the manual?

Questions and answers

Summary of Contents for Midea MAW08V1QWT-T

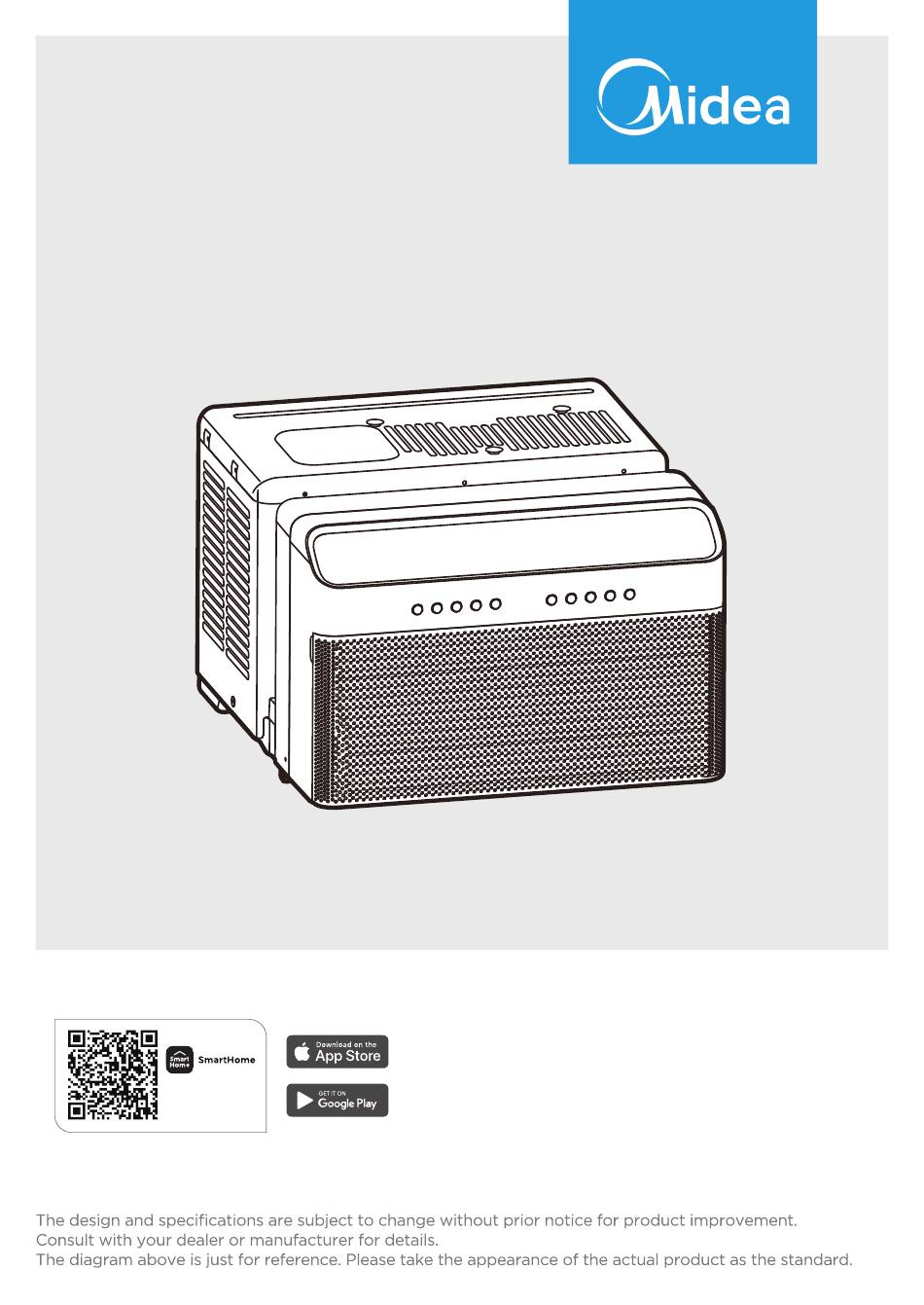

Page 1 Window Air Conditioner USER MANUAL MAW08V1QWT MAW10V1QWT Download the app & activate product MAW12V1QWT MAW08V1QWT-T Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
Page 2 THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new air conditioner offers in a safe way.
Page 3 SAFETY INSTRUCTIONS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you ﬁnd any damage, please contact the retailer or dealer. Please note modiﬁcations or alterations to the appliance are not allowed for your safety concern.
Page 4 WARNING • Be sure the air conditioner has been securely and correctly installed according to the installation instructions in this manual. Save this manual for possible future use in removing or installing this unit. • Plug in power cord plug properly. Otherwise, it may cause electric shock or ﬁre due to excess heat generation.
Page 5 • Keep ventilation openings clear of obstruction. • Unit is only to be serviced by a Midea authorized servicer, please call Customer Service at 1-866-646-4332 for support. • Flammable refrigerant R32 is used within air conditioner. Please follow the instructions carefully to handle, install, clean, and service the air conditioner to avoid damage or hazard.
Page 6 Operation of Current Device The power supply cord contains a current measuring device that detects Plug in & damage to the power cord. Test your power supply cord as follows: press RESET Plug in the air conditioner. RESET 2. The power supply cord will have TWO buttons on the plug head. TEST Press the TEST button.
Page 7 13.75” (349mm). Vinyl lip 22" to 36" (558 mm to 914mm) 13.75" min (349 mm) INNER WINDOW SILL Vinyl-Clad Windows Note: Midea U bracket works on walls with thickness 3 to 10.5 inches from inside of window to outside wall.
Page 8 Tools You Will Need Phillips Screwdriver Level Flathead Screwdriver Pencil Ruler or tape measure Scissors or knife Drill and 1/8” drill bit Proper PPE Installation Hardware 1” Type A Screw Open Window Bracket – RH 1/2” Type A Screw Open Window Bracket – LH 1/2”...
Page 9 Rear Cross Main Brace Support Right Extension Left Spring Push Pin Extension Horizontal Bracket Angled Support Arms Fig. 1 1. Prepare the Bracket – Install Video Time 1:48 Remove the top foam insert containing the bracket and hardware from the carton. Note：The left arm moving to the right side pin holes when adjusting for the 22"...
Page 10 2. Prepare the Window – Install Video Time 1:58 Lower sash must open sufﬁciently to allow a clear vertical opening of 13.75 inches. Side louvers and the rear of the AC must have clear air space to allow enough airﬂow through the condenser for heat removal. The rear of the unit must be outdoors, not inside a building or garage.
Page 11 D. Check the level again and ensure the bracket feels secure. After making any necessary adjustments, insert the cotter pins into the Main Support Pins. Cotter Fig. 7 Vinyl Lip Secure the bracket to the windowsill by drilling 1/8” pilot holes and installing the 1/2” Type A screws as shown in Fig.
Page 12 4. Install Air Conditioner – Install Video Time 4:36 A. Set the air conditioner on top of the support bracket. Ensure the grooves on the bottom of the air conditioner align with the Main Supports. Using a level, check for proper tilt towards the outside. This side faces indoors Fig.
Page 13 5. Foam Installation – Install Video Time 5:33 A. Measure the distance between the Side Arm Hinge and the closest part of the window frame in line with the Side Arm. Add 1/4” to this distance and cut the Side Arm Foam to length. WARNING Do not leave the unit unattended during installation.
Page 14 C. Insert Side Arm Foam into Side Arm Hinge until the top front of the Side Arm is ﬂush with the top of the hinge. Front Fig. 17 Fig. 18 NOTE Repeat the side arm foam installation steps on the other side of the unit as well. Top view D.
Page 15 E. Install a strip of Window Sealing Foam to the bottom of your lower sash sealing any small gaps between the window and air conditioner. Then close the window and check for gaps. Fill any gaps with the included foam as needed. F.
Page 16 Final Check: Review the installation and check for any gaps or openings to the outdoor air. Cover these gaps with the provided foam ensuring no outdoor air leaks inside. See image for areas to check for gaps. Check for Gaps Check for Gaps Fig.
Page 17 Sound Performance The following table shows the sound performance data for these window air conditioners. Please use your speciﬁc model number to reference the correct sound power number in the table. MAW08V1QWT/MAW08V1QWT-T * per ISO 3744 at low fan speed NOTE...
Page 18 Air Conditioner Operation WARNING To reduce the risk of ﬁre, electrical shock, or injury to people or property, read the SAFETY PRECAUTIONS before operating this appliance. Outdoor temp.: 64°F ~ 109°F / 18°C ~ 43°C Cooling Operation Indoor temp.: 60°F ~ 90°F / 16°C ~ 32°C NOTE •...
Page 19 Air Conditioner Features ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, thoroughly familiarize yourself with the control panel as shown below and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the control panel, remote control, smartphone app or voice control.
Page 20 To operate the AUTO OFF Feature To operate on COOL mode: • While the unit is running, press the TIMER button • Choose Cool Mode to set the cooling function. once to enable the AUTO OFF feature. Use the UP ( ) or DOWN ( ) buttons to choose the desired temperature.
Page 21 Check Filter Feature: The Check Filter feature is a reminder to clean the air ﬁ lter for a more efﬁcient operation. The light above the button will illuminate after 250 hours of operation. After cleaning the ﬁlter, press the SWING button for 3 seconds to reset the Check Filter feature turning the light off.
Page 22 REMOTE CONTROL AND APP INSTRUCTIONS Handling the Remote Control Location of the remote control Use the remote control within a distance of 26 ft. (8m) from the air conditioner, pointing it towards the unit. The unit will beep when it receives a signal. CAUTION •...
Page 23 Function Buttons MODE ON/OFF Switches the operating Turns the unit on or off. modes as follows: Auto Cool TEMP Increases temperate in 1°F (1°C) increments. Max. temperature is ENERGY SAVER 86°F (30°C). Press this button to toggle energy saver mode. Scrolls through operation functions as follows: Comfort Sense (...
Page 24 300 Kimball Dr Parsippany NJ 07054 Telephone number or internet contact information: Midea.com/us FCC Compliance Statement ( products subject to Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 25 Setting the TIMER TIMER ON/OFF Set the amount of time after which the unit will automatically turn on/off. TIMER ON SETTING Press TIMER ON button to Press up or down button for Point remote to unit and wait initiate the ON time multiple times to set the desired 1sec, the TIMER ON will be sequence.
Page 26 TIMER ON & OFF SETTING (example) Keep in mind that the time periods you set for both functions refer to hours after the current time. Example: If current timer is 1:00PM, to set the timer as above steps, Timer Unit turns Unit turns starts the unit will turn on 2.5h later...
Page 27 1 How to use SmartHome App Ensure that your mobile phone is connected to the wireless network. Bluetooth must be turned on. The device must also be powered up. Step 1: Download the SmartHome app Scan the QR code below to download the SmartHome app from app store or search for it directly on the Google Play Store or Apple's App Store.
Page 28 Step 3: Connecting the device 1) When you log in, you may see the message "Smart devices discovered nearby". Tap to add your device. 2) If no such message appears, proceed as follows: Tap on "+" and select your device in the list of nearby available devices.
Page 29 3) Follow the steps in the app to connect your device to the wireless network. If your device fails to connect, follow the additional instructions in the app. Add device Add device For Window AC For Portable AC Step 4: Controlling the device After pairing successfully, a card will be created for the device in the SmartHome app.
Page 30 2 How to use Matter Matter is a connectivity technology that uniﬁes the smart home by allowing devices and ecosystems (such as Alexa, Google Home and Apple Home) to speak the same language thus creating exciting new features and use cases. To use Matter, you will need at least one Matter enabled smart speaker from Amazon, Google or Apple, and it's respective app.
Page 31 Step 2: Turn on Bluetooth Turn on Bluetooth on your mobile device. Settings Bluetooth Bluetooth Step 3: Enter AP mode Window AC: Hold down the CONNECT / Power button for 3 seconds to begin the pairing process (“AP” will appear on the AC’s display). Portable AC: Hold down the SWING / Power button for 3 seconds to begin the pairing process (“AP”...
Page 32 Step 4: Open app Open the Alexa, Google Home, Apple Home app on your mobile device. Apple Home Google Home Alexa Step 5: Scan matter QR code Tap the “+” and “Add Device/Accessory” or tap "+Add" in your app and then select Matter device and scan the Matter QR code found on the side of the AC device.
Page 33 Step 6: Control device After pairing is successful, you can control your AC’s temperature and mode settings, etc. through the respective ecosystem app and smart speaker. Due to a compatibility issue, the temperature value shown in the Alexa, Google Home or Apple Home app may be 1 degree di erent from that displayed on the air conditioner.
Page 34 Declaration of conformity FCC ID: 2ADQOMDNA23 IC: 12575A-MDNA23 This device complies with Part 15 of the FCC Rules and Industry Canada’s licenceexempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; (2) This device must acceptany interference,including interference that may cause undesired operation of the device.
Page 35 App & Smart Speakers can support Matter only when using these versions or above. Device Version iPhone iOS 16.5 Apple Home 16.5 Google Play services min version: 22.36.15 Android Google Home app (GHA) min version: 2.58.24.1-dogfood Google Google Hub ﬁrmware min version: 1.56.324896 Home Hub (appears on hub as Chromecast ﬁrmware version) Alexa App...
Page 36 CLEANING AND MAINTENANCE CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or ﬁre hazards. Air Filter Cleaning The air ﬁ lter should be checked at least once every two weeks to see if cleaning is necessary.
Page 37 TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Problem Solution Wall plug disconnected. Push plug ﬁrmly into wall outlet. Circuit breaker tripped.
Page 38 Problem Solution Dirty air ﬁlter- air restricted. Clean air ﬁlter. Air conditioner turns on and off Outside temperature extremely hot. Set FAN speed to a higher setting to rapidly. bring air past cooling coils more frequently. Check for potential obstructions blocking the outdoor intake/exhaust. Clear any obstructions.
Page 39 • Diagnostics, removal, transportation and reinstallation cost required because of service. • Costs of service calls that are a result of items listed under NORMAL RESPONSABILITIES OF THE CONSUMER** Midea replacement parts shall be used and will be warranted only for the original warranty. NORMAL RESPONSABILITIES OF THE CONSUMER**...
Page 40 Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.
Page 41 MideaDPO@midea.com. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via MideaDPO@midea.com. To ﬁnd further information, please follow the QR Code. The design and speciﬁcations are subject to change without prior notice for product improvement.
