Summary of Contents for Midea MAW08H1ZWT

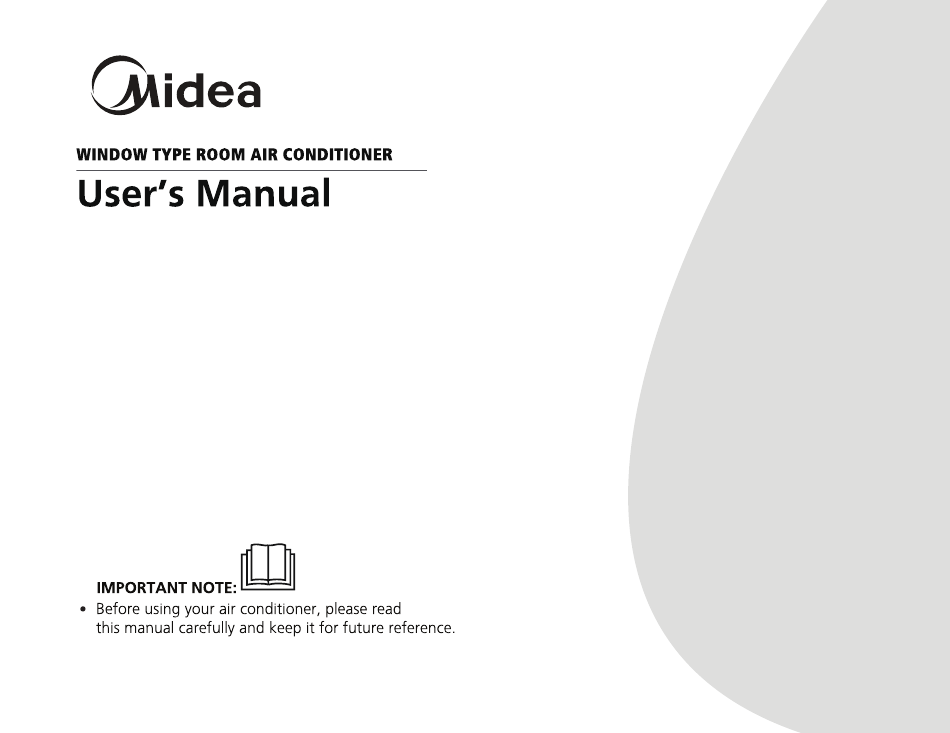

- Page 1 MAW08H1ZWT MAW12H2ZWT...
-
Page 2: Table Of Contents
CONTENTS Safety precautions Installation instructions What is in the box Before you get start Installation overview. Operation instructions Get to know your AC. Get to know the features. Cleaning & maintenance Troubleshooting Warranty... -
Page 3: Safety Precautions
Safety Precautions Must read the warning message. Inside you will find many helpful hints on how to use and maintain To prevent injury to the user or other people and property your air conditioner properly. Just a little preventive care on your damage, the following instructions must be followed. - Page 4 WARNING Plug in power plug properly. Otherwise, it may cause electric shock Unplug the unit if strange sounds, smell, or smoke or fire due to excess heat generation. Do not operate or stop the unit comes from it. It may cause fire and electric shock. by inserting or pulling out the power plug.It may cause electric shock Do not use the socket if it is loose or damaged.
-
Page 5: Cooling Operation
CAUTION unless they have been given super vision or instruction Hold the plug by the head of the power plug when taking concerning use of the appliance by a person responsible for it out. It may cause electric shock and damage. Turn o the their safety. - Page 6 Operation of Current Device The power supply cord contains a current device that senses damage to the power cord. To test your power supply cord do the following: Plug in the Air Conditioner. The power supply cord will have TWO buttons on the plug head. Press the TEST button, you will notice a click as the RESET button pops out.
-
Page 7: Electrical Information
WARNING Electrical Information For Your Safety The complete electical rating of your new room air conditioner Do not store or use gasoline or other flammable vapors and is stated on the serial plate. Refer to the rating when checking liquids in the vicinity of this or any other appliance. the electrical requirements. -
Page 8: What Is In The Box
What is in the Box. Package content 5/8in Screws and Top Rail 3/8in Screws Safety Lock(3 Types) ＬＥＦＴ ＲＩＧＨＴ Foam insert(E-Star model only) Frame Assembly(Left) Window Type Room Window Sash Seal Window Sash Seal Frame Assembly(Right) Air Conditioner unit Foam (with glue) Foam (non glue) Prepare the following tools NOTE... -
Page 9: Before You Get Start
Before you get started. Preparations before installation NOTE The installation must be carried out n u a Installing your AC should take about in strict accordance with the instructions 60 minutes. Save Carton and these Installation in this manual. Instructions for future reference. The carton is the best way to store unit during winter, or when We’re here if you need us, please contact... -
Page 10: Installation Overview
Installation overview. Installation Completion Display Safety Lock and 5/8in Screws Top Rail and 3/8in Screws Frame Assembly(Left) Safety Lock and 5/8in Screw Frame Assembly(Right) Air Conditioner unit Window Sash Seal Foam Remote controller ＬＥＦＴ ＲＩＧＨＴ NOTE Illustrations in this manual are for explanatory purposes. - Page 11 Step Install your AC unit. ＬＥＦＴ ＲＩＧＨＴ What you need.
- Page 12 Install your AC. Ｒ Ｉ Ｇ Ｈ Ｔ Ｒ Ｉ Ｇ Ｈ Ｔ Install the top rail Pull the panels Install the NOTE: Top rail and Sliding Panels at each side are on the AC. out around. accordion panels. o set to provide the proper pitch to the rear of (5/16 ").
- Page 13 Install your AC. ＬＥＦＴ ＬＥＦＴ ＲＩＧＨＴ ＲＩＧＨＴ Fasten the panels to the AC. The AC unit is done. Stretch the wind screen outward and insert the upper Before you rush to the A. the upper and lower frame strips of the and lower frame strips of the Panels into the AC next installation phase, Panels into the AC card slot.
- Page 14 Step Insulate your window. What you need.
- Page 15 Insulate your window. Cut the seal foam to the Insert the foam to the gaps. width of your window, and stick it of the underside. You should cut the foam to be the width of your window In order to improve the operation of the equipment and from the left to the right side.
- Page 16 Step Lift the AC into the window. ＬＥＦＴ ＲＩＧＨＴ What you need.
- Page 17 Lift the AC into the window. Wooden Windows Vinyl-Clad Windows Angle：3-4° ＬＥＦＴ ＲＩＧＨＴ Inside Outside Inside Outside Together with your helper, Properly position the bottom bar lift the assembled AC into BEHIND the inside window sill. the window frame. Make sure you do this step with a helper. Very carefully, lift Properly position the bottom bar behind the inside window sill and into the the assembled AC into the window frame.
- Page 18 Lift the AC into the window. SASH Board Storm window thickness 1-1/2"min frame or other as required, (38 mm) obstruction. for proper pitch to rear, along entire ＬＥＦＴ ＲＩＧＨＴ sill. Fasten with nails or screws. CAUTION: If storm window blocks AC, Please install according to the figure above.
- Page 19 Step Secure the AC. ＬＥＦＴ ＲＩＧＨＴ What you need.
- Page 20 Secure the AC. 1/8 " (3mm) pilot holes before Drive 1/ 2" (12.7 mm) locking driving screws. Drive 1/ 2" (12.7mm) screws through the frame lock locking screws through frame holes ＬＥＦＴ ＲＩＧＨＴ and into the sill(Only wooden into window sash(Only wooden windows).
- Page 21 The final details ＬＥＦＴ ＲＩＧＨＴ Cut the non-adhesive Use the nonadhesive foam insulation foam to fit the to fill the gaps in your window. width of your window. Make sure you are cutting the foam with the Stu it between the gap of the upper and lower sashes of non-adhesive sides.
-
Page 22: Normal Sounds
One more thing Additional Notes If AC is Blocked by Storm Window. Normal Sounds Add wood as shown in Caution illustration on page 16, or remove High Pitched Chatter storm window before air conditioner is installed. If Storm Window High e ciency compressors may have a high pitched chatter during the Frame must remain, be sure the drain holes or slots are not caulked cooling cycle. -
Page 23: Get To Know Your Ac
Get to know your AC. AC unit overview NOTE The following two types of product appearance for reference only, The machine you purchase may be a little di erent. Levers Levers Air Direction Air Direction Display Status display (Electronic Feature selection control panel Feature selection (Electronic control... - Page 24 Adjust your air conditioning direction. Air conditioning louvers CAUTION Do not stick your fingers in the air outlet, it may cause an injury. Bidirectional adjustment (left or right) - For 05K/06K The louver will allow you to direct the air flow Left or Right throughout the room as needed.
-
Page 25: Get To Know The Features
Get to know the features. Air conditioner features WARNING To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. Please always wait 3 minutes when turning unit o then on again, and when changing from cool to fan and back to cool. This prevents compressor from overheating &... -
Page 26: To Adjust Fan Speeds
Electronic control operating instructions To activate the Follow Me feature, point the NOTE: For some models, the fan speed can 5. TO ADJUST FAN SPEEDS: remote control towards the unit and press the not be adjusted under HEAT mode. Press Fan button to select the Fan Speed in four To operate on Auto feature: Follow Me button. -
Page 27: Additional Things You Should Know
Electronic control operating instructions Error codes: 10. TIMER: AUTO START/STOP FEATURE: AS - Room temperature sensor error • Press Timer button, the TIMER ON or TIMER OFF indicator light ES -Evaporator temperature sensor error illuminates. It indicates the Auto Start or Auto Stop program is HS -Electric heating sensor error;... -
Page 28: Cleaning & Maintenance
Cleaning & maintenance How to clean & change your filter. Check the air filter once a month Cabinet Cleaning to see if cleaning is necessary. The air filter should be checked at least once a • Be sure to unplug the air conditioner to month to see if cleaning is necessary. -
Page 29: Troubleshooting
Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN ONLY mode. Then, set temperature to a coil behind Higher setting. decorative front. The design and specifications are subject to change without prior notice for product improvement. Any updates to the manual will be uploaded to the Midea website (www.midea.com/us), please check for the current version. - Page 30 Problem Solving Problem Solution Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section. Temperature is set too High, set temperature to a Lower setting. Air conditioner cooling, but room Air directional louvers positioned improperly. Position louvers for better air distribution. is too warm- NO ice forming on Front of units is blocked by drapes, blinds, furniture, etc.
-
Page 31: Warranty
Operating Instructions. 2) Damages caused by services performed by persons other than authorized Midea costumer service; or external causes such as abuse, misuse, inadequate power supply or acts of God. - Page 32 Service under this warranty must be obtained by following these steps, in order: Contact Midea Consumer Services or an authorized Midea services at 1 866 646 4332. 2) If there is a question as to where to obtain service, contact our consumer relations Departament.
