Summary of Contents for Midea MAW

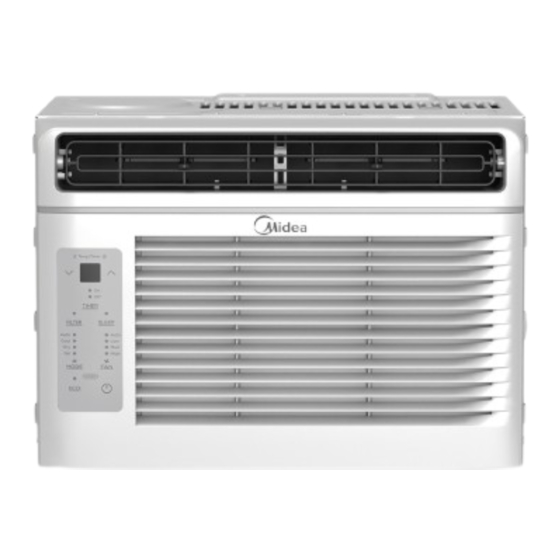

- Page 1 Window Air Conditioner USER MANUAL MAW05R1JWT-B/MAW06R1JWT-B/ MAW08S1JWT-B/MAW12S1JWT-B Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
-
Page 2: Table Of Contents
THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new air conditioner offers in a safe way. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you fi nd any damage, please contact the retailer or dealer. Please note modifi... - Page 4 WARNING • Be sure the air conditioner has been securely and correctly installed according to the installation instructions in this manual. Save this manual for possible future use in removing or installing this unit. • Plug in power cord plug properly. Otherwise, it may cause electric shock or fi...
- Page 5 • Keep ventilation openings clear of obstruction. • Unit is only to be serviced by a Midea authorized servicer, please call Customer Service at 1-866-646-4332 for support. • Flammable refrigerant R32 is used within air conditioner. Please follow the instructions carefully to handle, install, clean, and service the air conditioner to avoid damage or hazard.
- Page 6 Operation of Current Device The power supply cord contains a current measuring device that detects Plug in & damage to the power cord. Test your power supply cord as follows: press RESET Plug in the air conditioner. RESET 2. The power supply cord will have TWO buttons on the plug head. Press TEST the TEST button.
-
Page 7: Product Installation
PRODUCT INSTALLATION WARNING - Before You Begin Read these instructions completely and carefully. • IMPORTANT - Save these instructions. • IMPORTANT - Observe all governing codes and ordinances. We recommend that two people install this product. Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the Limited Warranty. - Page 8 Tools You Will Need Phillips Screwdriver Level Flathead Screwdriver Pencil Ruler or tape measure Scissors or knife Drill and 1/8” drill bit Proper PPE Installation Hardware Mounting Hardware Top Rail Hardware 3/4” (1/2”) Screws 3/8” Screws Window Sash Seal Foam Top Rail Lock Frame NOTE...
- Page 9 1. Prepare the Window Lower sash must open suffi ciently to allow a clear vertical opening (see dimension H in Table 1). Side louvers and the rear of the AC must have clear air space to allow enough airfl ow through the condenser for heat removal.
- Page 10 3. Install Accordion Panels on Air Conditioner NOTE The Top rail and Sliding Panels on each side are offset to provide the proper pitch to the rear of the unit (5/16”). This is necessary for proper condensate management and drainage. If you are not using the Side Panels for any reason, this pitch to the rear must be maintained.
- Page 11 4. Install Air Conditioner A. Keep a fi rm grip on the air conditioner, Fig. 5 Measure from the cabinet edge carefully place the unit into the window opening so the bottom of the air conditioner frame is against the window sill (Fig.
- Page 12 B1: For wooden windows: Fig. 8A Drive 1/2” (12.7 mm) locking screws through the top rail and into the window sash (Fig. 8A). NOTE To prevent window sill from splitting, drill 1/8” (3mm) pilot holes before driving screws. Drive 1/2” (12.7mm) locking screws through frame holes into window sash (Fig.
- Page 13 C. Secure lower sash in place by FOAM SEAL FOAM SEAL attaching the sash lock with the 3/4” (19 mm) or 1/2” (12.7 mm) screw as shown (Fig. 9). D. Cut Window sash seal foam and insert it in the space between the upper and lower sashes (Fig.
-
Page 14: Operation Instructions
OPERATION INSTRUCTIONS Normal Sounds MAW05/06 Models Sound of Rushing Air High Pitched Chatter Trickling Sound In front of the unit, you may High effi ciency compressors may have a hear the sound of rushing high pitched sound during cooling cycle. Droplets of water air being moved by the fan. - Page 15 Air Conditioner Features (general) WARNING To reduce the risk of fi re, electrical shock, or injury to people or property, read the SAFETY PRECAUTIONS before operating this appliance. This air conditioner is designed to be operated under the following conditions: Outdoor temperature: 64°F ~ 109°F / 18°C ~ 43°C Cooling Operation Indoor temperature: 62°F ~ 90°F / 17°C ~ 32°C...
- Page 16 Air Conditioner Features (MAW05/06 Models)
- Page 17 Air Conditioner Features (MAW08/12 Models) ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, thoroughly familiarize yourself with the control panel as shown below and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control alone or with the remote.
- Page 18 5. CHECK FILTER FEATURE: 9. TIMER: AUTO START/STOP FEATURE: The Clean Filter indicator light is a reminder to clean • When the unit is on, press the Timer button. The the air fi lter for more effi cient operation. The light “Timer off ”...
-
Page 19: Remote Control And App Instructions
REMOTE CONTROL AND APP INSTRUCTIONS Handling the Remote Control Location of the remote control Use the remote controller within a distance of 26.2 ft (8 meters) from the air conditioner, pointing it towards the receiver. Reception is confirmed by a beep. CAUTION •... - Page 20 Function Buttons Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to pages 22-25. TEMP ON/OFF Increases temperature in 1°...
- Page 21 Remote Screen Indicators Information is displayed when the remote controller is powered up. Transmission Indicator Lights up when remote sends signal to unit MODE display ON/OFF display Displays the current Appears when the remote is enabled and can send a signal to the unit. mode, including: If you would like to turn the remote o without a ecting the unit, point the remote away from the unit and press the ON/OFF button.
- Page 22 How to Use the Buttons SETTING THE DESIRED TEMPERATURE The operating temperature range for this unit is 62°F-86°F (17-30°C). You can increase or decrease the set temperature in 1°F or 1°C increments. Changing the Mode 1. To change the operating mode, press the MODE button until the ON/OFF SHORT desired mode appears on the remote’s display.
- Page 23 How to Use the Advanced Functions SLEEP Function The SLEEP function is used to decrease energy use while you sleep (and don’t need the same temperature settings to stay comfortable). Note: The SLEEP function is not available in FAN or DRY mode. ON/OFF SHORT TIMER...
- Page 24 Timer Functions Your air conditioning unit has two timer-related functions: TIMER ON - sets the amount of time after which the unit will automatically turn on. TIMER ON TIMER ON TIMER OFF - sets the amount of time after which the unit will automatically turn o .
- Page 25 Timer Functions (cont.) 3. Wait 2 seconds, then the TIMER OFF function will be activated. The digital display on your remote control will then return to the temperature display. NOTICE Continue When setting the TIMER ON or TIMER OFF functions, up to 10 to press ON/OFF SHORT...
- Page 26 300 Kimball Dr Parsippany NJ 07054 Telephone number or internet contact information: Midea.com/us FCC Compliance Statement ( products subject to Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 27 OS may or may not be supported until a new version is released. Your specific mobile phone or problems in your network may prevent the system from working and Midea will not be responsible for any problems that could be caused by incompatibility or network issues.
- Page 28 Periodically, we will update the device’s software to improve the experience. Device software updates can be accomplished through the SmartHome app. NOTICE Midea will not be responsible for any problems that could be caused by incompatibility or network issues, your wireless router and mobile phone.
- Page 29 How to use SmartHome App (smart models only) Ensure that your mobile phone is connected to the wireless network. Bluetooth must be turned on. The device must also be powered up. Step 1: Download the SmartHome app Scan the QR code below to download the SmartHome app from app store or search for it directly on the Google Play Store or Apple's App Store.
- Page 30 Step 3: Connecting the device 1) When you log in, you may see the message "Smart devices discovered nearby". Tap to add your device. 2) If no such message appears, proceed as follows: Tap on "+" and select your device in the list of nearby available devices.
- Page 31 3) Follow the steps in the app to connect your device to the wireless network. If your device fails to connect, follow the additional instructions in the app. Add device Add device For Window AC For Portable AC Step 4: Controlling the device After pairing successfully, a card will be created for the device in the SmartHome app.
- Page 32 Declaration of conformity FCC ID: 2ADQOMDNA21 IC: 12575A-MDNA21 This device complies with Part 15 of the FCC Rules and Industry Canada’s licence exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference;and (2) This device must accept any interference,including interference that may cause undesired operation of the device.
-
Page 33: Cleaning And Maintenance
CLEANING AND MAINTENANCE CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or re hazards. Air Filter Cleaning The air lter should be checked at least once every two MAW05/06 Models weeks to see if cleaning is necessary. -
Page 34: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Problem Solution Wall plug disconnected. Push plug rmly into wall outlet. Circuit breaker tripped. - Page 35 Problem Solution Dirty air lter - air restricted. Clean air lter. Air conditioner turns on and off Outside temperature extremely hot. Set FAN speed to a higher setting to rapidly. bring air past cooling coils more frequently. Check for potential obstructions blocking the outdoor intake/exhaust. Clear any obstructions.
-
Page 36: Warranty
Installation and Operating Instructions. 2) Damages caused by serviced performed by persons other than those authorized by Midea customer service; or external causes such as abuse, misuse, inadequate power supply or acts of God. - Page 40 CWS002IU-TYN8(GF) 20231109...
