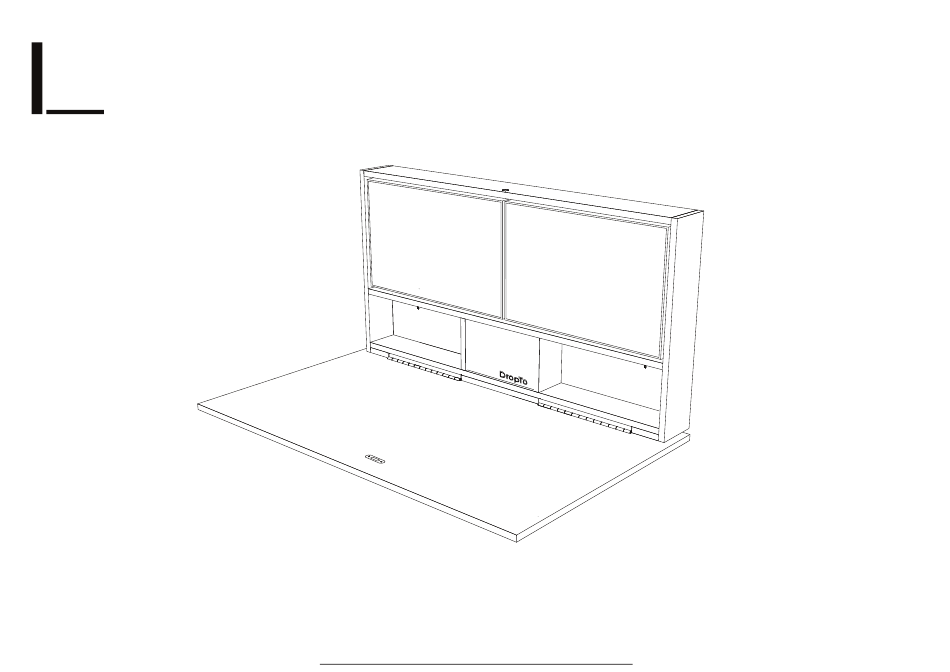

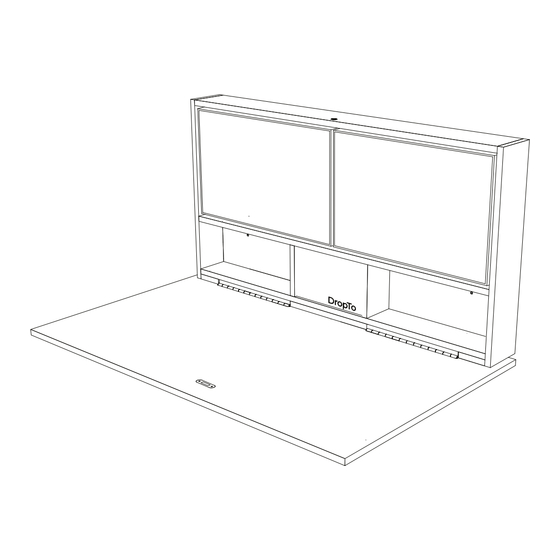

- Page 1 DropTop™Duo 27 Classic Installation Instructions. © 2025 Pith & Stem ltd. All rights reserved.
- Page 2 DropTop™Duo 27 Classic Installation Guidelines Please read and follow these instructions carefully to ensure the correct installation of your DropTop™ wall-mounted desk. Failure to adhere to the instructions may result in product damage, personal injury, or voiding of the product warranty. Before You Begin: •...
- Page 3 DropTop™ Duo 27 Classic Instructions Fixings Packs Plasterboard Wall Brick/Concrete Wall Fixings Fixings Cable Management Grommet Power cable supplied with your DropTop 2 x M4 Bolt - d will vary based on your order. 1 x VESA Plate-b 2 x M6 Bolt UK PLUG EU PLUG USA PLUG...
- Page 4 DropTop™ Duo 27. No Monitor Integrated Monitor Compatible Monitors Size: Dual 27-inch Monitors Dual 27-inch Monitor...
- Page 5 DropTop™ Duo 27 dimensions. Exterior dimensions when Closed: 1 3 c m Height: 73cm Width: 122cm Depth: 15.5cm Worktop Dimensions: Width: 138cm Depth: 63cm 1 1 c m 60cm 12cm The Duo 27 supports up to 75kg in weight 3.5cm Weight - 55kg It is recommended to have two people for safely...
- Page 6 DropTop™ Duo 27 Monitor space dimensions The Duo 27 is designed to house Dual 27-inch Monitors. Available Monitor Space dimensions: Height: 39cm 5 c m Width: 130cm Depth: 6 cm 5 c m 39cm 1 1 c m Recommended maximum depth for your monitor is 6cm In choosing a monitor for your DropTop Duo 27, it is important...
- Page 7 Extendable Arm Monitor Mount Two extendable monitor mounts are included with your DropTop Duo 27, providing tilt, swivel, and rotation functionality. 180º Swivel 180º Swivel 180º Swivel 75mm 100mm Ensure your monitor is VESA compatible with 75x75mm or 100x100mm. Tilt 15º Rotate 360º...
- Page 8 DropTop™Duo 27 Wall Plate dimensions. 2 cm 2 . 1 c m 15.7 cm...
- Page 9 DropTop Electrical Wiring Electrical wiring is embedded into the back of your desk. Take care not to drill or damage any embedded wires while installing your desk.
- Page 10 Installing your own monitor 4 x M4 Bolt-f a -Wall Plate & b-VESA Plate(1) c-Wrench(1) Articulating Arms(1) This way up. This way up. d-Bolt(2) f- M4 ×12Bolt Carefully place your monitors face down on a l-Cable Tie(3) clean, flat surface. Attach the VESA Plate-b to the back of your monitor using the M4 Bolts-f provided.
- Page 11 Front View Fully extend the articulating arms out. Wall Plate & Articulating Arms-A Back View 2 x M6 Bolt Attach the Wall Plate & Articulating Arms-A to the VESA slot on the back of the DropTop, using the 2 x M6 bolts provided.
- Page 12 2 x M4 Bolt - d Secure the VESA Plate-b to the articulating arm using the 2x M4 Bolt- d provided. Use the wrench provided to adjust the tilting angle of the Hook the VESA Plate-b to the Socket on VESA Plate-b.
- Page 13 Back View To adjust the height of the mount along the VESA slot, slightly loosen the M6 bolts on the back, then reposition the mount to the desired height and The mount brackets should be positioned as tighten the bolts again. indicated in the diagram to ensure proper and mounting of the monitors.
- Page 14 Cable Management The central shelf housing contains Before mounting your DropTop onto the wall, the electrical cable that powers your connect any cables to your monitor and feed DropTop. them through the oval cable management To access it, remove the screws from grommet to keep them tidy.
- Page 15 The central shelf housing can be used To re-attach the wood cover, screw in to hide extra cables or pass through a the screws. wired Ethernet cable, if needed.
- Page 16 Mounting the Wall plate. DropTop.™ Duo Wall plate height. Wall plate Height 54.5cm Worktop Height 54.5cm Your preferred desk height Floor Your DropTop.™ desk can be installed at any height that best suits your needs and The height to install the wall plate should be preferences.
- Page 17 Installing on a brick and concrete wall. 54.5cm Wall Use the wall plate as a guide and mark the position of the fixing holes with a pencil. The height to install the wall plate should be measured from the top of the desired desk height to the top of the recessed area of the wall plate as previously explained.
- Page 18 Wall To safely mount the desk, ensure that the DropTop.™ is locked before lifting it onto the wall plate. The DropTop.™ should fit snugly in the recess of the wall plate.
- Page 19 The detachable power cable is connected to the base of your desk. UK PLUG EU PLUG USA PLUG AU / NZ PLUG...
- Page 20 Installing on Plasterboard/Drywall. *Not included Recommended tools 25mm hole saw or a 25mm Spade bit 54.5cm Wall Use the wall plate as a guide and mark the position of the fixing holes with a pencil. Using a hole saw, cut 3 holes of 25mm The height to install the wall plate should be diameter centred on the top row of your measured from the top of the desired desk...
- Page 21 GeeFix Fixings Assemble your GeeFix wall anchor system by threading the supplied pullcord through the round wall plug, the curved back plate, and back through the wall plug. While holding onto the pullcord, feed the curved back plate into the hole and centre Wall on the 1″...
- Page 22 The detachable power cable is connected to the base of your desk. To safely mount the desk , make sure that the DropTop is locked before lifting it onto the wall plate. UK PLUG EU PLUG USA PLUG AU / NZ PLUG...
- Page 23 DropTop Artwork The Artwork is attached to the DropTop using green buttons that fit into the black oval securing clips embedded in the worktop. Lock your DropTop To attach the artwork, make sure the green buttons are securely slotted Green buttons are Black oval into the black oval securing clips.
- Page 24 Lock your DropTop To remove the artwork, gently push up from the base of the frame to dislodge the green buttons.
- Page 25 DropTop™Duo 27 Classic Thank you for choosing to purchase your DropTop™ wall-mounted desk. We are delighted to have you as part of our community. You're taking a wonderful step towards improving your workspace and achieving a better work-life balance. We couldn't be more thrilled to support you in this journey.
