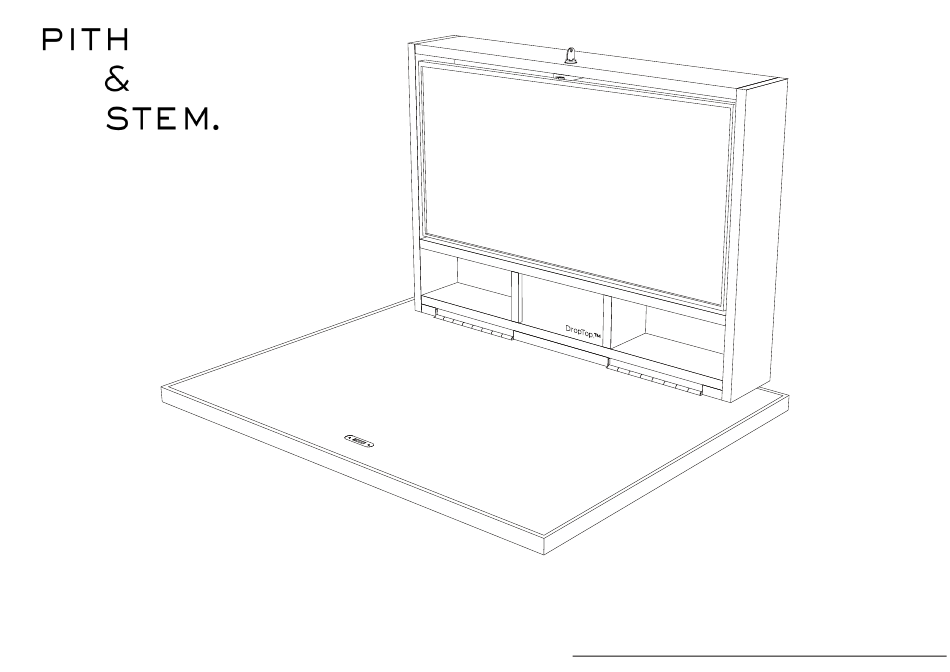

DropTop.™ Max Classic Instructions.
1
© 2023 Pith & Stem ltd. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DropTop Max Classic and is the answer not in the manual?

Questions and answers

Related Manuals for PITH & STEM DropTop Max Classic

Summary of Contents for PITH & STEM DropTop Max Classic

  • Page 1 DropTop.™ Max Classic Instructions. © 2023 Pith & Stem ltd. All rights reserved.
  • Page 2 DropTop.™ Max Classic Instructions Fittings Packs Brick/Concrete Wall Plasterboard Wall Fixings Fixings Cable Management Grommet Power cable supplied with your DropTop 4 x M4 Bolt - d will vary based on your order. 2 x VESA Plate-b 4 x M6 Bolt UK PLUG EU PLUG USA PLUG...
  • Page 3 DropTop.™ Max Classic. No Monitor Integrated Monitor 34-inch Ultrawide Monitor Compatible Monitors Sizes: 27-inch Monitor 34-inch Ultrawide Monitor...
  • Page 4 DropTop.™ Max Classic dimensions. 13 c m Exterior dimensions when Closed: Height: 73cm Width: 102cm Depth: 16.5cm Worktop Dimensions: Width: 102cm Depth: 62cm 1 1 c m The Max Classic supports up to 10cm 75kg in weight 3.5cm Weight - 40kg It is recommended to have two people for safely mounting your DropTop.
  • Page 5 1 1 c m for your monitor is 6 cm. 38cm In choosing a monitor for your DropTop Max Classic, it is important to consider both the depth of your monitor and the depth of the mount bracket to ensure that they do not exceed 11cm in total depth.
  • Page 6 Extendable Arm Monitor Mount One extendable monitor mounts is included with your DropTop Max Classic, providing tilt, swivel, and rotation functionality. 180º Swivel 180º Swivel 180º Swivel 75mm 100mm Ensure your monitor is VESA compatible with 75x75mm or 100x100mm. Tilt 15º...
  • Page 7 DropTop.™ Max Classic Wall Plate dimensions. 2.3 cm 2 . 1 c m 10.4cm...
  • Page 8 DropTop Electrical Wiring Electrical wiring is embedded into the back of your desk. Take care not to drill or damage any embedded wires while installing your desk.

  • Page 9: Installing Your Monitor

    No monitor option DropTop.™ Installing your monitor. 4 x M4 Bolt-f If you have selected the "No Monitor" option, your DropTop™ will come with an Extendable Arm Monitor Mount. This way up. This way up. VESA Plate-b Wall Plate & Articulating Arms-A Carefully place your monitors face down on a clean, flat surface.
  • Page 10 Front View Fully extend the articulating arms out. Wall Plate & Articulating Arms-A Back View 2 x M6 Bolt Attach the Wall Plate & Articulating Arms-A to the VESA slot on the back of the monitor, using the 2 x M6 bolts provided.
  • Page 11 2 x M4 Bolt - d Secure the VESA Plate-b to the articulating arm using the 2x M4 Bolt-d provided. Use the wrench provided to adjust the tilting angle of the VESA Plate-b. Hook the VESA Plate-b to the Socket on the fully extended arms.
  • Page 12 Back View To adjust the height of the mount along the VESA slot, slightly loosen the M6 bolts on the back, then reposition the mount to the desired height and tighten the bolts again. The mount bracket should be positioned as indicated in the diagram to ensure proper and mounting of the monitors.

  • Page 13: Cable Management

    Cable Management The central shelf housing contains the Before mounting your DropTop onto the wall, electrical cable that powers your connect any cables to your monitor and feed DropTop. them through the oval cable management To access it, remove the screws from grommet to keep them tidy.
  • Page 14 The central shelf housing can be used To re-attach the wood cover, screw in to hide extra cables or pass through a the screws. wired Ethernet cable, if needed.
  • Page 15 Mounting the Wall plate. DropTop.™ Max Wall plate height. Wall plate Height 54cm Worktop Height 54cm Your preferred desk height. Floor Your DropTop.™ desk can be installed at any height that best suits your needs and The height to install the wall plate should be preferences.
  • Page 16 Installing on a brick and concrete wall. 54cm Wall Use the wall plate as a guide and mark the position of the fixing holes with a pencil. The height to install the wall plate should be measured from the top of the desired desk height to the top of the recessed area of the wall plate.as previously explained.
  • Page 17 Wall Fittings Pack To safely mount the desk, ensure that the DropTop.™ is locked before lifting it onto the wall plate. The DropTop.™ should fit snugly in the recess of the wall plate.
  • Page 18 The securing screws in fittings pack #8 will ensure that your desk does not accidentally come off its wall mount. Wall Front View After the DropTop.™ desk has been To safely remove the desk from the wall, mounted on the wall, open the desk and make sure that the DropTop.™...
  • Page 19 Wall Fittings Pack #8 To safely mount the desk , make sure that the Drill the 2 x 6mm holes previously marked DropTop is locked before lifting it onto the wall for the mirror screws and insert the wall plate. plugs.
  • Page 20 The detachable power cable Fittings Pack #8 is connected to the base of Screw the mirror screw caps. your desk. UK PLUG EU PLUG USA PLUG AU / NZ PLUG...
  • Page 21 Installing on Plasterboard/Drywall. 54cm Wall Use the wall plate as a guide and mark the position of the fixing holes with a pencil. Using a hole saw, cut 3 holes of 25mm The height to install the wall plate should be diameter centred on the top row of your measured from the top of the desired desk wall plate pencil markings for the Geefix.
  • Page 22 GeeFix Fixings Assemble your GeeFix wall anchor system by threading the supplied pullcord through the round wall plug, the curved back plate, and back through the wall plug. While holding onto the pullcord, feed the curved back plate into the hole and centre Wall on the 1″...
  • Page 23 The securing screws in fittings pack #8 will ensure that your desk does not accidentally come off its wall mount. Front View After the DropTop.™ desk has been To safely mount the desk , make sure that the mounted on the wall, use a long thin tool DropTop is locked before lifting it onto the wall or pencil to mark the position of the mirror plate.
  • Page 24 Wall Wall Fittings Pack To safely remove the desk from the wall, Drill the 2 x 6mm holes previously marked make sure that the DropTop is locked for the mirror screws and insert the wall before lifting it off the wall plate. plugs.
  • Page 25 Fittings Pack #8 Screw the mirror screw caps. To safely mount the desk , make sure that the DropTop is locked before lifting it onto the wall plate.
  • Page 26 The detachable power cable is connected to the base of your desk. UK PLUG EU PLUG USA PLUG AU / NZ PLUG...
  • Page 27 DropTop Artwork The Artwork is attached to the DropTop using green buttons that fit into the black oval securing clips embedded in the worktop. Lock your DropTop To attach the artwork, make sure the green buttons are securely slotted into the Green buttons are Black oval black oval securing clips.
  • Page 28 Lock your DropTop To remove the artwork, gently push up from the base of the frame to dislodge the green buttons.
  • Page 29 DropTop.™ Max Classic Instructions. www.pithandstem.com © 2023 Pith & Stem ltd. All rights reserved.
