Summary of Contents for PITH & STEM DropTop Classic

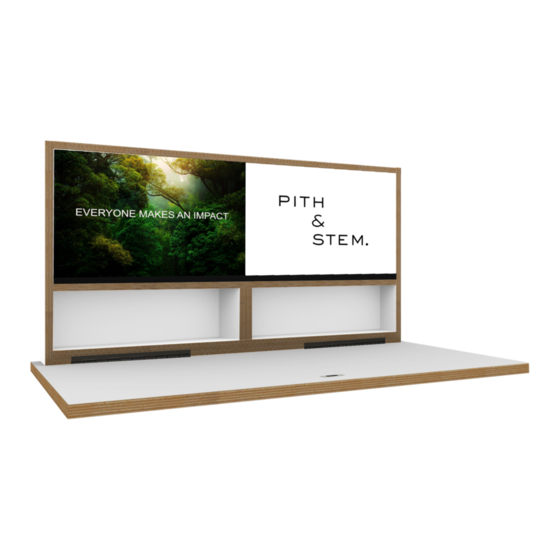

- Page 1 DropTop.™ Classic Instructions. www.pithandstem.com...
- Page 2 DropTop.™ Classic and Pro wall mounting Instructions Fittings Packs Brick/Concrete Wall Plasterboard Wall Fixings Fixings DropTop.™ DropTop.™ DropTop.™ DropTop.™ Single & Max Single & Max Power cable supplied with your DropTop will vary based on your order. Tilt Monitor Mount UK PLUG EU PLUG USA PLUG...
- Page 3 DropTop.™ Single & Max Parts. No Monitor Integrated Monitor...
- Page 4 DropTop.™ Duo. No Monitor Integrated Monitor...
-
Page 5: Installing Your Monitor
No monitor option DropTop.™ Installing your monitor. Included with your No Monitor option DropTop.™ is a Tilt Monitor Mount. DropTop.™ Pro & Duo 2 x Monitor Mounts. Monitor Back DropTop.™ Single 1x Monitor Mount. View DropTop.™ Max 1x Monitor Mount. Install your monitor before mounting the DropTop on the wall. - Page 6 Front View Back View Place your monitor into your DropTop.™ and loosely screw the monitor bolts into the screen mount. Adjust the screen mount to the desired height then proceed to tighten the bolts.
-
Page 7: Mounting The Wall Plate
Mounting the Wall plate. DropTop.™ Single Wall plate height. Wall plate Height The height to install the wall plate is measured from above the desired desk height to the top of recess of the wall plate. 49cm Worktop Height Height of the DropTop.™... - Page 8 DropTop.™ Duo DropTop.™ Max Wall plate height. Wall plate height. 54cm 56cm The height to install the wall plate is measured The height to install the wall plate is measured from above the desired desk height to the top of from above the desired desk height to the top of recess of the wall plate.
- Page 9 Installing on a brick and concrete wall. DropTop™ Single DropTop.™ Max Drill 6x 8mm sized holes. Use the wall plate as a guide and mark the DropTop™ Duo position of the fixing holes with a pencil. The height to install the wall plate is measured from above the desired desk height to the top of recess of the wall plate.
- Page 10 DropTop™ Single DropTop.™ Max Fittings Pack DropTop™ Duo Fittings Pack Lock your DropTop. Safely mount your DropTop on to the wall plate.
- Page 11 The securing screws in fittings pack #8 will prevent your DropTop.™ from accidentally lifting off its wall mount. Front View While the DropTop.™ is on the wall, use a long thin tool or pencil and mark then Lock your DropTop. position of the mirror screw holes.
- Page 12 Fittings Pack Lock your DropTop. Drill 2 x 6mm holes previously marked for the mirror screws and insert the wall plugs. Safely mount your DropTop on to the wall plate.
- Page 13 The detachable power cable Fittings Pack #8 is connected from the base Screw the mirror screw of the DropTop.™ caps. UK PLUG EU PLUG USA PLUG AU / NZ PLUG...
- Page 14 Installing on Plasterboard/Drywall. DropTop™ Single DropTop.™ Max Drill 3 x 25mm hole centred on the top row of your wall plate pencil markings for Geefix. Drill 3 x 8mm holes for wall plugs. DropTop™ Duo Use the wall plate as a guide and mark the position of the fixing holes with a pencil.
- Page 15 GeeFix Fixings DropTop™ Single Assemble your GeeFix wall anchor system by DropTop.™ Max threading the supplied pullcord through the round wall plug, the curved back plate, and back through the wall plug. While holding onto the pullcord, feed the curved back plate into the hole and centre on the 1″...
- Page 16 The securing screws in fittings pack #8 will prevent your DropTop.™ from accidentally lifting off its wall mount. Front View Lock your DropTop. While the DropTop.™ is on the wall, use a Safely mount your DropTop on to the wall plate. long thin tool or pencil and mark the position of the mirror screw holes.
- Page 17 Fittings Pack Drill the 2 x 6mm holes previously marked Lock your DropTop. for the mirror screws and insert the wall plugs. Safely remove the DropTop.™ off the wall.
- Page 18 Fittings Pack #8 Screw the mirror screw caps. Lock your DropTop. Safely mount your DropTop on to the wall plate.
- Page 19 The detachable power cable is connected from the base of the DropTop.™ UK PLUG EU PLUG USA PLUG AU / NZ PLUG...
- Page 20 www.pithandstem.com...
