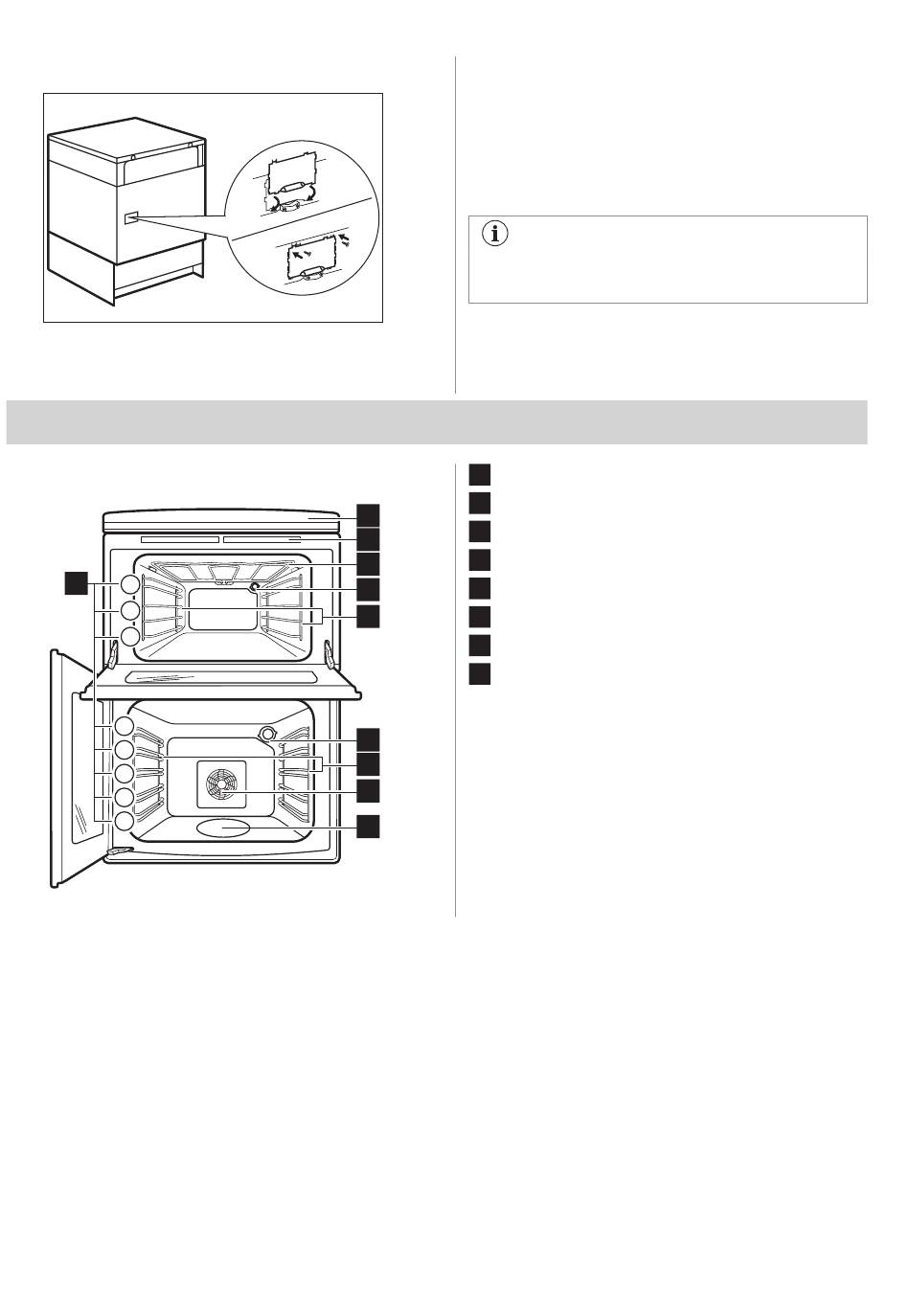

3.12 Covering terminal board
• The recommended cross-section area is
six square millimetres (6 mm²).
4. PRODUCT DESCRIPTION
4.1 General overview
8
3
2
1
5
4
3
2
1
• When you refit the mains terminal cover,
make sure that the lower tabs are located
inside the bottom edge of the aperture,
before you fix the two screws into the top
edge of the mains terminal cover.
• Make sure that the cover is securely
fastened.
To open the cover of terminal board obey
the procedure in opposite sequence.
Control panel and hob
1
Air vents for the cooling fan
2
1
Heating element
3
2
Lamp
4
3
Shelf support, removable
5
4
Fan
6
5
Cavity embossment
7
Shelf positions
8
4
5
6
7
