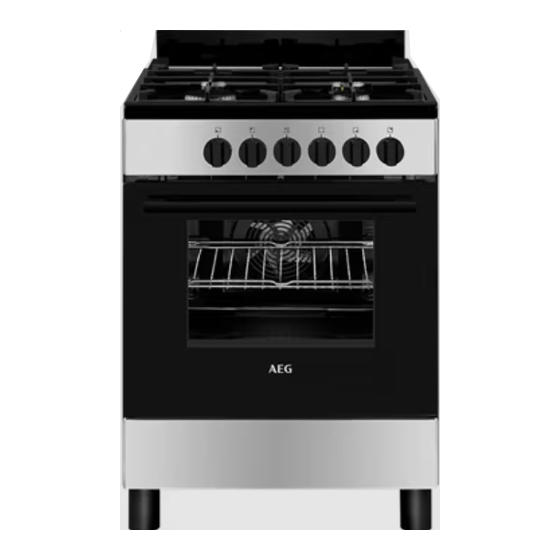

AEG CKB600A4BM User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CKB600A4BM
USER
MANUAL
EN
User Manual
Cooker

Advertisement

Table of Contents
loading

Related Manuals for AEG CKB600A4BM

Summary of Contents for AEG CKB600A4BM

  • Page 1 CKB600A4BM User Manual Cooker USER MANUAL...

  • Page 2: Table Of Contents

    14. ELECTROLUX / AEG MAJOR APPLIANCES - WARRANTY CONDITIONS..27 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
  • Page 3 ENGLISH manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. 1.1 Children and vulnerable people safety WARNING! Risk of suffocation, injury or permanent disability.
  • Page 4 Do not install the appliance behind a decorative door • in order to avoid overheating. Do not install the appliance on a platform. • Do not operate the appliance by means of an external • timer or separate remote-control system.

  • Page 5: Safety Instructions

    ENGLISH side walls. Install the shelf supports in the opposite sequence. WARNING: Use only hob guards designed by the • manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance.
  • Page 6 • Use only correct isolation devices: line acceptance of the installation when protecting cut-outs, fuses (screw type the installation is completed to your fuses removed from the holder), earth satisfaction. Note that your invoice is leakage trips and contactors.
  • Page 7 ENGLISH • The vapours that very hot oil releases • Use only stable cookware with the can cause spontaneous combustion. correct shape and diameter larger • Used oil, that can contain food than the dimensions of the burners. remnants, can cause fire at a lower •...

  • Page 8: Product Description

    • Make sure the appliance is cold. • The type of light bulb or halogen There is the risk that the glass panels lamp used for this appliance is for can break. household appliances only. Do not • Replace immediately the door glass use it for house lighting.

  • Page 9: Before First Use

    ENGLISH 3.2 Cooking surface layout Auxiliary burner Steam outlet - number and position depend on the model Semi-rapid burner Semi-rapid burner Rapid burner 3.3 Accessories • Baking tray For cakes and biscuits. • Wire shelf For cookware, cake tins, roasts. 4.
  • Page 10 WARNING! If the burner accidentally Be very careful when you use goes out, turn the knob to open fire in the kitchen the off position and try to environment. The light the burner again after manufacturer declines any minimum 1 minute.

  • Page 11: Hob - Hints And Tips

    ENGLISH 6. HOB - HINTS AND TIPS 6.2 Diameters of cookware WARNING! Refer to Safety chapters. WARNING! Use cookware with 6.1 Cookware diameters applicable to the size of burners. WARNING! Do not put the same pan on Burner Diameter of cook- two burners.

  • Page 12: Oven - Daily Use

    7.4 Pan supports 2. After you clean the pan supports, make sure that they are in correct The pan supports are not positions. resistant to washing in a 3. For the burner to operate correctly, dishwasher. They must be make sure that the arms of the pan washed by hand.

  • Page 13: Oven - Using The Accessories

    ENGLISH Symbol Oven function Application True Fan Cooking Set the temperature 20 - 40 °C lower than for Con- ventional Cooking Defrost To defrost food (vegetables and fruit). The defrosting time depends on the amount and size of the frozen food.
  • Page 14 10.3 Baking cakes crusty outside. It decreases the cooking time and energy Do not open the oven door before 3/4 of consumption to a minimum. the set cooking time is up. • Moisture can condense in the appliance or on the door glass panels.
  • Page 15 ENGLISH Food Quantity Oven function Temper- Time Shelf po- (kg) ature (min) sition (°C) Traditional 1.0 - 1.5 True Fan Cooking Bobotie Chicken 1.2 - 1.8 True Fan Cooking Chicken 1.2 - 1.8 Light Cooking 200 - 220 45 - 55 1) Preheat the oven for 10 minutes.
  • Page 16 Pizza Food Quantity Oven function Tempera- Time Shelf po- (kg) ture (°C) (min) sition Thin 1.0 - 1.2 True Fan Cooking 20 - 25 Thick 1.4 - 1.5 True Fan Cooking 25 - 30 Calzone 1.4 - 1.5 True Fan Cooking...

  • Page 17: Oven - Care And Cleaning

    ENGLISH Grilling Food Quantity (kg) Oven function Time (min) Shelf position 0.7 - 1.2 Grilling 20 - 25 Sheep chops Ribs 1.0 - 1.2 Grilling 45 - 60 Burgers 2.0 - 2.5 Grilling 15 - 20 Mackerel 1.2 - 1.5 Grilling 20 - 25 Toast browning...
  • Page 18 2. Pull the rear end of the shelf support away from the side wall and remove Install the removed accessories in the opposite sequence. 11.4 Catalytic cleaning 2. Lift and turn the levers on the two hinges till they stop (until you reach The cavity with a catalytic coating is self- the pins).
  • Page 19 ENGLISH 6. Use a spatula made of wood or plastic (or equivalent) to open the inner door. Hold the outer door, and push the inner door against the top edge of the door. Lift the inner door. 3. Close the oven door to the first opening position (halfway).

  • Page 20: Troubleshooting

    11.6 Replacing the lamp WARNING! Risk of electric shock. The lamp can be hot. 1. Turn off the oven. Wait until the oven is cooled down. 2. Disconnect the oven from the mains. 3. Put a cloth on the bottom of the cavity.
  • Page 21 ENGLISH Problem Possible cause Remedy There is no spark when you The fuse is blown. Make sure that the fuse is try to activate the spark gen- the cause of the malfunction. erator. If the fuse is blown again and again, contact a quali- fied electrician.

  • Page 22: Installation

    We recommend that you write the data here: Serial number (S.N.) ......... 13. INSTALLATION WARNING! Dimension Refer to Safety chapters. 13.1 Location of the appliance You can install your freestanding appliance with cabinets on one or two 13.2 Technical data sides and in the corner.
  • Page 23 ENGLISH 13.5 Gas burners for NATURAL GAS G20 2.0 kPa BURNER NORMAL POWER REDUCED POWER kW INJECTOR MARK 1/100 mm Rapid 0.75 Semi-rapid 0.45 Auxiliary 0.35 13.6 Gas burners for LPG G30 2.8-3.0 kPa BURNER NORMAL POWER REDUCED POWER kW INJECTOR MARK 1/100 mm Rapid...
  • Page 24 The appliance is set for liquid gas. You can change it to natural gas, with the correct injectors. The gas rate is adjusted to suit. WARNING! Before you replace the injectors, make sure that the gas knobs are in the Off position.
  • Page 25 ENGLISH Changing from liquid gas to each foot into a separate hole, in the plinth, and rotate it clockwise. natural gas 1. Unscrew approximately one turn the bypass screw position A. 2. Put the knob for the hob back. 3. Connect the appliance to the electricity.
  • Page 26 13.14 Anti-tilt protection Set the correct height and area for the 110-115 appliance before you attach the anti-tilt protection. 325-330 CAUTION! Make sure you install the anti-tilt protection at the correct height. 2. You can find the hole on the left side at the back of the appliance.

  • Page 27: Electrolux / Aeg Major Appliances - Warranty Conditions

    WARNING! The power cable must not touch the part of the appliance shaded in the illustration. 14. ELECTROLUX / AEG MAJOR APPLIANCES - WARRANTY CONDITIONS For domestic use only. connection with the appliance, including the installation thereof, and Not for commercial or industrial use.
  • Page 28 • Model and serial number of the appliance • Clear and concise details of the fault Customer Care For general enquiries or information regarding Electrolux / AEG appliances contact: Customer Care Department Electrolux South Africa (Pty) Ltd. P.O. Box 50 Paarden Eiland, 7420...
  • Page 29 Telephone 00800 222 825 E-mail service@electrolux.co.za Website www.electrolux.co.za www.aeg.co.za 15. ENVIRONMENTAL CONCERNS appliances marked with the symbol Recycle materials with the symbol with the household waste. Return the Put the packaging in relevant containers product to your local recycling facility or to recycle it.
  • Page 30 www.aeg.com...
  • Page 31 ENGLISH...
  • Page 32 www.aeg.com/shop...
