Commend ID8 Series Mounting Instructions

ID8 GM
Gooseneck microphone for a control desk of the id8 series.
Mounting

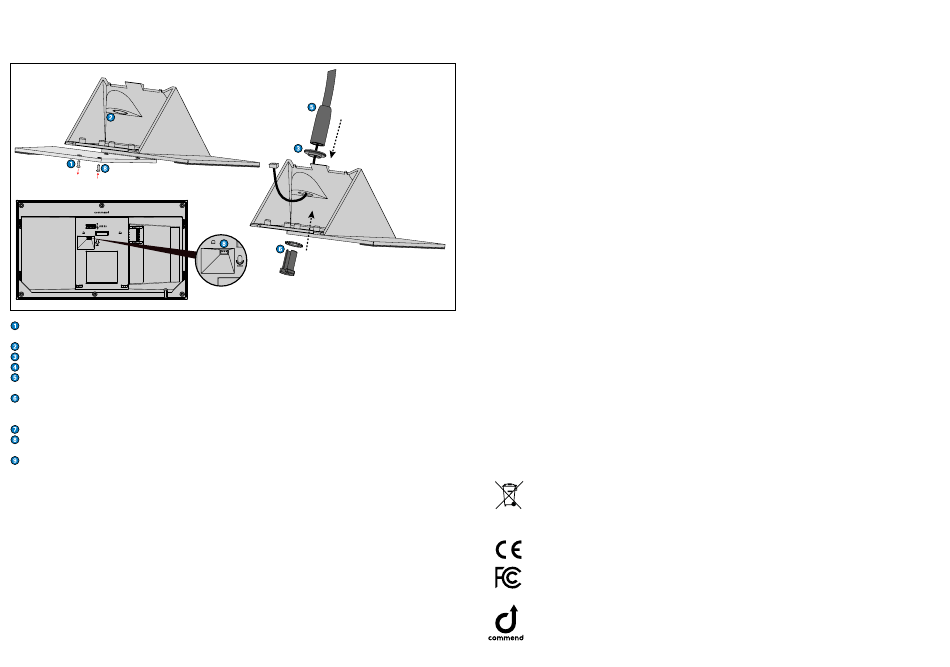

For easier access, remove one of the bottom plates of the ID8 DK by unscrewing the 4 torx screws
(see illustration above).
Remove the break-away on the desk kit ID8 DK by pushing and twisting.
Place the cover disk on the outside of the opening.
Guide the cable of the gooseneck microphone through the opening from above.
Guide the cable of the gooseneck microphone through the toothed washer and hollow adjustment
screw.
Push the adjustment screw from below through the opening on the desk kit and through the cover
disk. Screw the adjustment screw into the thread on the bottom of the gooseneck microphone. Hold
the gooseneck microphone firmly and fasten the adjustment screw using a 13mm (0.51 in) wrench.
Mount the bottom plate using the 4 torx screws.
Connect the cable of the gooseneck microphone to the rear of the device. If necessary, use a tool (i.e.
a screwdriver) to gently push the plug in. Make sure the pinholes match the position of the pins.
Put the device onto the desk kit, lower end first. Press the device onto the desk kit so that it snaps in
place.
NOTE
To prevent overextension and avoid premature wear, the gooseneck must not be bent more than 90°.
Extent of supply
• Gooseneck microphone
• Hollow adjustment scew
• Toothed washer
• Cover disk
• Short reference
Mounting instructions
• Do not place the device in areas where it may become wet or damp. Avoid dusty, humid and high-
temperature environments.
• Do not place the device on unstable, uneven or vibrating surfaces.
• Observe the country-specific standards, guidelines and specifications for installation, mounting and
configuration.
Safety instructions
• This device shall be installed or replaced by trained and qualified personnel only, and only when
the power supply is disconnected (no Power over Ethernet).
• All connected circuits shall fulfil the requirements for Safety Extra Low Voltage (SELV) and Limited
Power Source (LPS) according to IEC/EN 60950-1 and the requirements for ES1, PS2 circuits and
Annex Q (Limited Power Source) as per IEC/EN 62368-1.
• Do not make any modifications to the device.
• This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
ƒ Reorient or relocate the receiving antenna.
ƒ Increase the separation between the equipment and receiver.
ƒ Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
ƒ Consult the dealer or an experienced radio/TV technician for help.
Handling
Use the original packaging when transporting the device to prevent damage.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
CE – This device complies with the directives listed below by fulfilling corresponding standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
FCC – 47 CFR Part 15 and CAN ICES-3 (B)/NMB-3(B); for the FCC Rules, see "Safety instructions" .
Contact Commend USA: Commend Inc, 63 Ramapo Valley Road, Suite 201,
Mahwah, NJ 07430 (New York Area), www.commendusa.com
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-ID8-GM, version: 1.0/0823 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
