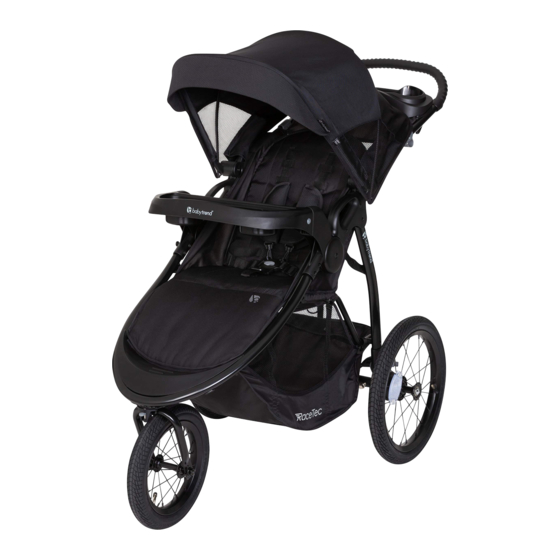

  • Page 1 Lea todas las instrucciones antes de armar y usar el producto. Conserve las instrucciones para uso futuro. RACE TEC Jogger Travel System Instruction Manual JG76XXXA Manual de Instrucciones Baby Trend, Inc. 1-800-328-7363 13048 Valley Blvd. (8:00 a.m. ~ 4:30 p.m. PST) Fontana CA 92335 www.babytrend.com JG76XXXA_2L_030322.1...
  • Page 2 Customer Service Department can be contacted at 1 (800) 328-7363 Monday through Friday between 8:00 a.m. and 4:30 p.m. (PST). Return Authorizations are required prior to returning product(s) to Baby Trend®. Please visit http://babytrend.com/pages/ limited-warranty for complete warranty details. GARANTIA NO DEVUELVA SU PRODUCTO A LA TIENDA.
  • Page 3 WARNING WARNING WARNING: WARNING: CAUTION: This single jogger is designed for one child only. Please follow all of these Please follow all of these Use with more than one child may cause an unbalanced instructions to ensure the safety of your child. Keep these instructions to ensure the safety of your child.
  • Page 4 ADVERTENCIA ADVERTENCIA ADVERTENCIA: ADVERTENCIA: PRECAUCIÓN: Este carrito está diseñado para un niño Por favor, siga todas Por favor, siga todas solamente. El uso con más de un niño podría provocar estas instrucciones para garantizar la seguridad de estas instrucciones para garantizar la seguridad de inestabilidad y lesionar o dañar a su hijo.
  • Page 5 ASSEMBLY ENSAMBLAR PARTS PIEZAS IMPORTANT ! IMPORTANT ! Check that you have all the parts for this model before assembling the stroller. To ensure safe operation of your To ensure safe operation of your Verifique que tenga todas las piezas para este modelo antes de montar el carrito. product, please follow these instructions carefully.
  • Page 6 PARTS PIEZAS PARTS PIEZAS Diagram of parts and features Diagrama de piezas y características Parent tray Visor Bandeja para padres Parasol Canopy 5 point Harness Cubierta Arnés de 5 puntos Mobile phone positioning Child Tray Posicionamiento del teléfono móvil Bandeja Para Niños Trigger release Fender Liberación del gatillo...
  • Page 7 ASSEMBLY ENSAMBLAR ASSEMBLY ENSAMBLAR FRONT WHEEL ASSEMBLY • Underneath the front end of the frame MONTAJE DE LA RUEDA DELANTERA locate the front wheel hub (Fig. 1c). Firmly insert the front wheel into the WARNING: WARNING: hub until it clicks into position. This wheel utilizes a front wheel This wheel utilizes a front wheel double nut locking system.
  • Page 8 ASSEMBLY ENSAMBLAR ASSEMBLY ENSAMBLAR TESTING FOR PROPER WHEEL INSTALLATION REAR WHEEL RUEDA TRASERA PARA VERIFICAR LA INSTALACION DE LAS RUEDAS WARNING: FALL HAZARD: ALWAYS FALL HAZARD: ALWAYS check the check the 3) • Lean the stroller forward to rest on double nut locking system before each use to ensure double nut locking system before each use to ensure front stroller frame.
  • Page 9 ASSEMBLY ENSAMBLAR ASSEMBLY ENSAMBLAR FRONT WHEEL LOCK (Types vary) SEATBACK POSITIONING BLOQUEO DE LA RUEDA DELANTERA (Tipos varían) POSICIONES DEL RESPALDO WARNING: 5) • To recline the seat press the clip FALL HAZARD from tip over before ends together to release and pull running, jogging, or walking fast, lock the front wheel from down.
  • Page 10 ACCESSORIES ACCESORIOS ACCESSORIES ACCESORIOS CHILD TRAY (Type may vary) • To access the child seat: Press tray BANDEJA PARA NIÑOS (El tipo puede variar) release button and rotate upward on the tray (Fig. 6c). WARNING: The child’s tray is not a restraint •...
  • Page 11 SAFETY SEGURIDAD SAFETY SEGURIDAD WARNING: MOBILE PHONE POSITIONING PARENT TRAY Do not place hot liquids or more BANDEJA PARA TELÉFONOS MÓVILES DE LOS PADRES than 3 pounds (1.36 kg) in the parent tray. Serious burns or unstable conditions can result. ADVERTENCIA: Nocoloque líquidos Mobile Phone...
  • Page 12 SAFETY SEGURIDAD SAFETY SEGURIDAD 7) • To Insert The Parent Tray: May • Colocación de la bandeja para padres: Puede requerir empujar el require pushing the canopy rod forward to install the parent tray. tallo de la cubierta para instalar la Locate the tray housing on the bandeja de los padres.
  • Page 13 SAFETY SEGURIDAD SAFETY SEGURIDAD CANOPY (Type may vary) SECURE THE STORAGE BASKET CUBIERTA (El tipo puede variar) ASEGURE LA CANASTA DE ALMACENAMIENTO If not assembled: 8) • To set the canopy: Si no esta ensamblado: Insert the arched rod into the 9) •...
  • Page 14 SAFETY SEGURIDAD SAFETY SEGURIDAD BRAKES JOGGING WITH YOUR STROLLER TROTAR CON SU CARRITO FRENOS WARNING: Always check with your WARNING: pediatrician for a recommended starting age / weight for Never jog or run with your newborn your baby in an all terrain stroller. in the car seat position.
  • Page 15 SAFETY SEGURIDAD SAFETY SEGURIDAD 11)•When you are jogging with your child, use the following TIRE INFLATION INFLADO DE RUEDAS safety features: Al trotar con su hijo, use las siguientes características de seguridad: 12) • Check the pressure before using the stroller. Tires are shipped un-inflated.
  • Page 16 SAFETY SEGURIDAD SAFETY SEGURIDAD SECURE THE CHILD • Carefully place the child in the stroller PARA SUJETAR AL NIÑO seat and bring the safety harness WARNING: around the child’s waist and over Avoid serious injury from falling or the shoulders. Place the crotch strap sliding out.
  • Page 17 SAFETY SEGURIDAD TO RELEASE THE CHILD PARA SOLTARLAS AL NIÑO 14) • RELEASE! Push button on center clasp, the two Harness Buckles will pop free (Fig. 14). ¡ LIBERAR! • Presione el botón en la presilla central para destrabar las dos hebillas del arnés (Fig. 14). Center Clasp Presilla central If you experience any difficulty with assembly, missing...
  • Page 18 FOLD PLEGAR FOLD PLEGAR TO FOLD STROLLER 15) • Close the canopy as described in PARA DESPLEGAR EL CARRITO the canopy section (refer to step 8). WARNING: Recline seat by releasing buckle as Care must be taken when described in seatback positioning folding stroller to prevent damage.
  • Page 19 UNFOLD DESPLEGAR UNFOLD DESPLEGAR UNFOLD STROLLER • Lift up on the stroller handle with PARA DESPLEGAR EL CARRITO both hands until the stroller frame WARNING: is erected and locked in the open Care must be taken when position (Fig. 16b). The stroller unfolding the stroller to prevent finger entrapment.
  • Page 20 (visit babytrend.com for compatibility chart) lengüetas de soporte del asiento Asiento infantil para automóvil se vende por separado para automóvil (Fig. 17a). (visite babytrend.com para ver la tabla de compatibilidad) Fig. 17a ATTENTION: CS01 EZ-Lift, CS02 EZ-Lift PLUS and CS03 EZ-Lift PRO Infant Car Seats must attach to the module of the strollers front seat.
  • Page 21 INFANT CAR SEAT / SILLITA PARA EL AUTOMÓVIL INFANT CAR SEAT / SILLITA PARA EL AUTOMÓVIL REMOVING THE CAR SEAT • Align the car seat module to the inner frame connectors. Carefully RETIRADA DE LA SILLA DE AUTO rest the car seats lower rear against the angle point of the tray. Latch the module into the stroller frame.
  • Page 22 INFANT CAR SEAT / SILLITA PARA EL AUTOMÓVIL INFANT CAR SEAT / SILLITA PARA EL AUTOMÓVIL INFANT CAR SEAT (Sold Separately) • Position the infant car seat so that it SILLITA PARA EL AUTOMÓVIL (Se vende por separado) faces toward the rear of the stroller. WARNING: Push the car seat into the front tray Never jog or run with your...
  • Page 23 INFANT CAR SEAT / SILLITA PARA EL AUTOMÓVIL INFANT CAR SEAT / SILLITA PARA EL AUTOMÓVIL 19)• When the infant car seat is locked • To remove the Infant Car Short clip firmly into place, secure the single Seat, Remove the short clip, Gancho corto short clip over the infant car seat squeeze the release handle...
  • Page 24 MAINTENANCE MANTENIMIENTO MAINTENANCE MANTENIMIENTO FRONT WHEEL - MAINTENANCE RUEDA DELANTERA - MANTENIMIENTO 20) • If replacing the front wheel, remove axle nuts and retainer plates before removing wheel (Fig. 20a). Attach replacement wheel to front fork (Fig. 20b). • Slide both retainer plates into the Front Fork axel with the tabs inserting into the Horquilla Delantera...
  • Page 25 MAINTENANCE MANTENIMIENTO MAINTENANCE MANTENIMIENTO 21) • To release the entire front wheel assembly, push the front wheel release tab inward. The wheel easily detaches from the housing (Fig. 21). • Para liberar todo el conjunto de la rueda delantera, empuje la pestaña de liberación de la rueda delantera hacia adentro.
  • Page 26 MAINTENANCE MANTENIMIENTO CARE AND MAINTENANCE CUIDADO Y MANTENIMIENTO • DO NOT MACHINE WASH SEAT. It should only be wiped with mild soap. Do Not soak material, NO BLEACH. To clean stroller frame use only mild soap and water, NO BLEACH. Check Stroller for loose screws, worn parts, torn material or stitchings on a regular basis.
