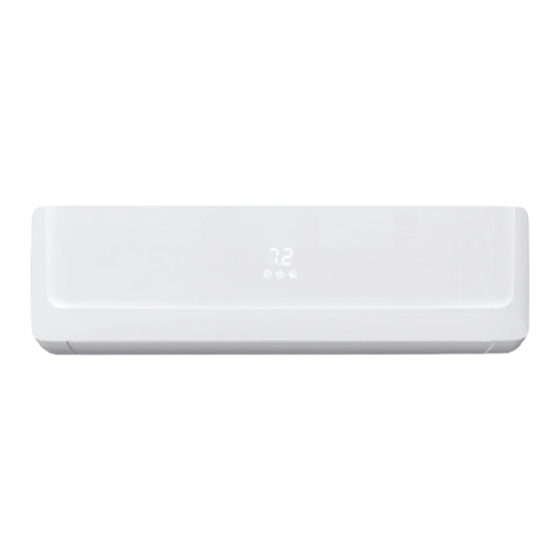

Friedrich FAHSW09A1C Installation And Operation Manual

Ductless split indoor wall-mounted unit r-32, r-454b refrigerant, single zone 115/230 volt, single zone & multi-zone 208/230 volt

Hide thumbs

page of 77

/ 77
Bookmarks

Available languages

Quick Links

Download this manual

Ductless Split

Indoor Wall-Mounted Unit

R-32, R-454B Refrigerant

Models

Single Zone

Single Zone &

Multi-Zone

96111102_00

115 VOLT

230 VOLT

208/230 VOLT

FAHSW09A1C, FAHSW12A1C,

FAHSW36A3D

FAHFW09A3D, FAHFW12A3D

FAHFW18A3D, FAHFW24A3D,

FAHMW07A3D

Need help?

Do you have a question about the FAHSW09A1C and is the answer not in the manual?

Questions and answers

Summary of Contents for Friedrich FAHSW09A1C

Page 1 Ductless Split Indoor Wall-Mounted Unit R-32, R-454B Refrigerant Models Single Zone 115 VOLT FAHSW09A1C, FAHSW12A1C, Single Zone 230 VOLT FAHSW36A3D Single Zone & 208/230 VOLT FAHFW09A3D, FAHFW12A3D Multi-Zone FAHFW18A3D, FAHFW24A3D, Multi-Zone 208/230 VOLT FAHMW07A3D 96111102_00...
Page 2 Register your Air Conditioner Model information can be found on the name plate. Please complete and mail the owner registration card furnished with this product, or register online at www.friedrich.com. A. IMPORTANT SAFETY AND GENERAL INFORMATION ....3 A.1 Introduction ................3 A.2 •...
Page 3 A. IMPORTANT SAFETY AND GENERAL INFORMATION A.1 Introduction This booklet contains the installation and operating instructions for your Air Conditioning unit. There are some precautions that should be taken to ensure proper operation. Improper installation can result in unsatisfactory operation or dangerous conditions. Read this booklet and any instructions packaged with separate equipment required to make up the system prior to installation.
Page 4 CAUTION: Do Not Operate Equipment During Active Stages Of Construction To ensure proper operation, Friedrich requires that all equipment is not operated during active construction phases. This includes active stages of completing framing, drywalling, spackling, sanding, painting, ﬂooring, and moulding in the equipment’s designated conditioning space. The use of this equipment during construction could result in premature failure of the components and/or system and is in violation of our standard warranty guidelines.
Page 5 • Opening of any sealed components. • Enclosures beyond the hinged door for ﬁlter cleaning. • Disposal or decommissioning of the unit. Scan this QR code to be linked to the Friedrich professional support page where you can locate the Service Manual.
Page 6 Charge w/ 50-75 ft of Charge- w/ add 75-100 line set line set line set ft of line set Refrigerant Type Indoor Unit Model Outdoor Unit Model Charge Oz FAHSW09A1C FSHSR09B1C 21.2 27.7 33.2 FAHSW12A1C FSHSR12B1C 21.9 27.4 32.9 FAHFW18A3D...
Page 7 C.3 Pre-Installation Checkpoints 1. Ensure there are no obstacles near the air outlet and air can be easily blown to every corner. 2. Where piping and wall hole can be easily arranged. 3. Keep the required space from the unit to the ceiling and wall according to the installation diagram on previous page.
Page 8 C. INSTALLATION OF THE UNIT Installation instructions / C.4 Install Mounting Plate Horizontal ruler Mounting plate position 1. Installing the Mounting Plate 1) Decide an installing location for the mounting plate Holder according to the indoor unit location and piping (for some models) ..
Page 9 C. INSTALLATION OF THE UNIT C.4 Install Mounting Plate 8 in. or more to ceiling Indoor unit outline 2 in. or more ! 2 in. or more to wall i towall Pipe hole Pipe hole For 18K/ 24K Series Models, WIDTH: 37 5/ 38 in. C.
Page 10 C. INSTALLATION OF THE UNIT Installation instructions / C.5 Drill Hole for Piping Table of Wall Hole Mounting size per Unit Size Size A Size A Size B SizeC Unit Model 1 3/8 in 1 3/8 in 1 3/4 in 2 3/4 in 7K/9K/12K Series 6 1/2 in...
Page 11 C. INSTALLATION OF THE UNIT Fig. C.5 C.6 Piping Provisions 3. Piping Provision 1) Put the piping (liquid and gas pipe) and cables through the wall hole from outside or put them through from inside after indoor piping and cables connection is complete to connect to the outdoor unit. 2) Decide whether to cut the knockout plate in accordance with the piping direction.
Page 12 Cracked Uneven Thickness C. INSTALLATION OF THE UNIT Fig. C.6.5 Fig. C.6.4 Fig. C.7.1 C.7 Indoor Unit Installation 4. Indoor Unit Piping Installation 1) Hang the unit onto mounting plate Indoor unit installation (Fig. C.7.1). 2) In the A position, open the front panel as shown in Fig. C.7.2. 3) In the B position, open the screw covers as shown in Fig.
Page 13 Installation instructions / C. INSTALLATION OF THE UNIT C.7 Indoor Unit Installation Indoor unit installation 6) Connect the piping Piping Connection: Small sealing cap Before unscrewing the big and the small sealing caps, press the small sealing cap with the finger until the exhaust noise stops, and then loosen ' '9----.
Page 14 C. INSTALLATION OF THE UNIT C.7 Indoor Unit Installation ( Indoor unit installation The 18K/24K indoor unit include the switch tie-in accessory -..___ Gas valve only for 18K/24K indoor if required. It may switch 3/8" gas connection tube into 1/2" or 5/8" connection tube. ·.�...
Page 15 Installation instructions / C. INSTALLATION OF THE UNIT C.7 Indoor Unit Installation Indoor unit installation 10) Pull the baffles as shown in Fig. C.5.20 Close the front shell as shown in Fig. C.5.21 . Then press the E position to fasten the front shell as shown in Fig. C.5.22 Fig.
Page 16 E. ELECTRICAL Model Wire Diameter(AWG) Interconnecting Wire WARNING 7-9k 14-4 AWG 600V THHN 14-4 AWG 600V THHN 14-4 AWG 600V THHN Electrical Shock Hazard 24-36K 14-4 AWG 600V THHN Always ensure power is Table E.1 disconnected before attempting to connect wires. Installation Instructions, Power and Wiring Connecting of the Cable...
Page 17 E. ELECTRICAL E.1 Indoor Unit Wiring Connection Diagram Diagram is reference only, actual product terminals should be followed.
Page 18 Present the owner or operator of the equipment with the Installation & Operation Manual, all accessory installation instructions, and the name, address, and telephone number of the Authorized Friedrich Warranty Service Company in the area for future reference if necessary. Inspect the unit for any damage to the coils and tubing that could cause a leak.
Page 19 ESPANOL Installation Manual � �...
Page 20 áreas pueden considerarse un solo espacio.• Mc(oz) Tipo de refrigerante Precarga con 25 pies 25-50 ft 50-75 ft add 75-100 ft de juego de líneas Indoor Unit Model Outdoor Unit Model FAHSW09A1C FSHSR09B1C 21.2 27.7 33.2 FAHSW12A1C FSHSR12B1C 21.9 27.4 32.9...
Page 21 ESPAÑOL...
Page 22 ESPAÑOL lnstrucciones de seguridad • 1. Para garantizar que la unidad funcione con normalidad, lea atentamente el manual antes de realizar la instalacion y realicela en estricta conformidad con este manual. • 2. No deje que entre aire en el sistema de refrigeracion o descargue el refrigerante cuando traslade el climatizador.
Page 23 ESPAÑOL lnstrucciones de seguridad • 14. Si el aparato tiene cableado fijo, debe disponer de un media de desconexi6n de la alimentaci6n electrica con una separaci6n del contacto en todos los polos que proporcione una desconexi6n completa en condiciones de sobretensi6n de categoria y dichos medias deben estar incorporados en el cableado fijo de acuerdo con las normas de cableado.
Page 24 ESPAÑOL Preparaci6n antes de/ uso / Nota • Cuando cargue refrigerante en el sistema, asegurese de que este en estado liquido si el refrigerante del aparato es R32 y R454B. De lo contrario, la composici6n quimica del refrigerante (R32 y R454B) en el interior del sistema podria cambiar y afectar al rendimiento del climatizador.
Page 25 ESPAÑOL...
Page 26 ESPAÑOL...
Page 27 ESPAÑOL lnstrucciones de instalaci6n / Diagrama de instalaci6n La distancia respecto ')}. al techo debe ser '<J,. superior a 200 La distancia respecto a mmn,9 pulgadas. la pared debe ser <:y superior a 50 mm/2 pulgadas. La distancia respecto a la pared La distancia respecto a debe ser superior a 50 mm/2 los obstaculos debe ser...
Page 28 ESPAÑOL...
Page 29 ESPAÑOL...
Page 30 ESPAÑOL...
Page 31 ESPAÑOL...
Page 32 ESPAÑOL...
Page 33 ESPAÑOL...
Page 34 ESPAÑOL lnstrucciones de instalaci6n / lnstalacion de la unidad interior � 6) Conecte las tuberias. Conexi6n de la tuberia: a.Antes de desatornillar los tapones de sellado grande y pequeno, presione el tap6n de sellado con el dedo hasta que el ruido de salida pare y, a continuaci6n, suelte el dedo.
Page 35 ESPAÑOL...
Page 36 ESPAÑOL...
Page 37 ESPAÑOL lnstrucciones de instalaci6n / Alimentaci6n y cableado Panel frontal Terminal (interior) Conectar el cable o Unidad interior Conecte el cable electrico con la unidad interior conectando individualmente los cables a los terminales del panel de control siguiendo la conexi6n de la unidad exterior.
Page 38 ESPAÑOL El diagrama es solo de referencia; se deben seguir los terminales reales del producto.
Page 39 ESPAÑOL...
Page 40 ESPAÑOL...
Page 41 ESPAÑOL...
Page 42 ESPAÑOL...
Page 43 ESPAÑOL...
Page 44 ESPAÑOL...
Page 45 ESPAÑOL...
Page 46 ESPAÑOL...
Page 47 ESPAÑOL lntroducci6n la pantalla / · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · lndicad o r de temp e r a tur a Ver la temperatura ajustada.
Page 49 FRANÇAIS Installation Manual "Tl )> ·(") )>...
Page 50 Mc(oz) Type de réfrigérant Précharge avec 25 25-50 ft 50-75 ft add 75-100 ft pieds de jeu de lignes Modèle d’unité Outdoor Unit Model intérieure FAHSW09A1C FSHSR09B1C 21.2 27.7 33.2 FAHSW12A1C FSHSR12B1C 21.9 27.4 32.9 FAHFW18A3D...
Page 51 FRANÇAIS...
Page 52 FRANÇAIS Instructions de securite • 1. Pour garantir que l'unite fonctionne normalement, veuillez lire soigneusement ce manuel avant !'installation, et essayez d'effectuer !'installation strictement en conformite avec ce manuel. • 2. Ne laissez pas d'air entrer dans le systeme de refrigeration ou le refrigerant se decharger lorsque vous deplacez le climatiseur.
Page 53 FRANÇAIS...
Page 54 FRANÇAIS...
Page 55 FRANÇAIS...
Page 56 FRANÇAIS...
Page 57 FRANÇAIS _ i n � n __ ...,/ Schema d'installation La distance depuis !'obstacle devrait etre La distance depuis superieure a 200 mm/7,9 pouces l'obstacle devrait etre pouces La distance depuis le mur La distance depuis l'obstacle devrait etre superieure a 3 devrait etre superieure a 50 m/9,8 pieds.
Page 58 FRANÇAIS...
Page 59 FRANÇAIS...
Page 60 FRANÇAIS...
Page 61 FRANÇAIS...
Page 62 FRANÇAIS...
Page 63 FRANÇAIS...
Page 64 FRANÇAIS Instructions d'installation / Installation de l'unite interieure � 6) Connectez les tuyaux �fe : :: Petite Connexion du tuyau : a.Avant de devisser les couvercles de scellage grand et petit, appuyez sur le petit couvercle avec le doigt jusqu'a ce que le bruit d'evacuation s'arrete, puis Appuyez relachez le doigt.
Page 65 FRANÇAIS...
Page 66 FRANÇAIS...
Page 67 FRANÇAIS Instructions d'installation / Alimentation et cablage Panneau avant Terminal(interieur) Connexion du cable o Unite interieure Connectez le cordon d'alimentation a l'unite interieure en connectant les cables aux terminaux sur le panneau de controle de maniere individuelle conformement Unite interieure connexion de l'unite exterieure.
Page 68 FRANÇAIS Le diagramme est uniquement une référence, les bornes réelles du produit doivent être suivies.
Page 69 FRANÇAIS...
Page 70 FRANÇAIS...
Page 71 FRANÇAIS...
Page 72 FRANÇAIS...
Page 73 FRANÇAIS...
Page 74 FRANÇAIS...
Page 75 FRANÇAIS...
Page 76 FRANÇAIS...
Page 77 FRANÇAIS...
