- Page 1 GAS SOLDERING IRON SET PT370 Operation and Safety Notes IAN 291792...
- Page 2 1 / 2 1 / 2...
- Page 3 Table of contents Symbols used ......................................1. Introduction ............................2. Safety instructions .......................... Safety instructions ....................................Scope of use ......................................3. Technical specifications ........................ Contents ........................................Features ........................................Technical specifications for mod. No. PT 370 ......................4. Before using the tool ........................
- Page 4 Symbols used Follow the warning and safety instructions! Read the operating instructions Wear eye protection. Caution hot! May only be used outside or in well ventilated rooms Danger: Highly inflammable aerosol 1. Introduction Congratulations on the purchase of your new device. You have chose a high quality quality product with this purchase.
- Page 5 - Contains flammable gas under pressure. - Take care not to heat the refillable gas tank. Do not expose gas soldering iron to temperatures exceeding 50°C / 120°F or to prolonged sunlight. Otherwise there is risk of disintegration or explosion. - Do not make any changes to the gas soldering iron! The soldering iron may not be modified in any way.
- Page 6 THE TABLE SURFACE OR OTHER OBJECTS. DO NOT DIRECT THE HOT AIR FLOW TOWARDS YOUR EYES, FACE, BODY OR OTHER PERSONS. Otherwise there is danger of burning. - Do not inhale the welding/ soldering fumes, as they can be poisonous. - Be aware that the actual size of the flame can be longer than it appears to be.

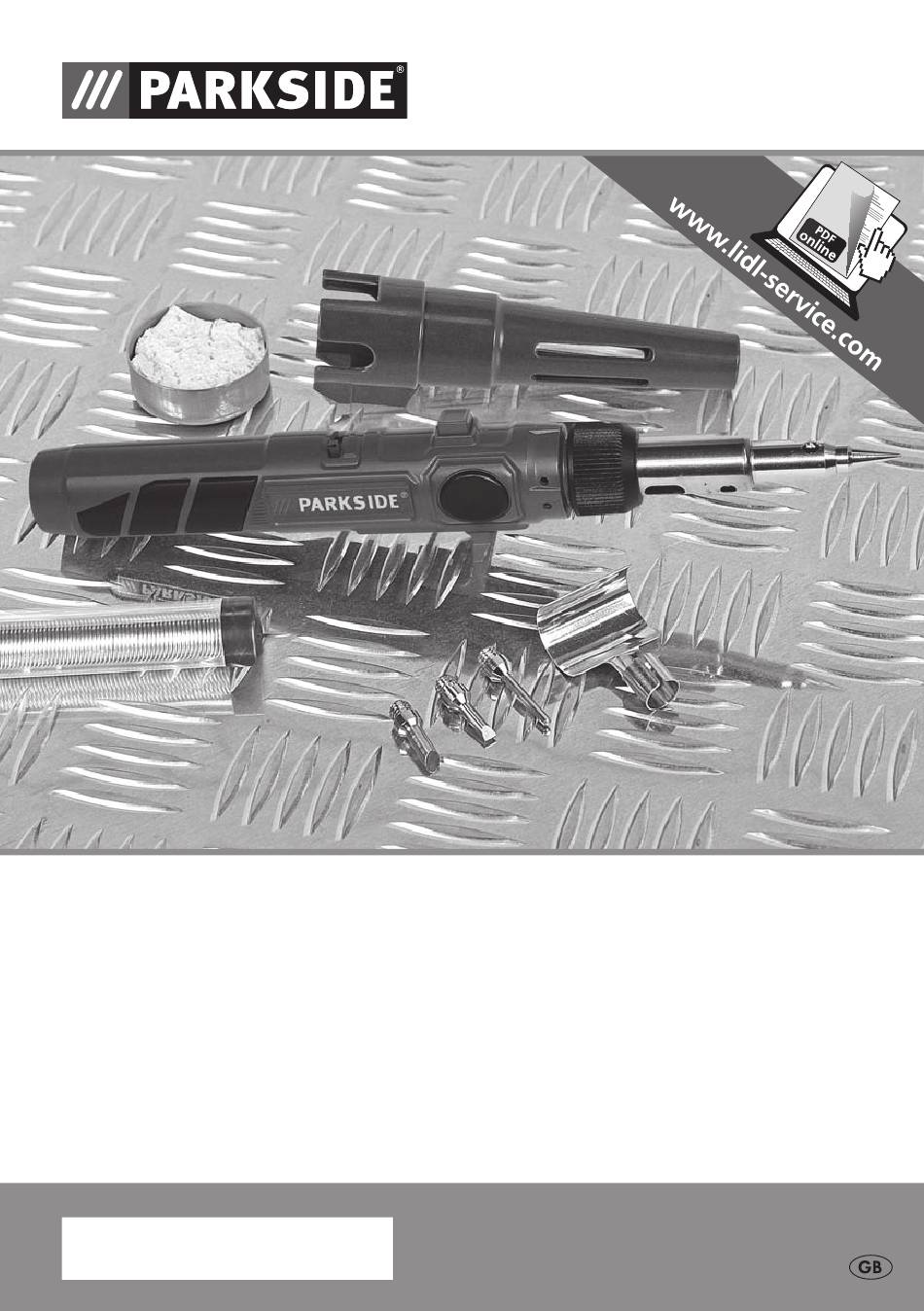

- Page 7 3. Technical specifications Contents • Gas soldering iron • Protective cap • 4 soldering tips (1x pre-assembled) • Hot air deflector • Cleaning sponge • Solder • Fuel gas cartridge ROTHENBERGER INDUSTRIAL Rofill Super 100 Features Hot air/ soldering attachment Soldering torch attachment Knurled nut Switch for continuous flame...
- Page 8 Technical specifications for mod. No. PT 370 The gas soldering iron is not filled. Appliance category / type of gas: Direct pressure butane; direct pressure butane-propane-mix The best results are achieved with the butane-propane mix Rofill Super 100 (75 % butane, 25 % propane). Max.
- Page 9 • Place the nozzle of the gas canister at the refill valve (6) of the gas soldering gun and press it . • Draw the nozzle of the gas canister out of the refill valve of the system as soon as the gas begins to overflow out.
- Page 10 Use as hot air gun The hot air gun function is ideal for removing or drying paint and forming plastic. It can also be used for shrink fitting and softening or removing adhesive. CAUTION! Danger of burns! Allow the gas soldering iron to cool completely before changing the attachments.
- Page 11 Igniting and extinguishing the fl ame Igniting the flame Continuous flame Regulating the flame 1. Push the flame regulator (5) to the maximum setting 2. Periodic operation • Pull the ignition switch (7) to ignite the flame. • Release the ignition switch to extinguish the flame. 3.
- Page 12 Shutting down the device safely (Figure G) A stand is integrated in the ignition switch to rest the device safely. Always use the tool rest when putting the item down. Protective cap (Figure H) The contents include a protective cap (15) Use the protective cap to safely rest the hot device and to prevent mechanical hazards.
- Page 13 6. Disposal Worn out appliances must be recycled at a suitable recycling facility. Do not dispose of with the household waste. For further information contact your local authority. Dispose of the packaging material according to the type of material and accordingly to any local regulations. Instructions for disposal of the gas cartridge Do not dispose of with the household waste.
- Page 14 Warranty period and legal claims based on defects The warranty period is not extended by the warranty. This also applies to replaced and repaired parts. Any damages and defects that may exist at the time of purchase must be notified immediately after removal from packaging. Any repairs arising after the expiry of the warranty period are chargeable.
- Page 15 Service Walter Werkzeuge Service Center E-Mail: service@walteronline.com Tel.: 00800 925 837 88 IAN 291792 Supplier: Please note that the following address is not a service centre address. Please contact the above-mentioned service centre first. Walter Werkzeuge Salzburg GmbH Gewerbeparkstr. 9...
- Page 16 Walter Werkzeuge Salzburg GmbH Gewerbeparkstrasse 9 5081 Anif, Austria V. 1.0 Last Information Update: 02/2018 IAN 291792...
