VALBERG WF 612 C W566C (987501) Manual

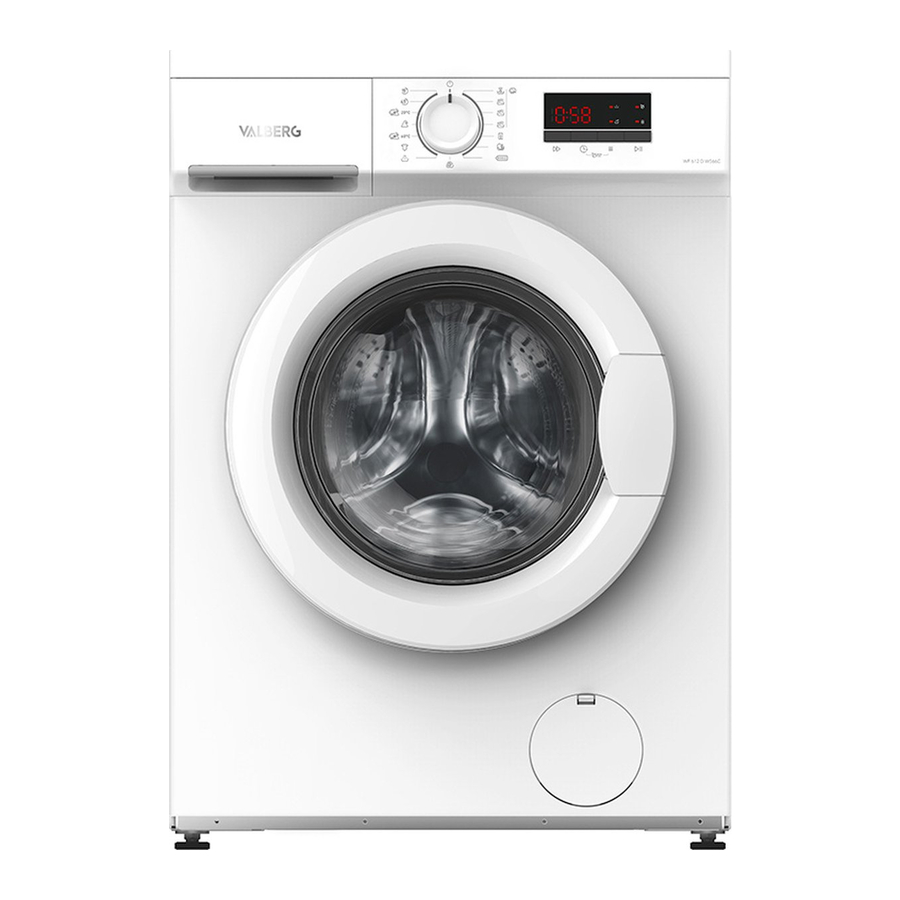

Product overview

Parts

1. Top cover
2. Control panel
3. Power supply cord
4. Drum
5. Drain hose
6. Service flap
7. Door
8. Detergent dispenser
9. Water supply hose
10. 4 x Cover caps
11. 1 x Supply hose cold water
12. Acoustic sponge

Note:

• The product picture is for illustration only, please refer to real product as reference.

Specifications

Dimension

1. 595mm
2. 850mm
3. 400mm

Reference Dimension

4. 463mm
5. 421mm
6. 897mm
7. 152mm

Product usage

Installation

Installation area

• Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable.
• Make sure that the product does not stand onto the power cord.
• Make sure to maintain the minimum distances from the walls as shown in the picture.

Before installing the machine, the location characterized as follows shall be selected:

• Rigid, dry, and level surface
• Avoid direct sunlight
• Sufficient ventilation
• Room temperature is above 0°C
• Keep far away from the heat sources such as coal or gas burning appliances.

Unpacking the washing machine

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

• You must remove the transport bolts from the backside before using the product.

1. Loosen the 4 transport bolts with a spanner.
2. Remove the bolts including the rubber parts and keep them for future use.
3. Close the holes using the cover caps.

Levelling the washing machine

• The lock nuts on all four feet must be screwed tightly against the housing.

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

Connect the water supply hose

To prevent leakage or water damage, follow the instructions in this chapter.

• Do not kink, crush or modify water inlet hose.

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Note:

• Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

There are two ways to place the end of drain hose:

1. Put it into the water trough.
2. Connect it to the branch drain pipe of the trough.

Acoustic Sponge/Panel

Note:

• Please make sure to assemble the acoustic sponges/panel, which can effectively reduce the noise caused by the machine while working, in order to provide you with a more peaceful and quiet living environment.

1. Get the machine laid on the floor, using some soft material like foam or clothes between the machine and floor for a protection;
2. Stick the 2x longer sponges to the longer bottom edges of machine, and the 2x shorter sponges to the shorter bottom edges.

Operation

Quick Start

• Before washing, please make sure the washer is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, recommended to clean the inner drum by running the "DRUM CLEAN" or other program with the optional temperature of 90°C. Be careful not to put laundry and detergent in the machine.

Calibration

• It's recommended to calibrate the machine, so that provide the best performance. The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.

1. Remove all accessories from the drum and close the door;
2. Insert the mains plug to the socket;
3. Switch on the machine and within 10 seconds, press "Delay" and "Extra Rinse" simultaneously (normally 3 seconds) until "t19" is displayed;
4. Press [] to start the appliance and wait till "****" is displayed, and then "***" (such as "126") is displayed to indicate the real time drum speed. If the machine is successfully calibrated, "PAS" will be displayed, otherwise, "FAL" will be displayed.

Before Washing

1. Plug in

2. Open tap

3. Load

4. Close door

5. Add detergent


Note:

• Detergent need to be added in compartment I if the pre-wash function is selected.
• When closing the door, please make sure that your clothes are not caught between the sealing ring and the machine door to prevent water leakage caused by pulling and damaging the sealing ring during operation.

Washing

1. Power on

2. Select programme

3. Select function or remain default settings

4. Press Start/Pause to start the program


After Washing
Buzzer beep and "End" on display.

Before Each Washing

• The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

1. Check the care label

2. Sort laundry according to color and textile type

3. Take all items out of the pockets

4. Tie together long textile strips and belts, close zips and button

5. Put small items into a laundry bag

6. Turn easy-pilling and long-pile fabric inside out


• Do not wash articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.
• Do not wash, spin water-proof seats, mats, or clothing.

Detergent Dispenser

	Pre wash
	Main wash
	Softener
	Release button to pull out the dispenser

• Detergent only need to be added in "compartment I" after selecting pre-wash function.

Control Panel

1. On/Off
   Turn the appliance on and off.
2. Pause/Start
   Start or pause your programme.
3. Option
   This allows you to select additional functions.
4. Programmes
   Available according to the laundry type.
5. Display
   The display shows settings, estimated remaining time, options and status messages.

Display

1. Display
   • Wash Time

   • Delay Time

   • Speed

   • Error

   • End

   • Temp.

2. Pre Wash
3. Wash
4. Rinse
5. Spin
6. Delay
7. Speed Wash
8. Child Lock
9. Door Lock
10. Extra Rinse

Detergent Recommendation

Note:

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

Following symptoms are a sign of detergent underdosing:

• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/ or the laundry

Programmes

Model: 987501 - WF 612 C W566C

	Programme	Load (kg)	Display Time
		6.0	6.0
	ECO 40-60	6.0	3:18
	20°C Care+	3.0	1:08
	Cotton	6.0	3:39
	Synthetic	3.0	3:18
	Mix	6.0	1:20
	Quick 15'	2.0	0:15
	Rapid 59'	2.0	0:59
	Drum Clean	--	1:18
	Spin Only	6.0	0:12
	Rinse & Spin	6.0	0:20
	Baby Care	6.0	2:01
	Sports	3.0	0:47
	Jeans	6.0	1:35
	Wool	2.0	1:07
	Duvet	2.5	1:27

Note:

• The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.

WF 612 C W566C
Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter/operalling cycle	Highest temperature°C(1)	Residual moisture in %/ spin speed in rpm(2)
ECO 40-60(3)	6.0	--	3:18	0.781	51.0	38	62.9%/1150
	3.0	--	2:36	0.450	40.0	31	62.9%/1150
	2.0	--	2:36	0.261	31.0	27	62.9%/1150
20°C Care+	3.0	20	1:08	0.189	41	20	65%/1000
Cotton	6.0	60	3:44	1.392	65	60	60%/1200
Mix	6.0	40	1:20	0.696	65	40	65%/1000
Quick 15'	2.0	Cold	0:15	0.030	31	Cold	70%/800
Baby Care	6.0	60	2:01	1.212	65	60	65%/1000

• The above data is for reference only, and the data may change due to different actual use conditions.
• The values given for programmes other than the ECO 40-60 programme are indicative only.
• 20°C is able to clean lightly soiled cotton laundry, at a nominal temperature of 20°C, which complies with the regulation (EU) 2019/2023.
• Compliant to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, (EU)2021/340,(EU)2021/341
  The EU energy efficiency class is: C
  Energy test program: ECO 40-60. Other as the default.
  Half load for 6.0kg machine: 3.0kg.
  Quarter load for 6.0kg machine: 2.0kg.

1. The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
2. Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
3. The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.
Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings.
Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

• If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

Programmes
Programmes are available according to the laundry type.

	Programmes
	ECO 40-60	Able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle.
	20°C Care+	Able to clean lightly soiled cotton laundry, at a nominal temperature of 20°C.
	Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
	Synthetic	Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
	Mix	Mixed load consisting of textiles made of cotton and synthetics.
	Quick 15'	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
	Rapid 59'	Washing few and not very dirty clothes quickly.
	Drum Clean	Specially set in this machine to clean the drum and tube. It applys 90°C high temperature sterilization to make the clothes washing more green. When this programme is performed, the clothes or other washing cannot be added. When proper amount of chlorine bleaching agent is put in, the barrel cleaning effect will be better. The customer can use this programme regularly according to the need.
	Spin Only	Spins and drains the water.
	Rinse & Spin	Rinses and then spins the laundry, and then drains the water.
	Baby Care	Washing the baby's clothes, it can make the baby's wear cleaner and make the rinse performance better to protect the baby skin.
	Sports	Washing the activewear.
	Jeans	Specially for jeans.
	Wool	Hand or machine-washable wool or richwool textiles. Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
	Duvet	This program is specially designed for washing duvet coats.

Note:

• Reference to your product to select the programmes.

Option

Note:

• For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment.

	Spin When needed, the spinning speed can be adjusted pressing the [Spin] button in the following steps: 1200: 0-600-800-1000-1200
	Delay Select a programme Press the Delay button to choose the delaying time 0-24H Press [Start/Pause] to start the delay operation To cancel the Delay function, press the "Delay" button before starting the program until the display shows 0 H. If the program has already started, switch the appliance off and afterwards on and select a new programme.
	Pre Wash Extra washing function before the main washing cycle starts to increase the washing performance. Note: Detergent needs to be added to the compartment I.
	Extra Rinse The laundry will undergo an extra rinse after selecting this function.
	Temp. When needed, the washing temperature can be adjusted by pressing the [Temp.] button in the following steps: Cold - 20°C - 30°C - 40°C - 60°C - 90°C.
	Steam Steam is applicable for daily laundries. The steam can deeply penetrate the fiber, which effectively eliminate bacterias and germs, preventing odors and protecting your health.
	Speed Wash The function can decrease the washing time.
	My Cycle To memory the frequently used programme. After choosing the programme and setting the options, press [Temp.] button for 3 sec. before start to wash. The default setting course is Cotton.
	Child Lock This function is meant to keep children from misusing the controls. Press [Extra Rinse] and [Steam] simultaneously for 3 sec until the buzzer beep. The child lock indicator switches on. When the Child Lock is activated, the display will alternately show "CL" and the remaining time. Pressing any other button will cause the Child Lock indicator to flash. When the program ends, "CL" and "End" will alternate on the display. The Child Lock deactivates the function of all buttons except the Child lock button! Only the simultaneous pressing of the two buttons can deactivate the Child Lock! Please deactivate the Child Lock before selecting a new program!
	Mute the buzzer To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset. After Muting the buzzer function, the sounds will not be activated any more.

Note:
Usage counter

1. Unplug the equipment for 10s and reconnect again.
2. Power on and within 10s, please press «Delay» and «Speed Wash» on control panel simultaneously and continuously for around 5s until the device display shows digits -- the value can indicate the times of equipment usage.
3. Repeat step 1 again and customer can resume to normal operation.

Cleaning and maintenance

• Always unplug the appliance and close the water tap before cleaning and maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

• Never use abrasive or caustic agents. formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

Note:

• Keep any laundry away from the machine while cleaning the drum.

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages.
Remove any coins, buttons and other objects from the seal after each wash.
Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

Cleaning the Inlet Filter

Note:

• Diminishing water flow is a sign that the filter need to be cleaned.

1. Close the tap and remove the water supply hose from it.

2. Clean the filter with a brush.

3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.

4. Use a brush to clean the filter.

5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Clean The Detergent Dispenser

1. Press down the release [] on the softener cover and pull the dispenser drawer out of the recess.

2. Lift the softener cover off the dispenser drawer and wash both items with water.

3. Clean the inside of the recess with a brush.

4. Restore the softener cover and push the drawer back into the recess.


Note:

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance.

Cleaning the Drain Pump Filter

• Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

1. Open the lower cover cap.

2. Open the filter by turning to the counter clockwise.

3. Remove extraneous matter.

4. Close the lower cover cap.


• When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

Trouble Shooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Error Codes

	Door is not closed properly	Close the door properly and restart.
	Water injecting problem during wash cycle.	Check if the water pressure is high enough. Straighten the water pipe. Clean the inlet valve filter.
	Overtime water draining	Check the drain hose for blockage.
	Water overflow	Restart the appliance.
	Others	Restart the appliance. If problem persists, please contact the customer service.

Risk of electric shock

• Never try repair an appliance which is defective of presumed to be defective. You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recogniced!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water inlet tap.
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see "Maintenance Cleaning the drain pump filter").
•
  Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

Product Fiche

Supplier's name or trade mark:
Supplier's address:
Model identifier: WF 612 C W566C
General product parameters:
