USER MANUAL
USER MANUAL
USER MANUAL
Power Input
Speed
100V-240V
20 mm/s
H105620D

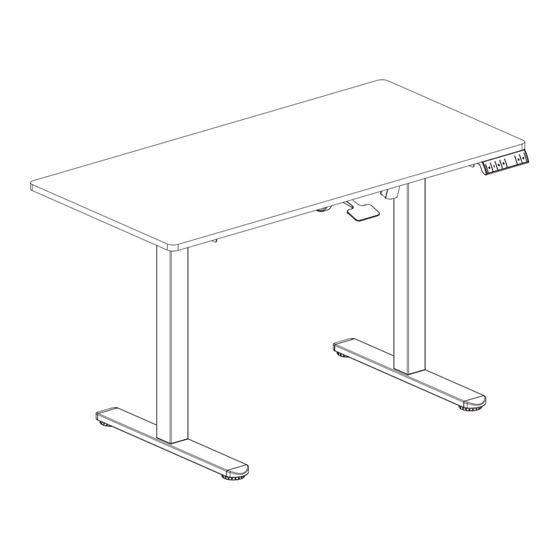

Sit and Stand Desk Frame Assembly Instruction
●
●
RATED
Motion Noise
Load Capability
154 lbs / 70 kg
＜55dB
3 Height Position Memory
Vertical Range: 73-119cm
CAUTION: DO NOT EXCEED
MAXIMUM LISTED WEIGHT
CAPACITY.SERIOUS INJURY
OR PROPERTY DAMAGE MAY
OCCUR!
V001-071724-JZ
1
Advertisement
Related Manuals for Bestier H105620D
Summary of Contents for Bestier H105620D
- Page 1 3 Height Position Memory ● Vertical Range: 73-119cm ● CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT RATED CAPACITY.SERIOUS INJURY OR PROPERTY DAMAGE MAY Power Input Speed Motion Noise Load Capability OCCUR! 100V-240V 20 mm/s 154 lbs / 70 kg ＜55dB H105620D...
- Page 2 COMPONENT LIST Desktop (x1) Crossbar (x1) Left Side Plate (x1) Right Side Plate (x1) Transmission rod (x1) Handle (x1) Left Table Leg (x1) Right Table Leg (x1) Leg Base (x2) Controller (x1) Power (x1) Connection lines 1M (x1)
- Page 3 HARDWARE LIST Screws Screws M6×11mm (x20) M5×12mm (x13) Foot pads (x4) Allen Key Allen Key Cable Clip (x2) S=2mm (x1) S=5mm (x1) M14 (x1) Spare Parts M6×11mm (x2) M5×12mm (x2)
- Page 4 Step 1 Step 1 Step 1 Step 1 Step 1 M6×11mm(x4) S=5mm S=5mm Step 2 Step 2 Step 2 M6×11mm(x8) Foot pads (x4) Turn over S=5mm S=5mm Step 1...
- Page 5 Step 3 M6×11mm(x4) S=5mm S=5mm Step 4 S=2mm...
- Page 6 Step 5 M6×11mm(x4) S=5mm S=5mm Step 6 M5×12mm(x13) Turn over...
- Page 7 Step 7 Cable Clip (x2) Step 8 90° Turn over 0° Press the handle to turn the table board from 0°~90°...
- Page 8 Controller Introduction Short press the button,the display flashes,Press any of memory key to save the height. Short press the button,the display flashes,Press any of memory key to save the height. Memory button: Press the button until the number appears,it runs to corresponding height and displays current position.
- Page 9 Love coming home. Comfort Zone Co.,Limited RM1903 19F BeiYou technology Building, Yuehai Street, No.42 Gaoxin South Ring Road,Nanshan,Shenzhen CUSTOMER SUPPORT 售后联系方式 Europe North American Asia Service.UK@bestier.net Service.DE@bestier.net 04-8888-0283 888-666-1086 Service.US@bestier.net Service.FR@bestier.net Service.IT@bestier.net Service.JP@bestier.net Service.ES@bestier.net Global Service@bestier.net 国内 电话： 0755-26917626 邮箱： sskj@bestier.net...
