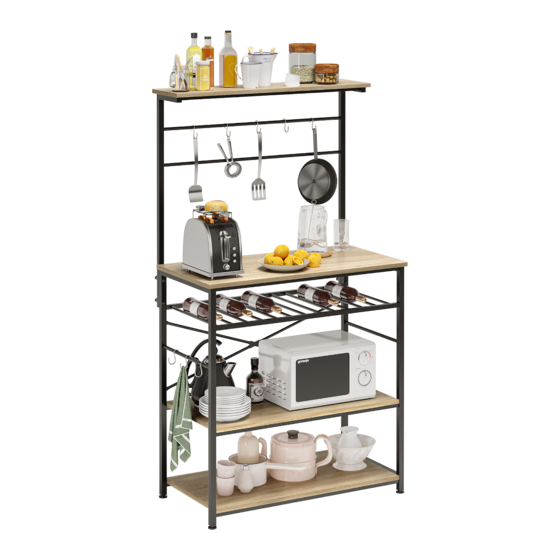

Standing Baker's Rack

Know more about Bestier from

080321

CUSTOMER SUPPORT

PHONE: 888-666-1086

EMAIL: Service@bestier.net

Thanks for choosing Bestier!

Feel free to contact us if you need any help.

Please kindly share your shopping experience

with us on the platform if you are satisfied with it.

C068D

ASSEMBLY

INSTRUCTION

Need help?

Do you have a question about the C068D and is the answer not in the manual?

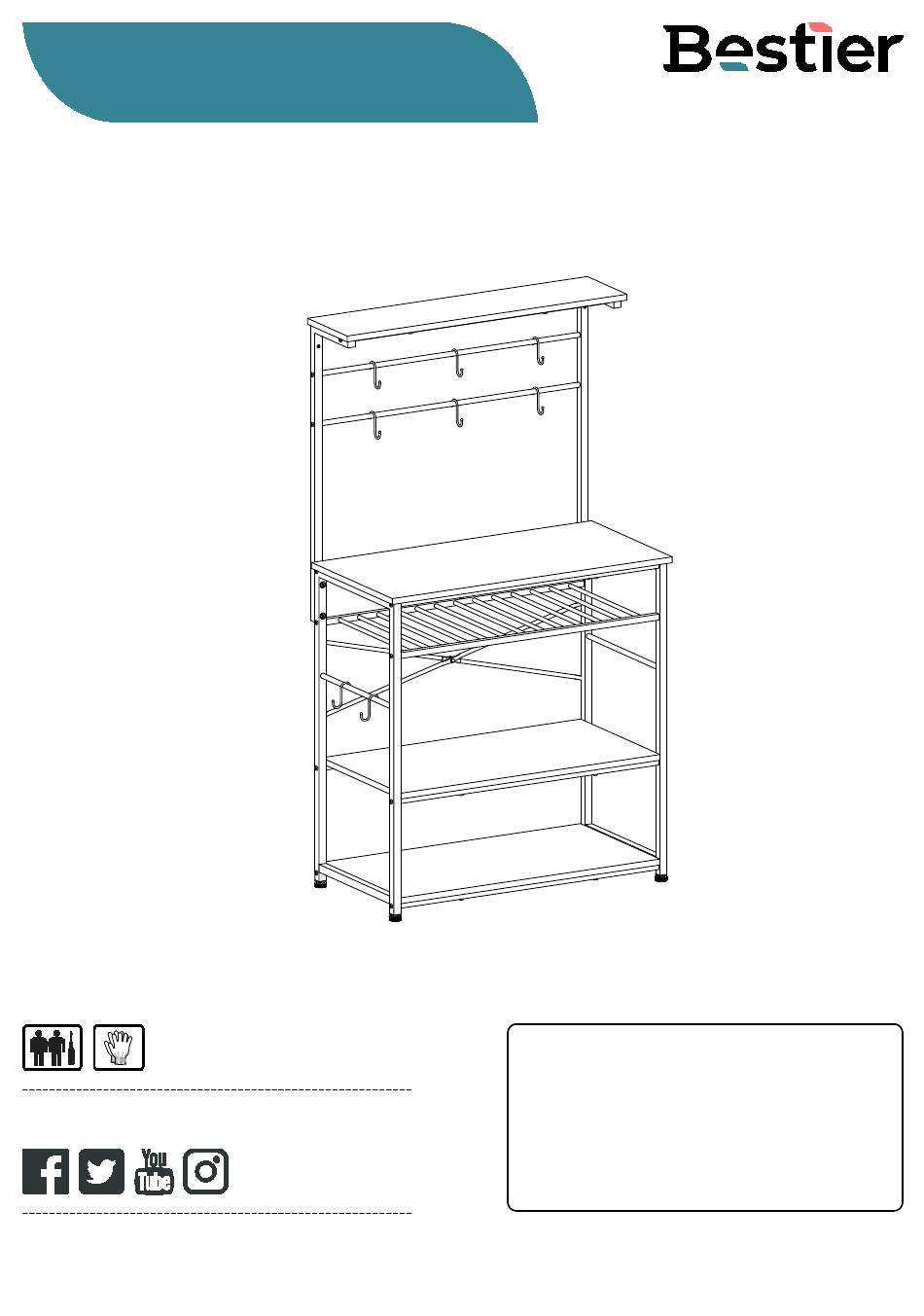

Page 1 CUSTOMER SUPPORT CONTACT US BY: PHONE: 888-666-1086 EMAIL: Service@bestier.net Know more about Bestier from Thanks for choosing Bestier! Feel free to contact us if you need any help. Please kindly share your shopping experience with us on the platform if you are satisfied with it.
Page 2: Helpful Hints
Identify, sort and count all the parts with tags. Find out installation position according to the drawing and install it in correct steps. OTHER People needed for assembly: 1-2 Estimated assembly time: 0.5-1h DETAILS UNIT:INCH 20lbs 50lbs 30lbs 30lbs 30lbs C068D...
Page 3: Part List
PART LIST ACCESSORY LIST PICTURE SIZE PICTURE SIZE M6x15mm M5x50mm M6x30mm Ø30 M6x35mm M6x23mm C068D...
Page 4 STEP 1 KEEP HOLES FOR UPPER FRAME AND "X" TENSION BAR OUTSIDE FRONT M6x30mm Ø30 STEP 2 FRONT M6x15mm M6x23mm C068D...
Page 5 STEP 3 M6x15mm M6x30mm STEP 4 NOTES ： 1.Please insert C# Allen bolts into holes. 2.Fix the C# Allen bolts with your hand ,then insert D# T-nuts and tighten by J# Allen Wrench . FRONT M6x35mm C068D...
Page 6 STEP 5 CONGRATULATIONS, YOUR BESTIER STANDING BAKER'S RACK IS NOW COMPLETE! M6x30mm M6x23mm C068D...
Page 7 WALL 1.Drill 2 holes (Dia.5/16") in the wall WALL 2.Use rubber mallet for tapping K# Plastic Wall Anchor 3. Now connect the frame to Plastic Wall Anchor with G# screw and tighten as desired before locking in place. M5x50mm C068D...
Page 8 C068D...
