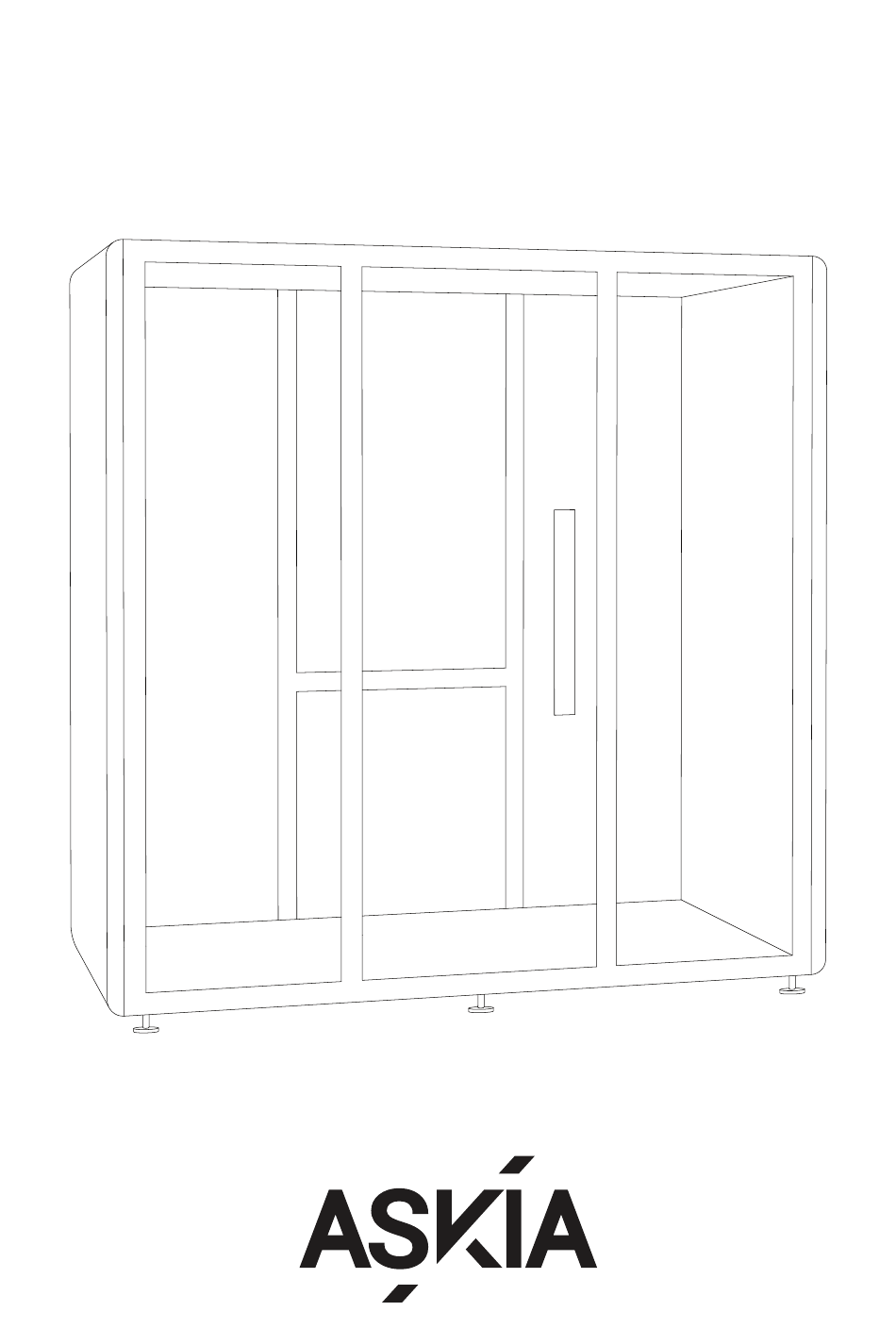

- Page 1 Kameleon K2/K2+ ASSEMBLY INSTRUCTIONS ACOUSTIC PODS...
- Page 2 Info. ASSEMBLY INSTRUCTIONS Steps. Ethernet Pay attention to. Bag with screws. Power Unlocked. Pay attention to. Lock. Ventilation Level check. Air Ionizer Allen key needed. Allen key and screws needed. Don’t. Lighting T-Handle hex key needed. Pay attention not Motion sensor T-Handle hex key and screws needed.
- Page 3 Assembly in 65 min. with 3 people Included x1 Allen Key 2 x1 Allen Key 3 x1 T-Handle Hex Key 4 x1 T-Handle Hex Key 5 x1 T-Handle Hex Key 7 x1 Ceiling Panels Adjuster x2 Sucction cups Not Included Screwdriver...
- Page 4 Elements x2 Interior Panels x1 Left & x1 Right Structure Panels x1 Left & x1 Right Back Glass Walls x1 Left & x1 Right Front Glass Walls x1 Center Back Glass Wall x1 Ceiling x3 Acoustic Felt Ceiling Panels x2 Media adjuster x3 Carpet, x2 Dividers x1 Floor x1 Door Frame...
- Page 5 T-Handle Hex Key 4...
- Page 6 x16 with T-Handle Hex Key 4...
- Page 7 Recommendation It is recommended to start with the Center Back Glass Wall. T-Handle Hex Key 7 Sucction cup handles Inside *Ensure the power cables are matched according to the labels (color, symbol and letter)
- Page 8 T-Handle Hex Key 7 Sucction cup handles Inside Outside...
- Page 9 Recommendation It is recom ended to start with the Door Frame. Sucction cup handles The door opening can be oriented Left or Right just by rotating the frame.
- Page 10 x6 with T-Handle Hex Key 4 x2 with Allen Key 3 Exterior Interior Exterior Interior...
- Page 11 Pay attention not to break the glass door. Pay attention not to break the glass door. Adjust the glass door if Check if the glass door necessary. hits the frame edge before closing it. Allen Key 3 Allen Key 2 Bottom To adjust the glass door the height must be calibrated.
- Page 12 T-Handle Hex Key 7 Sucction cup handles Inside Outside...
- Page 13 The Main Power and Ethernet supply are located at the front of the pod.
- Page 14 How to remove the Interior Panel.
- Page 15 How to place the Acoustic Felt Ceiling Panels. How to remove or adjust the Acoustic Felt Ceiling Panels. If you are satisfied with the pod’s position, you can place the carpets. If you want to reposition the pod, you have to remove the carpet, if needed, and unlock the legs.
- Page 17 Scan You can watch an instructional video of the K2 assembly process. Thanks to the modular design and limited number of components used for each pod, many steps are similar between different Kameleon pods. Optional VESA Adapter Coat Hanger Exterior Hanging Interior Hanging Whiteboard or Pinboard Whiteboard or Pinboard...
- Page 18 Optional...
- Page 20 Eliade Tower, Mircea Eliade No.18 RO-Bucharest, 012015 T +40 212 121 381 contact@askiafurniture.ro www.askiafurniture.ro Last update: 10.12.2024...
