Kameleon K7 Glass

ASSEMBLY INSTRUCTIONS

ACOUSTIC PODS

Need help?

Do you have a question about the Kameleon K7 Glass and is the answer not in the manual?

Questions and answers

Summary of Contents for Askia Kameleon K7 Glass

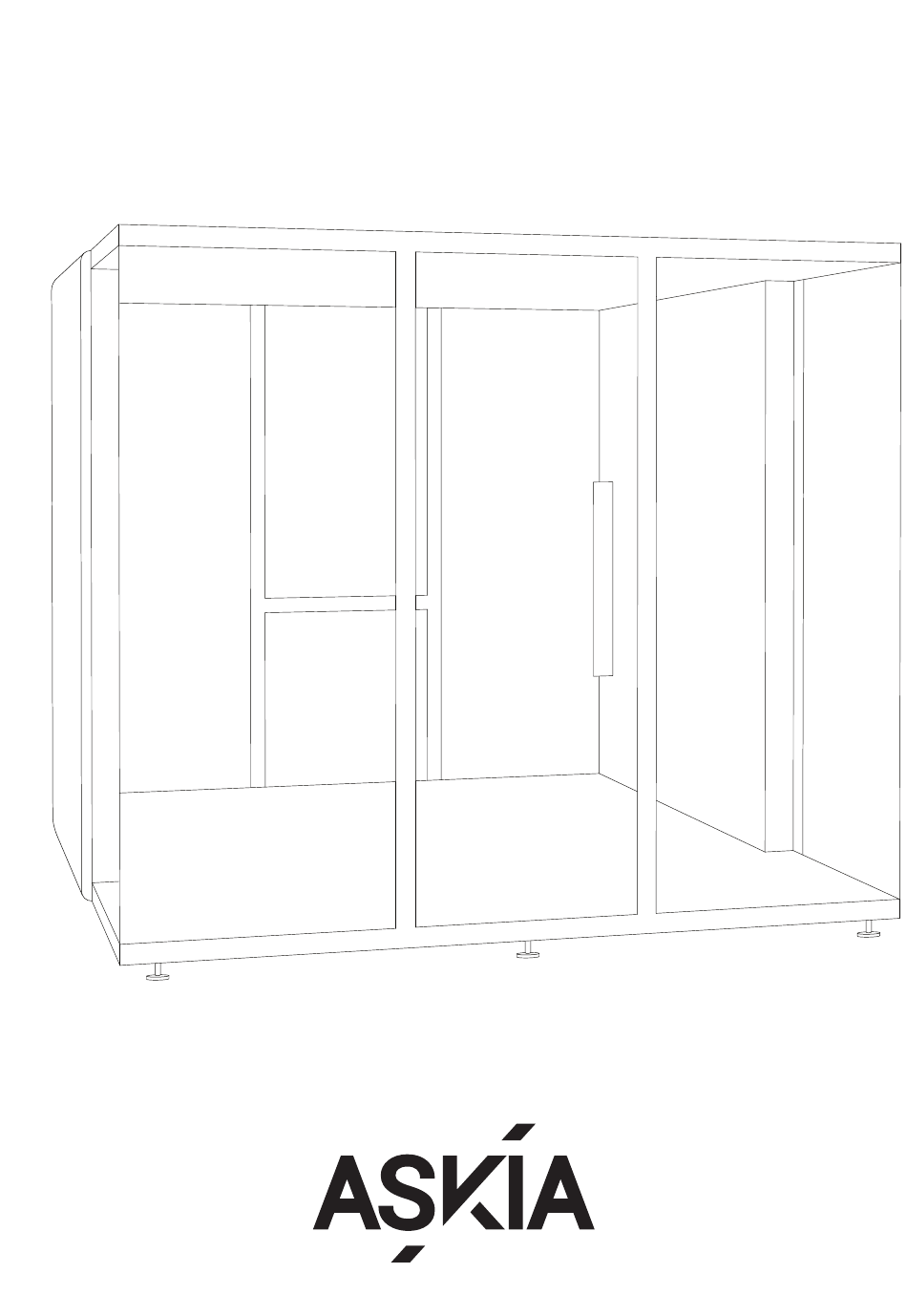

Page 1 Kameleon K7 Glass ASSEMBLY INSTRUCTIONS ACOUSTIC PODS...
Page 3 Info. ASSEMBLY INSTRUCTIONS Steps. Ethernet Pay attention to. Bag with screws. Power Unlocked. Pay attention to. Lock. Ventilation Level check. Air Ionizer Allen key needed. Allen key and screws needed. Don’t. Lighting T-Handle hex key needed. Pay attention not Motion sensor T-Handle hex key and screws needed.
Page 4 Assembly in 225 min. with 3 people Included x2 Sucction cups x1 Allen Key 2 x1 Allen Key 3 x1 T-Handle Hex Key 4 x1 T-Handle Hex Key 5 x1 T-Handle Hex Key 7 x1 Ceiling Panels Adjuster...
Page 5 Elements x6 Interior Panels x1 Left Back x2 Left & x3 Right Structure Panels x1 Left & x1 Right Back Glass Walls x1 Center Back Glass Wall x1 Left & x1 Right Front Glass Walls x2 Ceiling Coupling connections x3 Ceiling x9 Acoustic Felt Ceiling Panels x9 Carpet, x6 Dividers x1 Left &...
Page 6 T-Handle Hex Key 4...
Page 7 x16 with T-Handle Hex Key 4...
Page 8 Left Bottom x8 with T-Handle Hex Key 4 Bottom...
Page 9 Bottom T-Handle Hex Key 7 Bottom Inside Outside...
Page 10 T-Handle Hex Key 4 T-Handle Hex Key 7 Inside *Ensure the power cables are matched according to the labels (color, symbol and letter)
Page 11 x16 with T-Handle Hex Key 4 T-Handle Hex Key 7 Inside Outside...
Page 12 Bottom x8 with T-Handle Hex Key 4 Bottom...
Page 13 Bottom T-Handle Hex Key 7 Bottom Inside Outside...
Page 14 T-Handle Hex Key 4 T-Handle Hex Key 7 Inside *Ensure the power cables are matched according to the labels (color, symbol and letter)
Page 15 x20 with T-Handle Hex Key 4 T-Handle Hex Key 7 Sucction cup handles Inside *Ensure the power cables are matched according to the labels (color, symbol and letter)
Page 16 Recommendation It is recommended to start with the Center Back Glass Wall. T-Handle Hex Key 7 Sucction cup handles Inside *Ensure the power cables are matched according to the labels (color, symbol and letter)
Page 17 T-Handle Hex Key 7 Sucction cup handles Inside Outside...
Page 18 13 13 Recomandation It is recomended to start with the Door Frame. Sucction cup handles The door opening can be oriented Left or Right just by rotating the frame.
Page 19 x6 with T-Handle Hex Key 4 x2 with Allen Key 3 Exterior Interior Exterior Interior...
Page 20 Pay attention not to break the glass door. Adjust the glass door Do not close until you accordingly if needed. check the glass door not to hit the door frame edge. Allen Key 3 Allen Key 2 Bottom To adjust the glass door the height must be calibrated.
Page 21 T-Handle Hex Key 7 Sucction cup handles Inside...
Page 22 The Main Power and Ethernet supply are located at the front of the pod.
Page 23 How to remove the Interior Panel.
Page 24 How to place the Acoustic Felt Ceiling Panels. How to remove or adjust the Acoustic Felt Ceiling Panels. If you are satisfied with the pod’s position, you can place the carpets. If you want to reposition the pod, you have to remove the carpet, if needed, and unlock the legs.
Page 26 Optional...
