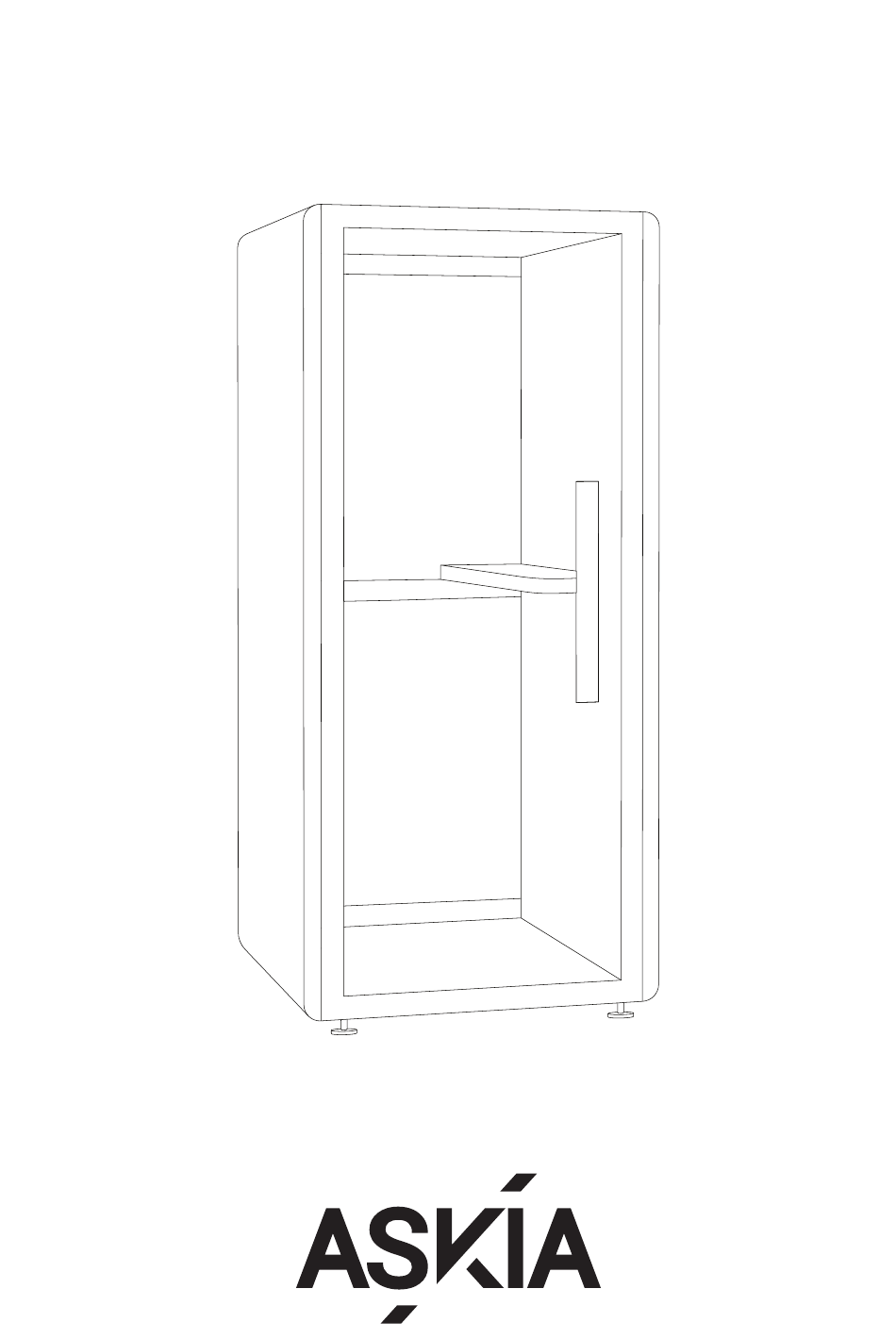

- Page 1 Kameleon K1 - Solid Back ASSEMBLY INSTRUCTIONS ACOUSTIC PODS...
- Page 2 Info. ASSEMBLY INSTRUCTIONS Steps. Ethernet Pay attention to. Bag with screws. Power Unlocked. Pay attention to. Lock. Ventilation Level check. Air Ionizer Allen key needed. Allen key and screws needed. Don’t. Lighting T-Handle hex key needed. Pay attention not Motion sensor T-Handle hex key and screws needed.
- Page 3 Assembly in 40 min. with 2 people Included x1 Allen Key 2 x1 Allen Key 3 x1 T-Handle Hex Key 4 x1 T-Handle Hex Key 5 x1 T-Handle Hex Key 7 x1 Ceiling Panels Adjuster x2 Sucction cups Not Included Screwdriver...
- Page 4 Elements x2 Middle x1 Exterior Back x1 Middle Structure Panel Back Panels Panel x1 Left & x1 Right Interior Panel x1 Left & x1 Right Structure Panels x1 Door Frame x2 Exterior Panel x1 Ceiling x3 Acoustic Felt Ceiling Panels x1 Carpet x1 Door Handle x1 Table...
- Page 5 T-Handle Hex Key 4...
- Page 6 x16 with T-Handle Hex Key 4...
- Page 7 T-Handle Hex Key 7 Sucction cup handles Inside *Ensure the power cables are matched according to the labels (color, symbol and letter)
- Page 8 T-Handle Hex Key 7 Sucction cup handles Outside The door opening can be oriented Left or Right just by rotating the frame.
- Page 9 x6 with T-Handle Hex Key 4 x2 with Allen Key 3 Exterior Interior Exterior Interior...
- Page 10 Pay attention not to break the glass door. Pay attention not to break the glass door. Check if the glass door Adjust the glass door if hits the frame edge necessary. before closing it. Allen Key 3 Allen Key 2 Bottom To adjust the glass door the height must be calibrated.
- Page 11 The Main Power and Ethernet supply are located at the front of the pod.
- Page 12 How to remove the Interior Panel.
- Page 13 How to place the Acoustic Felt Ceiling Panels. How to remove or adjust the Acoustic Felt Ceiling Panels. If you are satisfied with the pod’s position, you can place the carpets. If you want to reposition the pod, you have to remove the carpet, if needed, and unlock the legs.
- Page 14 How to remove the Interior Panel.
- Page 15 x2 with T-Handle Hex Key 5 T-Handle Hex Key 7 Screwdriver (Not Included)
- Page 17 Scan You can watch an instructional video of the K1 assembly process. Thanks to the modular design and limited number of components used for each pod, many steps are similar between different Kameleon pods. Optional VESA Coat Exterior Hanging Interior Hanging Adapter Hanger Whiteboard or Pinboard...
- Page 20 Eliade Tower, Mircea Eliade No.18 RO-Bucharest, 012015 T +40 212 121 381 contact@askiafurniture.ro www.askiafurniture.ro Last update: 10.12.2024...
