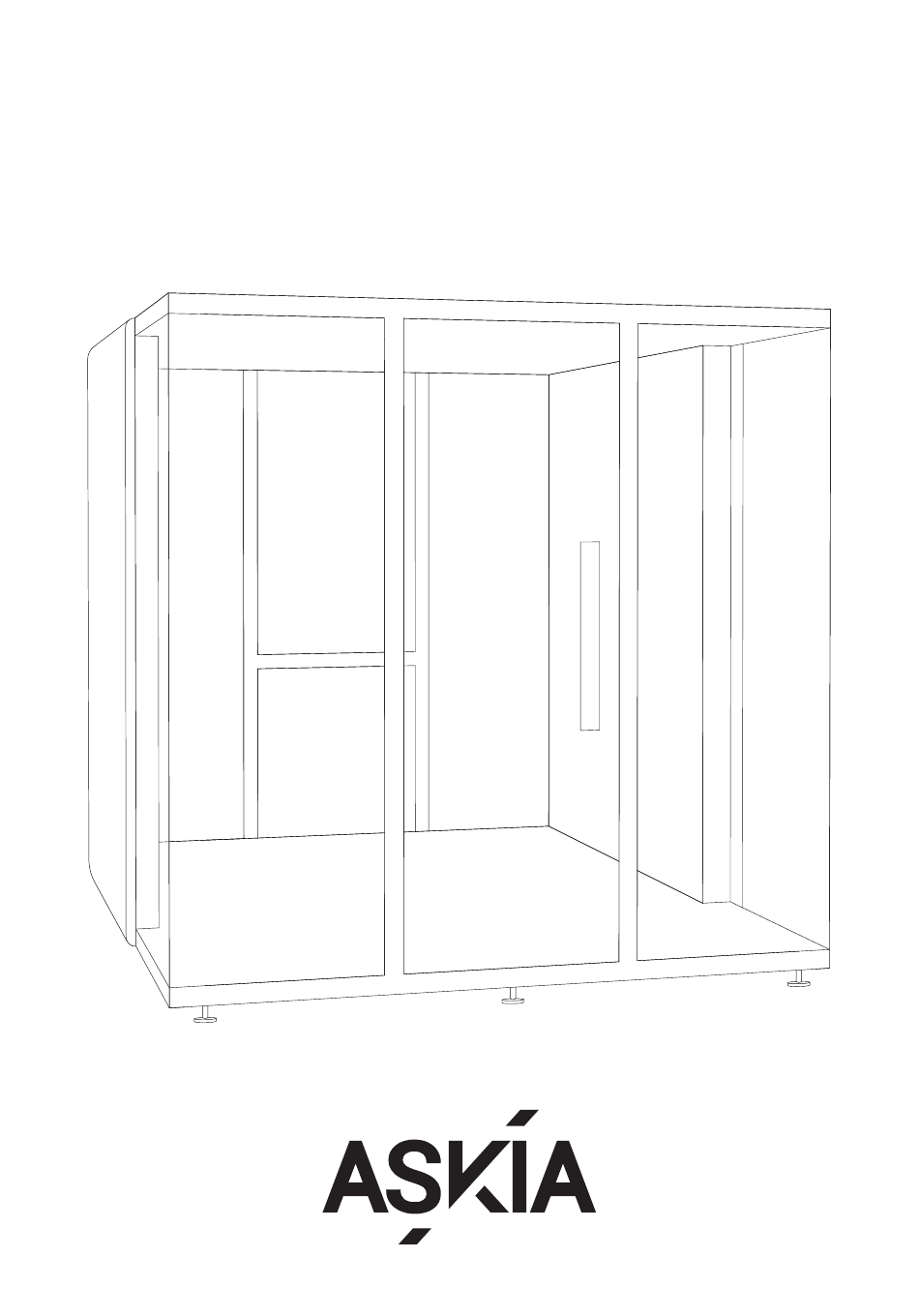

  • Page 1 All manuals and user guides at all-guides.com Glass Kameleon ASSEMBLY INSTRUCTIONS ACOUSTIC PODS...
  • Page 2 All manuals and user guides at all-guides.com Included x1 Allen Key 1.5 x1 Allen Key 3 x1 T-Handle Hex Key 4 x1 T-Handle Hex Key 5 x1 Ceiling Panels Adjuster x2 Sucction cups...
  • Page 3 All manuals and user guides at all-guides.com Elements x4 Interior Panels x2 Left & x2 Right Structure Panels x1 Left & x1 Right Glass Panels x1 Left & x1 Right Back Glass Walls x1 Center Back Glass Wall x2 Ceiling Coupling connection x3 Ceiling x9 Acoustic Felt Ceiling Panels x9 Carpet, x6 Dividers...
  • Page 4 All manuals and user guides at all-guides.com T-Handle Hex Key 5...
  • Page 5 All manuals and user guides at all-guides.com x16 with T-Handle Hex Key 4...
  • Page 6 All manuals and user guides at all-guides.com Bottom x8 with T-Handle Hex Key 4 Bottom...
  • Page 7 All manuals and user guides at all-guides.com Bottom T-Handle Hex Key 4 Bottom Inside Outside...
  • Page 8 All manuals and user guides at all-guides.com T-Handle Hex Key 5 Intside...
  • Page 9 All manuals and user guides at all-guides.com x16 with T-Handle Hex Key 4 Inside Outside...
  • Page 10 All manuals and user guides at all-guides.com Left Bottom x8 with T-Handle Hex Key 4 Connect Bottom...
  • Page 11 All manuals and user guides at all-guides.com Bottom T-Handle Hex Key 4 Bottom Inside Outside...
  • Page 12 All manuals and user guides at all-guides.com T-Handle Hex Key 5 Intside...
  • Page 13 All manuals and user guides at all-guides.com x20 with T-Handle Hex Key 4 Sucction cup handles Inside...
  • Page 14 All manuals and user guides at all-guides.com Recomandation It is recomended to start with the Center Back Glass Wall. T-Handle Hex Key 4 Sucction cup handles Inside...
  • Page 15 All manuals and user guides at all-guides.com T-Handle Hex Key 4 Sucction cup handles Inside Outside...
  • Page 16 All manuals and user guides at all-guides.com Recomandation It is recomended to start with the Door Frame. T-Handle Hex Key 4 Sucction cup handles The door opening can be oriented Left or Right just by rotating the frame.
  • Page 17 All manuals and user guides at all-guides.com x6 with T-Handle Hex Key 4 x2 with Allen Key 3 Exterior Interior Exterior Interior...
  • Page 18 All manuals and user guides at all-guides.com Pay attention not to break the glass door. Adjust the glass door Do not close until you accordingly if needed. check the glass door not to hit the door frame edge. Allen Key 3 Allen Key 1.5 Bottom To adjust the glass door the height must be...
  • Page 19 All manuals and user guides at all-guides.com T-Handle Hex Key 4 Sucction cup handles Inside...
  • Page 20 All manuals and user guides at all-guides.com Orange Black Main Poewr & Enthernet supply at the back of the pod. Check if the lighting, ventilation and power sockets are conected propperly.
  • Page 21 All manuals and user guides at all-guides.com How to remove the Interior Panel.
  • Page 22 All manuals and user guides at all-guides.com How to place the Acoustic Felt Ceiling Panels. How to remove or adjust the Acoustic Felt Ceiling Panels.
  • Page 23 All manuals and user guides at all-guides.com...
  • Page 24 All manuals and user guides at all-guides.com If you want to reposition the pod, you have to remove the If you are satisfied with the pod’s carpet, if needed, and unlock the legs. When you are satisfied position, you can place the carpets. with the pod’s position, lock the legs and place the carpets.
  • Page 25 All manuals and user guides at all-guides.com Scan You can watch an instructional video of the K1 assembly process. Thanks to the modular design and limited number of components used for each pod, many steps are similar between different Kameleon pods. Optional VESA Adapter Coat Hanger...
  • Page 26 All manuals and user guides at all-guides.com Info. ASSEMBLY INSTRUCTIONS Steps. Main Inthernet supply. Pay attention to. Bag with screws. Main Power supply. Unlocked. Pay attention to. Lock. Ventilation coupling. Level check. Power coupling. Allen key needed. Allen key and screws needed. Don’t.
  • Page 27 All manuals and user guides at all-guides.com Eliade Tower, Mircea Eliade No.18 RO-Bucharest, 012015 T +40 212 121 381 contact@askiafurniture.ro www.askiafurniture.ro Last update: 01.07.2021...
