There are two modes: "Auto" and "Manual". In automatic mode, the following "horizontal
start, vertical start, image width, image height, phase" setting parameters do not work; only in
manual mode, The parameters set below are valid.
When the connected VGA signal is output by the video processor in automatic mode by
default, if the image output to the LED screen is normal, there is no need to modify it; if the
image output to the LED screen is missing, offset, etc., then Need to modify the parameters
manually.

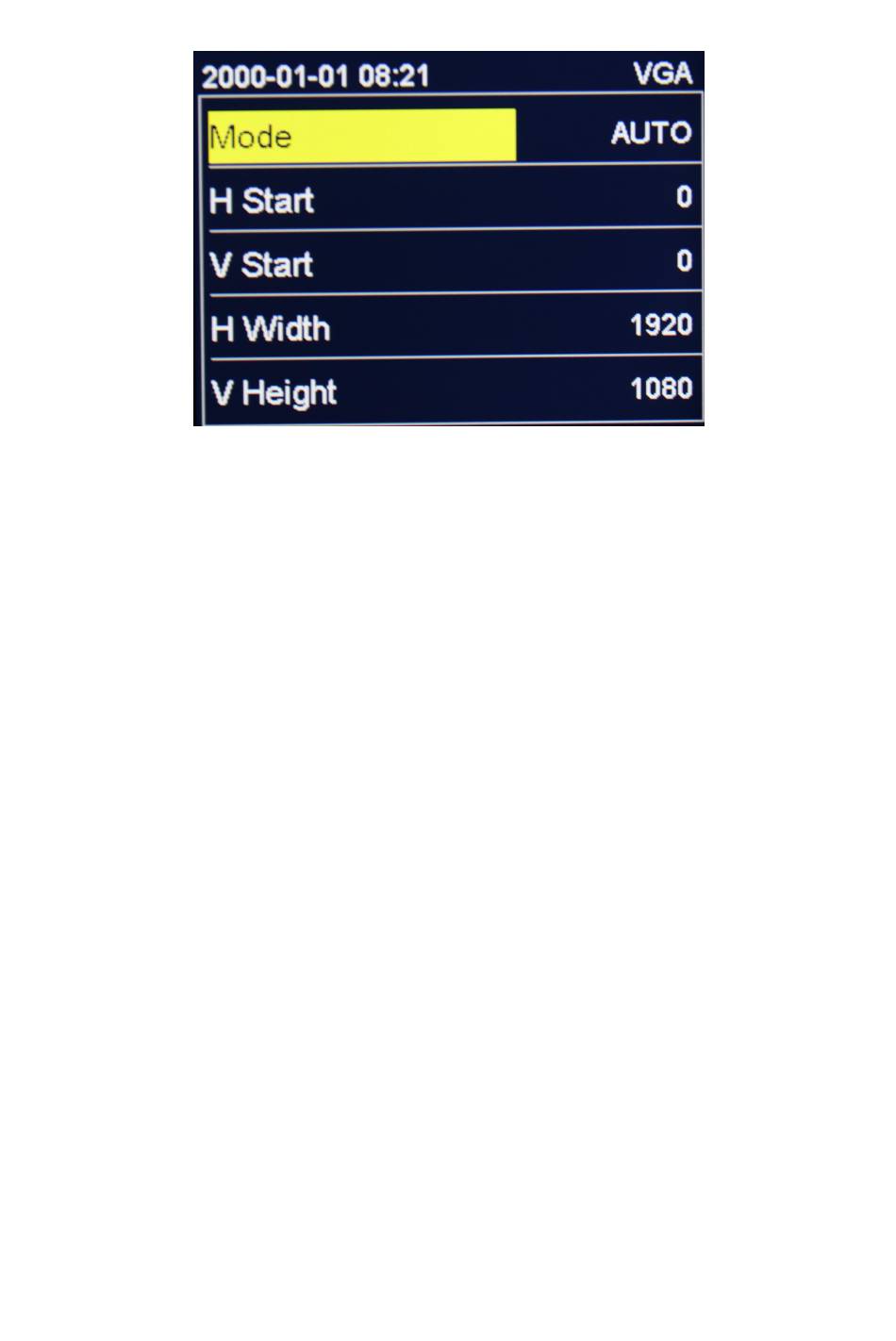

Switch to "Manual" mode, visually inspect the image on the LED screen, adjust the
"horizontal start, vertical start, image width, image height" parameter values through the
knob, modify one by one, set when the visual image is displayed to the appropriate position.
Phase is to improve the output to the LED screen when there is an abnormal display (such
as flash point, blurry), and the value can be adjusted from 0 to 2500.。
Switching Effects
Special effects for switching between input signals, the default "fade in and fade out"
effect, you can switch the "seamless switching" effect.
