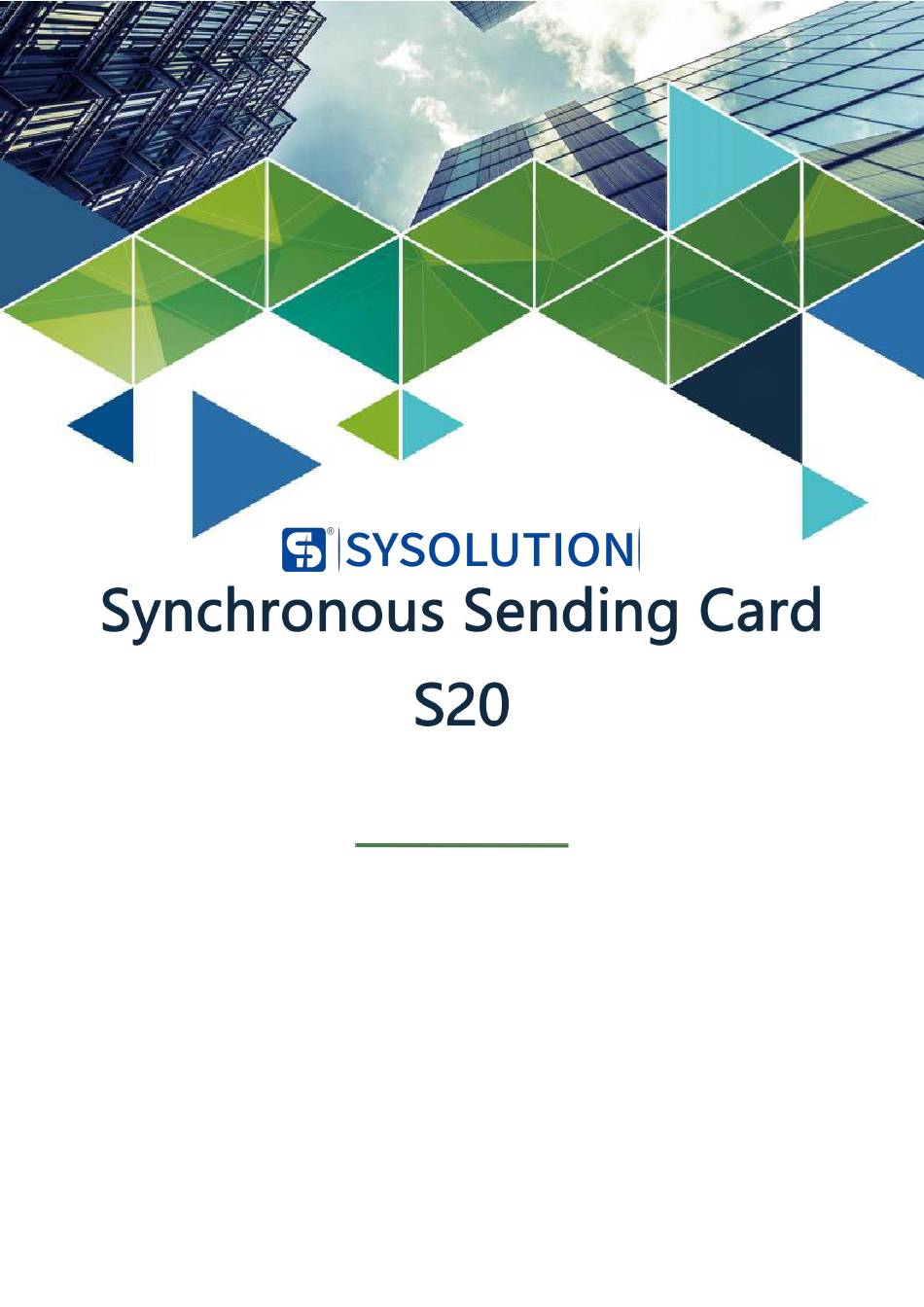

- Page 1 Instructions Versions ：Ver.1.0...
-
Page 2: Table Of Contents
Catalogue Chapter 1 Operating Environment ..................... 1 1. Hardware Environment ....................... 1 2. Software Environment ......................1 Chapter 2 Hardware Connection ....................1 Step 4：Graphics card settings ..................2 Chapter 3 Screen Configuration ....................5 1. Send card settings ........................ 5 2. Normal Configuration ......................8 3. -
Page 3: Chapter 1 Operating Environment
USB cable, see Figure 2-1. 2-1：Hardware Connection Diagram Step 2：Apply power to the receiver card and the large screen for debugging, and connect the sending card and receiving card with a Category 568B network cable. When the indicator www.sysolution.net... -
Page 4: Step 4：Graphics Card Settings
Configure with LedSet4.0 to confirm whether communication is established with the sending card and receiving card, see Figure 2-2: 2-2：Communication status between software and sending card Tip：Confirm whether the display card is set up properly through the debugging software, as shown in Figure 3-2. Step 4：Graphics card settings www.sysolution.net... - Page 5 "Display Interface", pull down the window to find multiple monitors, and select "Duplicate these monitors" in the pull-down list, as shown in Figure 2-3. Or just hold down the windows key + P key and click Copy. As shown in Figure 2-4. www.sysolution.net...
- Page 6 4.3.1 ATI Graphics Card：Right click on the blank space on the desktop --- Properties -- - Settings --- Advanced --- Enter Graphics Card Driver Control Panel ---- Display Management ---- and right click to replication. As shown in Figure 2-6 www.sysolution.net...
-
Page 7: Chapter 3 Screen Configuration
Therefore, it is necessary to change the DVI signal connected to the sending card or change the resolution of the sending card itself www.sysolution.net... - Page 8 DVI signal. After debugging the Sending Card, click the Cure button to save and cure the parameters of the Sending Card. 3-1-1 www.sysolution.net...
- Page 9 Cure button to save the adjustment effect to the sending card. See Figure 3-1-2: 3-1-2 Note： When the display is spliced using a sending card, the product of the horizontal and vertical resolutions must be less than 2.3 million. 4) Enable Audio Transmission www.sysolution.net...
-
Page 10: Normal Configuration
"Smart Setting" button on the left bottom corner to enter the Smart Parameter Setting Window, and input the corresponding parameters according to the actual situation of the current LED module. See Figure 3-2-1: 3-2-1 Module Width/Height ：Enter the actual pixel width/height of the current module. www.sysolution.net... - Page 11 LED chips are connected in series), then select "RGB serial". 2) The next step is to enter the Scan Line window. Select the scan lines according to the actual display of the current module. As Figure 3-2-2 below: 3-2-2 www.sysolution.net...
- Page 12 "Finish tracking", then click "ok" button, then send the data to the device, as shown in the following Figure 3-2-4 . www.sysolution.net...
- Page 13 The "Receiver Card Configuration" can be completed by Smart Setup, or by loading the module file through the preset "Select Module" (applicable to Receiver Card 1), or by loading the saved box module file through the "Open Configuration", as shown in Figure 3-2-5 below. www.sysolution.net...
- Page 14 1) In the box design column, select "General Design" and click the Modify button to set the box width and height, as well as the cascade mode and output mode according to the actual load of the receiver card. As shown in Figure 3-2-6 below. 3-2-6 www.sysolution.net...
- Page 15 Click the Advanced Layout button to enter the box layout editing interface, where you can construct the complex box. See Figure 3-2-7 below. 3-2-7 HUB port switching ： Select the corresponding module and change it directly to the actual HUB port in the HUB column, or move the module for switching. www.sysolution.net...
- Page 16 Similarly, after defining all the HUB addresses, close the "Data Line Test" button. Finally, click "Finish Edit" button to exit the data line exchange editing interface. 3-2-8 3) If you are not satisfied with the display effect, you can change the parameters manually, as shown in Figure 3-2-9 below. www.sysolution.net...
- Page 17 Generally 12~14bit, 12bit grey scale is equal to 212th grey scale is equal to 4096 levels of grey scale. Data Clock Phase ：Set the starting point of clock timing. Adjust this item if the screen has abnormal phenomena such as flashing dot and splash screen. Generally 12.5~17.86. www.sysolution.net...
-
Page 18: Display Connection
2.3. Display connection 1) After the user has configured the receiver card file, click the "Display Connection Button" in the menu bar of the receiver card configuration interface to enter the display window interface. The figure below is 3-2-10. www.sysolution.net... - Page 19 If it is not the same, please check whether the hardware connection is normal or not, when connecting more than one transmitter card, please switch the transmitter card and find the corresponding transmitter card for debugging. Load from File ：Loads the display configuration file saved on the control computer. www.sysolution.net...
- Page 20 Figure 3-2-11 below. 3-2-11 Click the Refresh button to refresh the receiver cards carried by the sending card. Tick the Start transmitter card detection checkbox. When selecting a sender card, the area of the www.sysolution.net...
- Page 21 Screenshot :. If you see the page with the configured display connections, you can modify it according to the actual situation or click the Reset All button to reset the settings.Starting Position ： The position of the LED display that intercepts the input www.sysolution.net...
- Page 22 Connecting a splitter：If a splitter is connected to the big screen, you can do the following. 1) Tick the "Connect Splitter" checkbox in the display connection interface. 2) Select the transmitter card to access the network port and configure the "splitter" address. 3) Select "Splitter Address" for display connection. Figure 3-2-13 below: www.sysolution.net...
-
Page 23: Brightness And Gamma Adjustment
3-2-13 3. Brightness and Gamma Adjustment Click the "Screen Control" option in the main interface to enter the brightness adjustment interface, as shown in Figure 3-3 below. www.sysolution.net... -
Page 24: Cable Backup And Dvi Backup
In case of accidental disconnection of one of the network cables in the loop, the transmitter card will take over the part of the receiver card after the disconnection of the network cable in time to ensure that the big screen is still displayed normally. www.sysolution.net... - Page 25 (loop) cable to realise the function of dual sender cards with the same port backup. www.sysolution.net...
- Page 26 When "Video Processor 1" disconnects the DVI signal input to "Transmitter 1", the system automatically switches to the DVI signal of "Transmitter 2" and the DVI signal of "Video Processor 2", thus forming a double backup of DVI signals. www.sysolution.net...
-
Page 27: Chapter Iv. Frequently Asked Questions
4) Reboot or replace the transmitter card. To determine whether the driver is installed on the transmitter card ： open the device manager of the computer, and see whether there is LED Smart Card device in the Universal Serial Bus controller. 2、Large screen display fuzzy/unclear www.sysolution.net... -
Page 28: Multi-Function Card Common Problem Processing
B. Delay in transmitting the automatic brightness adjustment data to the LED display brightness change. C. Temperature change itself is not a rapid change. 2.Automatic brightness adjustment without environmental brightness and current screen brightness value A.Check whether the hardware connection is unstable or the interface is off. www.sysolution.net... - Page 29 (only 80% is executed). When the www.sysolution.net...
-
Page 30: End
This is the end of the introduction of the S20 setup part, I hope that through this short description, will help you in the future use of the process.
