Delta ShopMaster AP400 Instruction Manual

Delta ShopMaster AP400 Instruction Manual

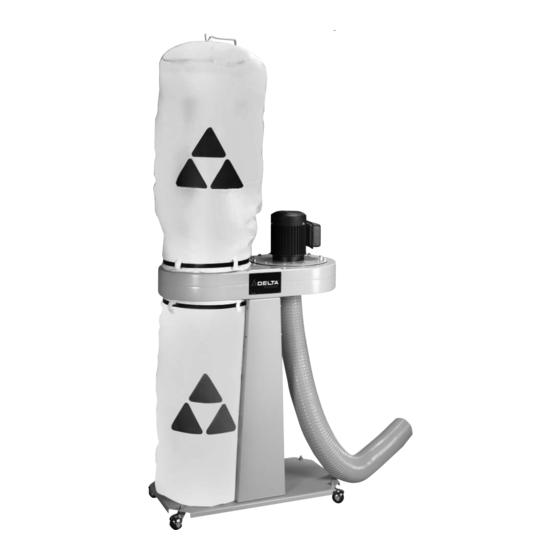

One h.p. single-stage dust collector
Hide thumbs Also See for ShopMaster AP400:

Advertisement

Quick Links

Download this manual

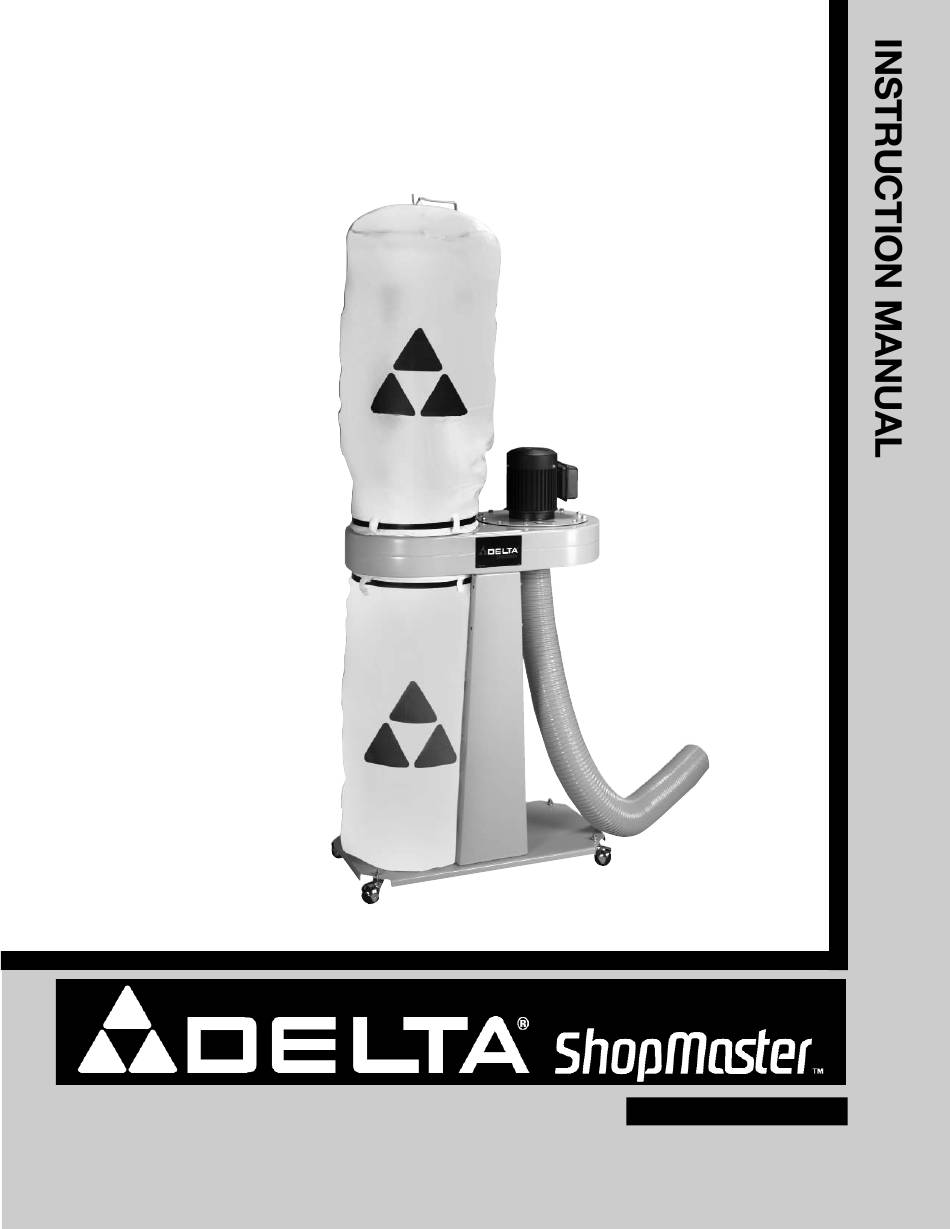

One H.P. Single-Stage
Dust Collector
(Model AP400)
PART NO. 906121 - 05-31-02
Copyright © 2002 Delta Machinery
To learn more about DELTA MACHINERY
ESPAÑOL: PÁGINA 13
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
1-800-223-7278 (
1-800-463-3582).
please call
In Canada call

Advertisement

loading
Need help?

Need help?

Do you have a question about the ShopMaster AP400 and is the answer not in the manual?

Questions and answers

Related Manuals for Delta ShopMaster AP400

Summary of Contents for Delta ShopMaster AP400

  • Page 1 One H.P. Single-Stage Dust Collector (Model AP400) PART NO. 906121 - 05-31-02 Copyright © 2002 Delta Machinery To learn more about DELTA MACHINERY ESPAÑOL: PÁGINA 13 visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582).
  • Page 2 If you have any questions relative to a particular application, DO NOT use the machine until you have first contacted Delta to determine if it can or should be performed on the product.
  • Page 3 ADDITIONAL SAFETY RULES FOR DUST COLLECTORS WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY. 1. DO NOT OPERATE THIS MACHINE until it is 14. DO NOT use the dust collector as a toy. DO NOT assembled and installed according to the instructions. use near or around children.
  • Page 4 POWER CONNECTIONS A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3- prong grounding type plugs and matching receptacle which will accept the machine’s plug.
  • Page 5 Fig. D Fig. D OPERATING INSTRUCTIONS FOREWORD The Delta ShopMaster Model AP400 will connect to woodworking machines that accept a 4" diameter hose. The Model AP400 comes with two 30 micron collection bags, and a 4" x 5 ft. collection hose.
  • Page 6 UNPACKING AND CLEANING Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.
  • Page 7 ASSEMBLY WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL. WHEEL CASTERS 1. Remove the hex nut and lockwasher from each of the four wheel casters.
  • Page 8 ATTACHING MOTOR AND BLOWER ASSEMBLY TO FRAME 1. Place motor assembly and base assembly on their side. 2. Align the four holes, two shown at (C), on the top of the side supports (A) Fig. 8, with the four holes in the motor assembly (B).
  • Page 9 FILTER AND DUST COLLECTION BAGS TO DRUM 1. Thread a 5/16-18 hex nut (A) Fig. 13, onto the end of bag support rod (B). Thread rod into hole (E) and tighten nut (A) against motor assembly to hold support rod (B) upright.
  • Page 10 DUST INTAKE HOSE TO MOTOR AND BLOWER ASSEMBLY DISCONNECT MACHINE FROM POWER SOURCE before connecting or disconnecting an air intake hose to or from the blower and motor assembly. The dust collector is supplied with a 4" flexible dust intake hose. Place the intake cap holder (E) on the dust collector as shown in Fig.
  • Page 11 MAINTENANCE NOTE: Before any maintenance or service is performed, be sure the unit is disconnected from the power source to prevent accidental starting. All servicing other than the items recommended in this Instruction Manual should be performed by an authorized service facility. When storing your dust collector, remove power supply cord from the electrical outlet.
  • Page 12 Two Year Limited Warranty Delta will repair or replace, at its expense and at its option, any Delta machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two years and provides Delta with reasonable opportunity to verify the alleged defect by inspection.
