Description
Each model gun is designed for 3-way loading;
cartridge, loader pump, and suction. Refer to Page 2 for
details.
Each gun is also equipped with a Loader Fitting that
allows filling directly from a hand-operated loader pump.
See Figure 5.
Gun Model
Extension
339745
Rigid
339746
339747
Flexible

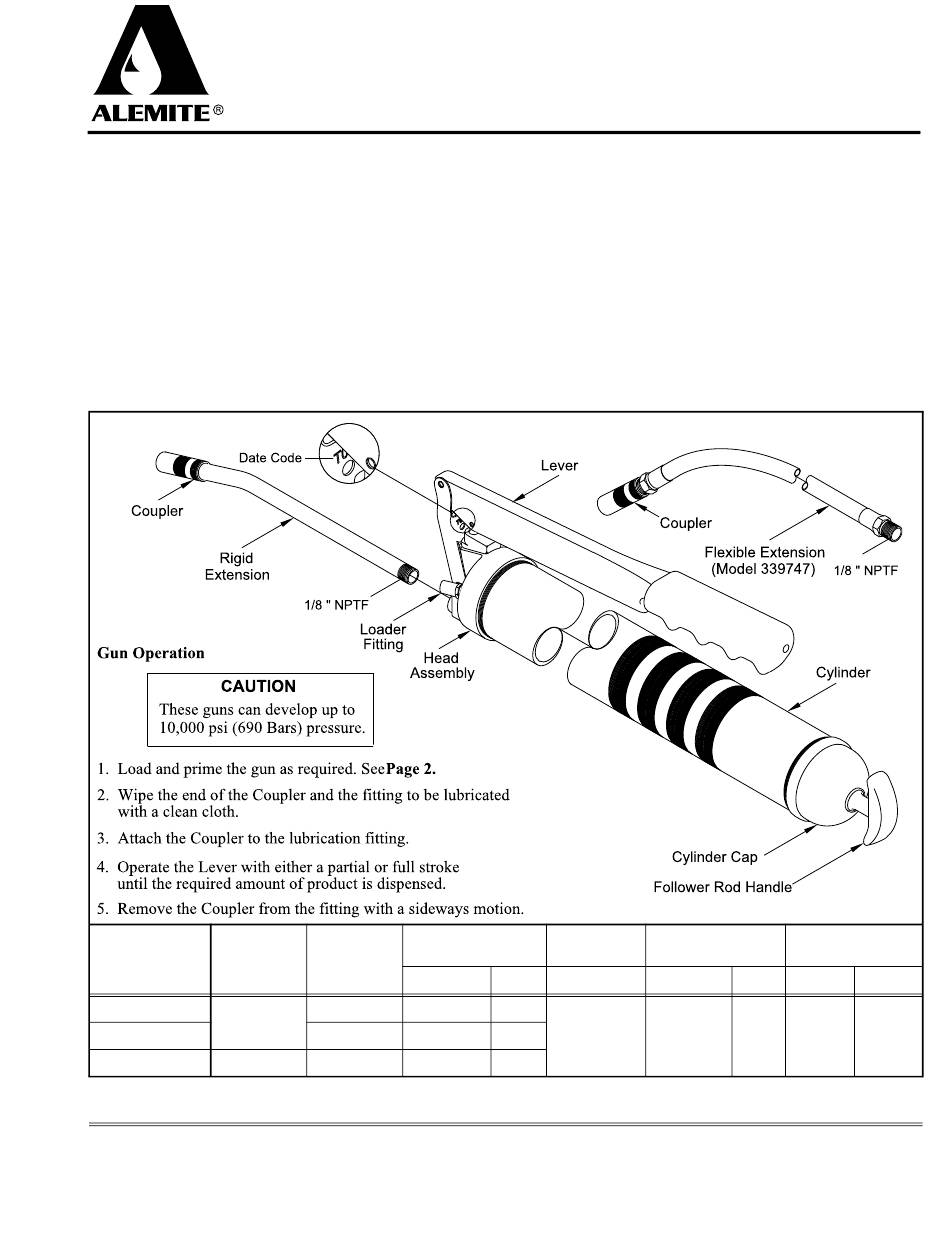

Figure 1 Lever-Operated Grease Gun Models 339745, 339746, and 339747
This document contains confidential information that is the property of Alemite Corporation
670837
and is not to be copied, used, or disclosed to others without express written permission.
www.gfplantspares.com
Service Guide
Lever-Operated Grease Gun
Cylinder Capacity
Follower
Rod
Ounces
Single-Notch
16
Double-Notch
24
Single-Notch
16
Alemite Corporation
PO Box 473515, Charlotte, North Carolina 28247-3515
©
Copyright
2002 by Alemite Corporation
The guns are spring-primed and deliver 1 ounce (28.4
grams) of grease in 33 strokes. The check valve can be
disassembled for cleaning.
These guns are designed with Buna-N (Nitrile) seals
for compatibility with petroleum-based greases.
Cartridge Size
Delivery/Stroke
Grams
Ounces
Ounce
454
682
14
0.03
454
339745
339746
339747
Maximum Operating
Pressure
Grams
psi
Bars
0.86
10,000
690
SER 339745
Revision (8-02)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Alemite 339745
Summary of Contents for Alemite 339745
- Page 1 PO Box 473515, Charlotte, North Carolina 28247-3515 © Copyright 2002 by Alemite Corporation SER 339745 This document contains confidential information that is the property of Alemite Corporation 670837 Revision (8-02) and is not to be copied, used, or disclosed to others without express written permission.
- Page 2 SER 339745 Lever-Operated Grease Gun www.gfplantspares.com Loading the Gun IMPORTANT: Warranty may be void if these procedures are not explicitly followed. Cartridge Loading 1. Unscrew the Head Assembly from the Cylinder. 2. Pull the Follower Rod outward from the Cylinder Cap.
- Page 3 Lever-Operated Grease Gun SER 339745 www.gfplantspares.com 6. Operate the pump and view the movement of the Follower Rod. 7. Discontinue pump operation once the groove* on the Follower Rod is visible. 8. Push and turn the Follower Rod into the Cylinder.
- Page 4 SER 339745 Lever-Operated Grease Gun www.gfplantspares.com Priming the Loaded Gun Overview Priming is the act of removing air and introducing grease into the gun’s pumping mechanism. Whether a gun primes is dependent on the: • viscosity of the grease • temperature of the grease •...
