- Page 1 User and maintenance instructions (original) Cordless grease gun Models 586-A, 586-B, 586-C, 586-D* Battery charger included Date of issue September 2021 Form number 671087 Version Indicates change.
-
Page 2: Table Of Contents
Contents Declaration of Conformity* ..Explanation of signal words for safety ....Intended use ..... Safety instructions . -
Page 3: Declaration Of Conformity
EC-representative‘s address. EC-Representative SKF Lubrication Systems Germany GmbH Heinrich-Hertz-Str. 2-8 DE - 69190 Walldorf Phone: 49 (0) 6227-33259 Manufacturer Alemite, 167 Roweland Dr. Johnson City, TN 37601 USA Brad Edler, Director Product Development and Product Engineering Indicates change. September 2021... -
Page 4: Explanation Of Signal
Explanation of signal words for safety NOTE Emphasizes useful hints and recommendations as well as information to prevent property damage and ensure efficient trouble-free operation. CAUTION Indicates a dangerous situation that can lead to light personal injury if precautionary measures are ignored. WARNING ... -
Page 5: Intended Use
Intended use 2.2 Avoid body contact with earthed or 3.3 Prevent unintentional starting. grounded surfaces such as pipes, Ensure the switch is in the off- This cordless grease gun was exclusively radiators, ranges and refrigerators. position before connecting to power designed to pump and dispense lubricant There is an increased risk of electric source and/or battery pack, picking... -
Page 6: Specific Safety
5.2 Use power tools only with Any power tool that cannot be specifically designated battery Use only Alemite 340067 grease whip controlled with the switch is packs. Use of any other battery packs hose. Use only Alemite grease coupler dangerous and must be repaired. -
Page 7: Safety Of Others
• If the supply cord is damaged, it must be Failure to comply may result in death replaced by the manufacturer or an or serious injury. authorised Alemite service centre in order IEEE/ANSI to avoid a hazard. IEEE/ANSI Safety of others... -
Page 8: Description

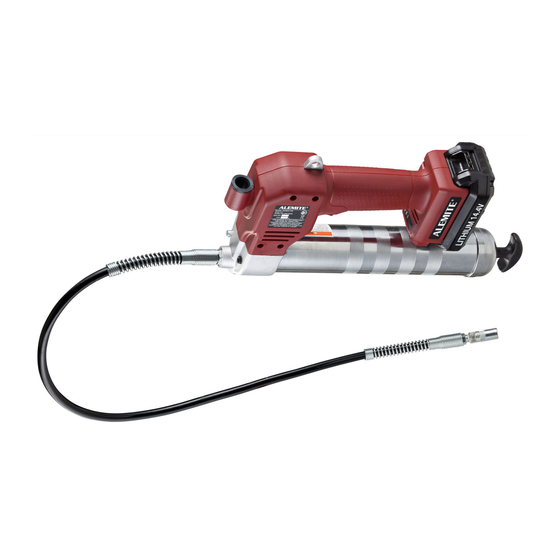

Description Fig. 1 Cordless grease gun series 586 Models 586-A, 586-B, 586-C and 586-D grease guns dispense petroleum-based greases (NLGI 1/ NLGI 2) for general lubrication applications. A 36 in (0.91 meter) long high-pressure whip hose, heavy-duty grease coupler, charger and molded carrying case are included. -
Page 9: Load Gun
Load gun Suction load Loader pump 1 Unscrew grease cylinder (33) from gun. 2 Insert head of grease cylinder below surface of grease. NOTE 3 Slowly pull follower rod outward from Refer to Fig. IPB 1, page 13 for compo- WARNING ... -
Page 10: Prime Gun
Prime gun Battery and charger safety CAUTION Do not expose charger to rain, snow, In most cases the gun will prime simply by This manual contains important safety and or frost. operating the trigger several times. operating instructions for battery part Make sure cord is located so that it Should grease fail to appear, air must be number 343432 and battery chargers... -
Page 11: Battery Charger Operation
Battery charger Battery in charger operation The battery can be left in the charger with the green LED glowing indefinitely. Charge the battery only with the charger The charger will keep the battery fully provided or optional mobile charger 343289. charged. -
Page 12: Maintenance
Protect environment Chargers Separate collection. This product must not be disposed of with • Use your Alemite charger only to charge normal household waste the battery supplied with your tool. Other batteries could burst, causing per- Should you find one day that your Alemite sonal injury and damage. -
Page 13: Exploded View
Fig. IPB 1 Exploded view Only suitable substitute 6304-B Coupler, grease. Item 25 must be removed when using this coupler. 340388 Relief valve with gasket. Support yoke during roll pin removal. -
Page 14: Parts List
Parts list Item Description Part number Quantity Item Description Part number Quantity Screw, tapping Insert, coupler 340349* Washer, lock Yoke Screw, machine Pin, roll Housing Piston Hose, grease 340067 Battery, indicator Coupler, grease 308730 Battery connector Screw, M3x6 Washer, m3 lock Trigger Cover, head Cylinder, grease... - Page 15 This page left intentionally blank.
-
Page 16: Warranty
