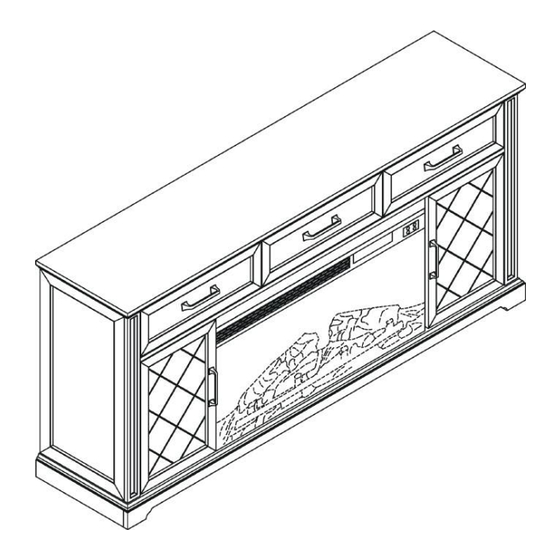

- Page 1 Oslo TV Fire Stand FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-41860 The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
- Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 120 mins Weight limitations are as follows: Maximum Load 15 lb Maximum Load 70 lb Maximum Load 20 lb...
- Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.
- Page 4 PACKAGE CONTENTS...
- Page 5 PACKAGE CONTENTS CODE DESCRIPTION Top Panel Bottom Panel Left Lateral Panel Right Lateral Panel Upper Divider Panel Upper Back Panel Left Medial Panel Right Medial Panel Upper Back Crossbar Upper Front Crossbar Front Base Strip Back Base Strip Left Base Strip Right Base Strip Support Leg Top Surround Strip...
- Page 6 PACKAGE CONTENTS CODE DESCRIPTION Decoration Strip Cabinet Door Drawer Front Panel Drawer Front Panel Drawer Front Panel Drawer Bottom Panel Drawer Back Panel Drawer Left Panel Drawer Right Panel Side Back Panel...
- Page 7 PACKAGE CONTENTS 45x + 4x 33x + 3x 12x + 1x 52x + 4x 45x + 4x 24x + 2x 12x + 1x 10" x 35mm 42x + 4x 16x + 1x 24x + 2x Install all hardware perpendicular to the opening. v.07312024...
- Page 8 PACKAGE CONTENTS 20x+2x 20x+2x Install all hardware perpendicular to the opening.
- Page 9 Required tools for assembly (Not included) Attach cam bolts to front, left, and right base strips (11, 13, 14). v.07312024...
- Page 10 Insert wood dowels to the back, left, and right base strips (12, 13, 14). Attach corner connectors to all the base strips (11, 12, 13, 14).
- Page 11 Assemble the back base strip (12) between the left and right base strips (13, 14). Assemble the front base strip (11) to the base assembly. v.07312024...
- Page 12 Assemble the base assembly to the underside of the bottom panel (2). Attach support legs (15) to the bottom panel (2).
- Page 13 Attach cam bolts to the top of the bottom panel (2). Attach cam bolts to the lateral panels (3, 4) and the decoration strips (21) v.07312024...
- Page 14 Insert wood dowels to the lateral panels (3, 4). Attach decoration strips (21) on each of the lateral panels (3, 4).
- Page 15 Attach door hinge blocks (19) onto the lateral panels (3, 4). Attach slider rail blocks (18) onto the lateral panels (3, 4). v.07312024...
- Page 16 Detatch the slider from all the slide brackets. Slide Bracket Slider...
- Page 17 Attach slide brackets to the lateral panels (3, 4). v.07312024...
- Page 18 Attach the rest of the slide brackets to both sides of the upper divider panels (5).
- Page 19 Attach the sliding bracket to the other side of the upper divider panels (5). Please note that the position of the premounting holes is di erent. v.07312024...
- Page 20 Insert wood dowels to the surround strips (16, 17). Attach side surround strips (17) to each of the medial panels (7, 8).
- Page 21 Assemble the top surround strip (16) between the medial panels (7, 8). Insert wood dowels into the medial panels (7, 8). v.07312024...
- Page 22 Attach cam bolts to the upper front crossbar (10). Assemble the upper front and back crossbars (9, 10) to the upper divider panels (5).
- Page 23 Secure the upper crossbars (9, 10) to the upper divider panels (5). Assemble the upper crossbar assembly on top of the medial panels (7, 8). v.07312024...
- Page 24 Further secure the upper front crossbar (10) to the top surround strip (16).
- Page 25 Assemble the lateral panels (3, 4) to the sides of the upper crossbars (9, 10). v.07312024...
- Page 26 Insert wood dowel into the bottom of the medial panel (7, 8). Slide the side back panels (30) between the lateral panel and medial panel on each sides.
- Page 27 Assemble the lateral panels and medial panels to the base assembly. v.07312024...
- Page 28 Place the stand assembly on its upright position and slide in the upper back panel (6). Insert wood dowels to the upper divider panels (5).
- Page 29 Attach cam bolts to the top panel (1). Assemble the top panel (1) on top of the stand assembly. v.07312024...
- Page 30 Attach sliders to the drawer side panels (28, 29).
- Page 31 Assemble drawer back panels (27) between the drawer side panels (28, 29). v.07312024...
- Page 32 Slide the drawer bottom panels (26) into the drawer assemblies. Attach cam bolts to drawer front panels (23, 24, 25).
- Page 33 Assemble drwaer front panels (23, 24, 25) to the drawer assemblies. v.07312024...
- Page 34 Attach drawer handle to each of the drawers.
- Page 35 Slide drawers into the stand. Slide the slider plate to the forward position. Slowly push the drawer in. Up and down adjustment by loosening the screws on the slide runner. v.07312024...
- Page 36 Insert shelf pegs into the stand and put storage shelf panels (20) on top of the pegs. Attach door hinges to the cabinet doors (22).
- Page 37 Attach door handles to the cabinet doors. Attach cabinet doors (22) to the stand. v.07312024...
- Page 38 When the clearance of the door is uneven, Adjust the cabinet door according to the gure. lf you still have trouble adjusting the door, please contact us. Up and down Side to side In and out adjustment by adjustment using adjustment by loosening the screws the front adjustment...
- Page 39 Secure the back panels in place. v.07312024...
- Page 40 Attach freplace heater into the stand from the back opening. CAUTION: The heater has a glass front panel. Careful when handling glass to prevent injury or damage. Set the freplace heater from the back of the mantel and center it in the opening. For the exact instruction, please refer to the user's manual provided with the replace heater.
- Page 41 v.07312024...
- Page 42 Attach anti-tipping straps to the back of the stand.
- Page 43 device to prevent the furniture from tipping over. • Mark the drill position on the wall with a pencil. • Drill a small hole on the marked position. • Insert a wall anchor into the drilled hole. • Fixed the anti-tipping strap to the wall with provided screws. YOU’RE FINISHED! v.07312024...
- Page 44 Warning Serious or fatal crushing injuries may occur if the furniture tip-over. order to prevent the furniture from tipping over. stability and load bearing capacity of the furniture. If you are uncertain about which type of device to use, please contact us or your local hardware store. Warning Only place items on top of the product if they meet the recommended size and weight limits.
- Page 45 WARNING For use with televisions weighing 70lbs (31.8kg) or less. Use with heavier televisions may result in instability, causing tip over resulting in death or serious injury. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
- Page 46 FURNITURE CARE AND MAINTENANCE Medium - Density Fiberboard Thank you for your purchase. We want your item to last as long as possible. To ensure the product gives you years of longevity, please follow the recommendations in this care and maintenance guide. MAINTENANCE •...
- Page 47 © All copyright of this document belongs to BELLEZE. This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE. v.07312024...
- Page 48 WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.
