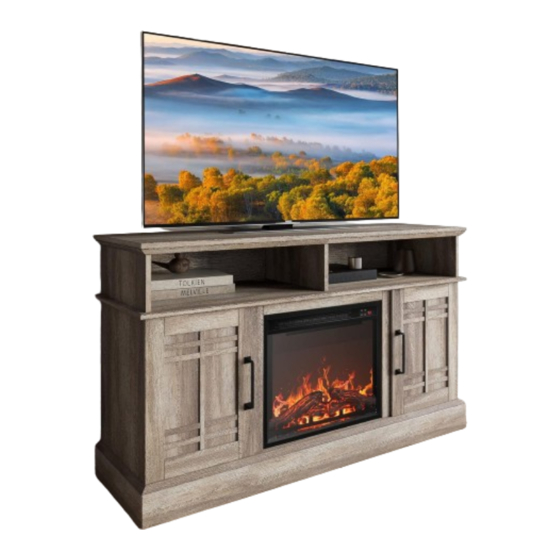

- Page 1 Norrell TV Stand FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-41802 The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
- Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 120 mins Weight limitations are as follows: Maximum Load 70 lb Maximum Load 20 lb...
- Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.
-
Page 4: Package Contents
PACKAGE CONTENTS... - Page 5 PACKAGE CONTENTS CODE DESCRIPTION Top Panel Top Side Panel Top Medial Panel Center Panel Top Back Panel Side Back Panel Horizontal Surround Panel Cabinet Door Left Side Panel Left Medial Panel Right Medial Panel Right Side Panel Right Surround Panel Left Surround Panel Side Storage Panel Base...
- Page 6 PACKAGE CONTENTS 32x + 3x 30x + 3x 32x + 3x 12x + 1x 49x + 4x 24x + 2x 32x + 3x Install all hardware perpendicular to the opening.
- Page 7 Required tools for assembly (Not included) Attach cam bolts to the base (16). v.06122023...
- Page 8 Insert wood dowels into the base (16). Attach cam bolts to the left and right surround panels (13, 14).
- Page 9 Assemble the right surround panel (13) to the right medial panel (11), and the left surround panel (14) to the left medial panel (10). v.06122023...
- Page 10 Assemble the side panels (9, 12) and the medial panels (10, 11) onto the base (16). Attach cam bolts to the underside of the center panel (4).
- Page 11 Assemble the horizontal surround panel (7) to the underside of the center panel (4). Assemble the center panel (4) on top of the side panels and the medial panels. v.06122023...
- Page 12 Attach cam bolts on top of the center panel (4). Assemble top side panels (2) and top medial panel (3) on top of the center panel.
- Page 13 Attach cam bolts to the underside of the top panel (1). Assemble the top panel (1) onto the stand. v.06122023...
- Page 14 Option 1 (TV Stand) Option 2 (Fireplace Mantel)
- Page 15 TV STAND ASSEMBLY (OPTION 1) Assemble back panels (4, 6,18) to the back of the stand. Warning lable should be facing outward. v.06122023...
- Page 16 Attach door hinges to the cabinet doors (8). Attach door handles to the cabinet doors (8).
- Page 17 Assemble the cabinet doors to the stand. Adjust the position of the cabinet doors. Up and down In and out Side to side adjustment by adjustment by adjustment using loosening the screws loosening the screws the front adjustment on the mounting on the hinge arm.
- Page 18 Insert shelf pegs into the stand and put on the storage panels (15, 17). Attach anti-tipping straps to the back of the stand.
- Page 19 Affix the stand to a wall. Furniture must permanently fixed to the wall stud with included anti-tipping device to prevent the furniture from tipping over. • Mark the drill position on the wall with a pencil. • Drill a small hole on the marked position. •...
- Page 20 Stick the wood trip on top of the TV stand. 0.2” / 5mm 2” / 50mm NOTE: Put the TV behind the wood trim to prevent it from falling off. YOU’RE FINISHED!
- Page 21 FIREPLACE MANTEL ASSEMBLY (OPTION 2) Assemble back panels (4, 6) to the back of the stand. Warning lable should be facing outward. v.06122023...
- Page 22 Attach door hinges to the cabinet doors (8). Attach door handles to the cabinet doors (8).
- Page 23 Assemble the cabinet doors to the stand. Adjust the position of the cabinet doors. Up and down In and out Side to side adjustment by adjustment by adjustment using loosening the screws loosening the screws the front adjustment on the mounting on the hinge arm.
- Page 24 Insert shelf pegs into the stand and put on the storage panels (15). Attach anti-tipping straps to the back of the stand.
- Page 25 The screws for installation are in the packing case of the fireplace. CAUTION: The heater has a glass front panel. Careful when handling glass to prevent injury or damage. v.06122023...
- Page 26 Affix the stand to a wall. Furniture must permanently fixed to the wall stud with included anti-tipping device to prevent the furniture from tipping over. • Mark the drill position on the wall with a pencil. • Drill a small hole on the marked position. •...
- Page 27 Stick the wood trip on top of the TV stand. 0.2” / 5mm 2” / 50mm NOTE: Put the TV behind the wood trim to prevent it from falling off. YOU’RE FINISHED! v.06122023...
- Page 28 Warning Only place items on top of the product if they meet the recommended size and weight limits. Climbing on, stepping on, or placing overweighted objects on the product may cause property damage and/or injuries. Items placed onto this product must be resting on a support surface without hanging over the edges.
- Page 29 ⚠ WARNING For use with televisions weighing 70lbs (31.75kg) or less. Use with heavier televisions may result in instability, causing tip over resulting in death or serious injury. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
- Page 30 FURNITURE CARE AND MAINTENANCE Medium - Density Fiberboard Thank you for your purchase. We want your item to last as long as possible. To ensure the product gives you years of longevity, please follow the recommendations in this care and maintenance guide. MAINTENANCE •...
- Page 31 © All copyright of this document belongs to BELLEZE . This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE. v.06122023...
-
Page 32: Warranty
WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Encounter any difficulties or missing parts? Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.
