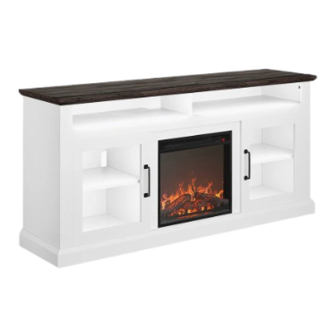

- Page 1 Cayman TV Stand w/ Fireplace FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-41831-HT The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
- Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 90 mins Weight limitations are as follows: Maximum Load 70 lb Maximum Load 20 lb...
- Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.
-
Page 4: Package Contents
PACKAGE CONTENTS... - Page 5 PACKAGE CONTENTS (A) CODE DESCRIPTION Top Panel Middle Partition Center Panel Front Lintel Panel Middle Crossbar Upper Back Panel Left Medial Panel Right Medial Panel Center Support Bar Bottom Panel Left Leg Front Leg Back Leg Right Leg Middle Leg v.08252022...
- Page 6 PACKAGE CONTENTS (B) CODE DESCRIPTION Storage Shelf Panel Left Side Panel Right Side Panel Lower Back Panel Cabinet Door...
- Page 7 PACKAGE CONTENTS 40x + 1x 35x + 1x 40x + 1x 24x + 1x 27x + 1x 28x + 1x Install all hardware perpendicular to the opening. v.08252022...
- Page 8 PACKAGE CONTENTS...
- Page 9 Required tools for assembly (Not included) Attach connectors on the under side of the bottom panel. v.08252022...
- Page 10 Attach front, left and right legs under the bottom panel. Attach cam bolts underneath to the bottom panel.
- Page 11 Attach the middle and back legs under the bottom panel. Connect the cabinet legs . v.08252022...
- Page 12 Attach cam bolts on the top side of the bottom panel. Attach wood dowels on the top side of the bottom panel.
- Page 13 Attach cam bolts to the left and right medial panels. Attach support bars to the left and right medial panels. v.08252022...
- Page 14 Attach cam bolts on the underside of center panel. Attach middle crossbar to the center panel.
- Page 15 Attach cam bolts to the front lintel panel. Attach the front lintel panel to the center panel. v.08252022...
- Page 16 Attach cam bolts to the left and right side panels. Secure the left and right panels to the side of the center panel.
- Page 17 Attach cam bolts under the center panels. Attach the left and right medial panels under the center panel. v.08252022...
- Page 18 Attach the bottom panel underneath the side panels and medial panels. Secure the support bars to the crossbars with metal plates.
- Page 19 Attach the middle partition on top of the center panel.. Attach cam bolts on the under side of the top panel. v.08252022...
- Page 20 Attach the top panel of top of the assembly. Cover all the cam lock with decorative covers.
- Page 21 Attach back panels on the back side of the TV stand. Warning lable should be facing outward. v.08252022...
- Page 22 Attach door hinges to the cabinet door. Attach door knobs to the cabinet doors.
- Page 23 Attach cabinet doors to the TV stand. Up and down In and out Side to side adjustment by adjustment by adjustment using loosening the screws loosening the screws the front adjustment on the mounting on the hinge arm. screw on the hinge. plate.
- Page 24 Attach shelf pegs inside the TV stand. Put the storage shelf panel into the TV stand.
- Page 25 Attach the anti-tipping strap on the back of the TV stand. v.08252022...
- Page 26 Affix the TV stand to the wall. Furniture must permanently fixed to the wall stud with included anti-tipping device to prevent the furniture from tipping over. • Mark the drill position on the wall with a pencil. • Drill a small hole on the marked position. •...
- Page 27 Stick the wood trip on top of the TV stand. 0.2” / 5mm 2” / 50mm NOTE: Put the TV behind the wood trim to prevent it from falling off. YOU’RE FINISHED! v.08252022...
-
Page 28: Fireplace Installation
FIREPLACE INSTALLATION Set the unit from the back of the fireplace mantel and center it in the opening. Check the alignment and attach the unit to the mantel by inserting screws through the drilled holes on the mantel. For the exact instruction, please refer to the user’s manual provided with the fireplace. - Page 29 Warning Only place items on top of the product if they meet the recommended size and weight limits. Climbing on, stepping on, or placing overweighted objects on the product may cause property damage and/or injuries. Items placed onto this product must be resting on a support surface without hanging over the edges.
- Page 30 ⚠ WARNING For use with televisions weighing 70lbs (31.8kg) or less. Use with heavier televisions may result in instability, causing tip over resulting in death or serious injury. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
- Page 31 FURNITURE CARE AND MAINTENANCE Medium - Density Fiberboard Thank you for your purchase. We want your item to last as long as possible. To ensure the product gives you years of longevity, please follow the recommendations in this care and maintenance guide. MAINTENANCE •...
- Page 33 © All copyright of this document belongs to BELLEZE . This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE. v.08252022...
-
Page 34: Warranty
WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Encounter any difficulties or missing parts? Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.
