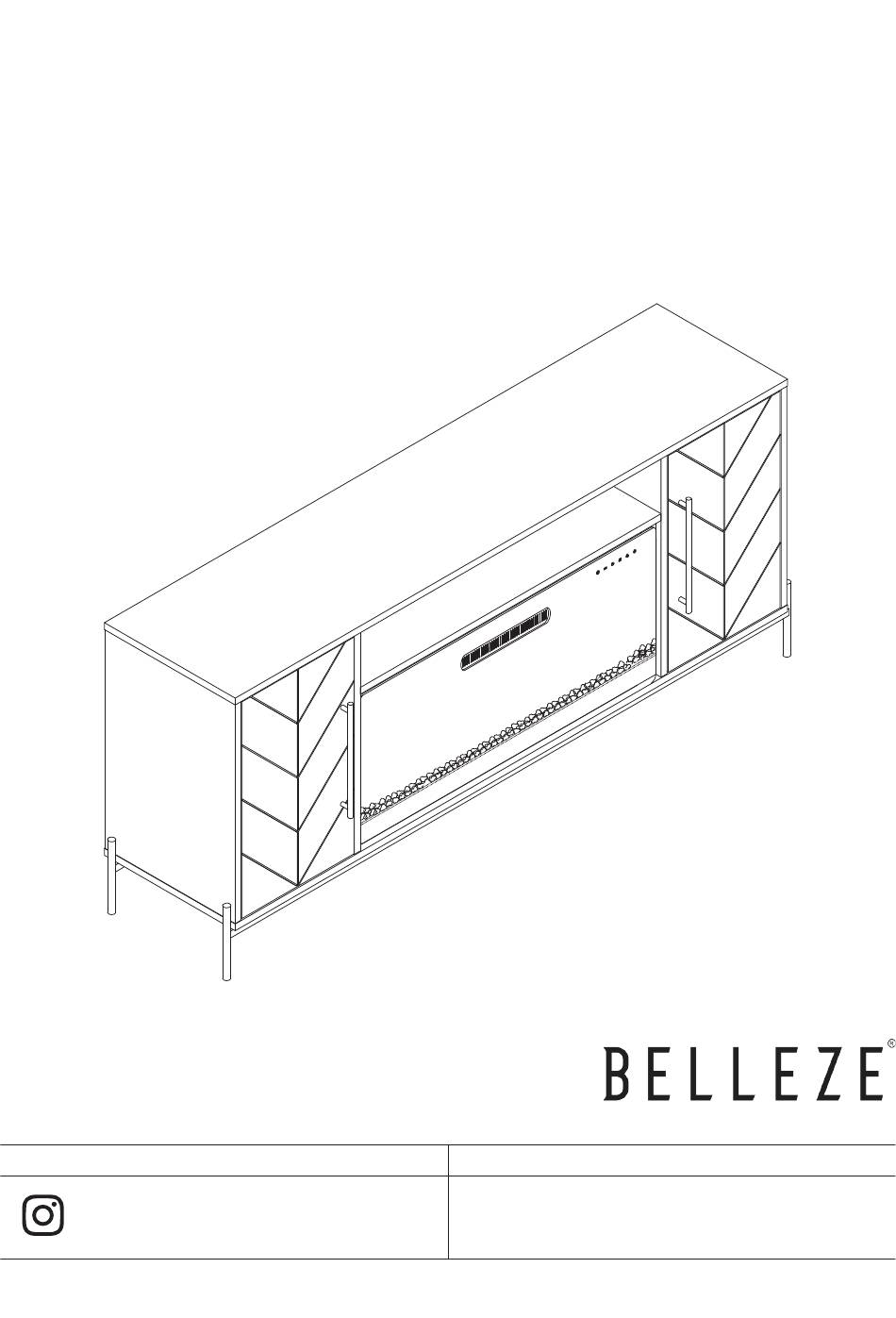

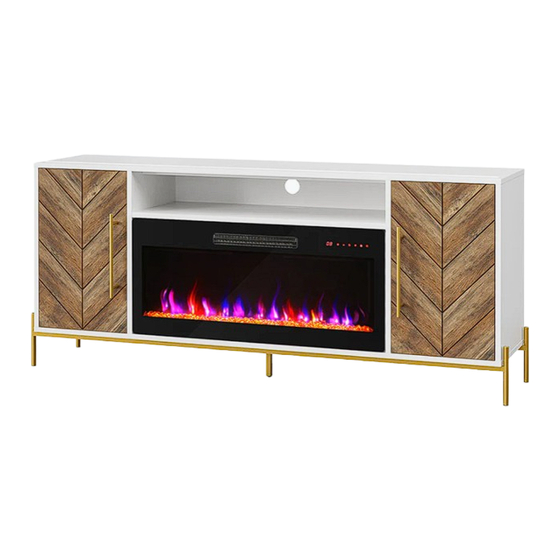

- Page 1 Harper TV Fire Stand FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-41893 The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
- Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 100 mins Weight limitations are as follows: Maximum Load 70 lb Maximum Load 30 lb...
- Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.
-
Page 4: Package Contents
PACKAGE CONTENTS... - Page 5 PACKAGE CONTENTS CODE DESCRIPTION Top Panel Bottom Panel Side Panel Left Medial Panel Right Medial Panel Center Panel Side Storage Shelf Panel Side Back Panel Center Back Panel Center Surround Panel Left Surround Panel Right Surround Panel Left Cabinet Door Right Cabinet Door Support Crossbar Metal Crossbar...
- Page 6 PACKAGE CONTENTS 25x + 2x 25x + 2x 25x + 2x 24x + 2x 14x + 1x Install all hardware perpendicular to the opening.
- Page 7 PACKAGE CONTENTS 18x + 1x 18x + 1x 24x+2 Install all hardware perpendicular to the opening. v.10202023...
- Page 8 Required tools for assembly (Not included) Attach cam bolts to the bottom panel (2), medial panels (4, 5), and center panel (6).
- Page 9 Insert wood dowels to the side panels (3), medial panels (4, 5), center panel (6), and support crossbar (15). v.10202023...
- Page 10 Assemble surround panels (10, 11, 12) to the medial panels (4, 5) and center Assemble the support crossbar (15) to the center panel (6).
- Page 11 Assemble the right medial panel (5) to the center panel (6). Assemble the left medial panel (4) to the other side of the center panel (6). v.10202023...
- Page 12 Assemble the medial panels (4, 5) to the bottom panel (2) Assemble the metal crossbar (16) between the medial panels.
- Page 13 Assemble side panels (3) onto the bottom panel (2). Slide back panels (8, 9) to the back of the stand. v.10202023...
- Page 14 Attach cam bolts to the underside of the top panel (1). Assemble the top panel (1) on top of the stand.
- Page 15 Assemble leg crossbars (18, 19) to the front leg (17). Note: Leave bolts 80% tightened. Assemble back leg (21) to the other side of the leg crossbars. Note: Leave bolts 80% tightened. v.10202023...
- Page 16 Assemble the center leg (20) under the leg frame. Assemble the legs under the bottom panel. Note: Tighten all the bolts.
- Page 17 Secure the back panels in place. Insert shelf pegs into the stand and put in the side storage shelf panels (7). v.10202023...
- Page 18 Attach door hinges to the cabinet doors (13, 14). Attach door handle to the cabinet doors.
- Page 19 Attach cabinet doors to the stand. When the clearance of the door is uneven, Adjust the cabinet door according to the gure, lf you still have trouble while adjusting the door. please contact us. Up and down In and out Side to side adjustment by adjustment by...
- Page 20 *For the exact instruction, please refer to the user’s manual provided with the Set the unit from the front of the replace mantel and center it in the opening, check the alignment and attack the unit to the mantel by inserting screws through the drilled holes on the mantel.
- Page 21 * For the exact instruction, please refer to the user' s manualprovided with the freplace. Snap the re place front panel onto the replace. CAUTION: Careful when handling glass to prevent injury or damage. v.10202023...
- Page 22 Attach anti-tipping straps to the back of the stand.
- Page 23 device to prevent the furniture from tipping over. • Mark the drill position on the wall with a pencil. • Drill a small hole on the marked position. • Insert a wall anchor into the drilled hole. • Fixed the anti-tipping strap to the wall with provided screws. v.10202023...
- Page 24 Attach the wood strlp on top of the TV stand. YOU’RE FINISHED!
- Page 25 Warning Serious or fatal crushing injuries may occur if the furniture tip-over. order to prevent the furniture from tipping over. stability and load bearing capacity of the furniture. If you are uncertain about which type of device to use, please contact us or your local hardware store. Warning Only place items on top of the product if they meet the recommended size and weight limits.
- Page 26 WARNING For use with televisions weighing 70lbs (31.8kg) or less. Use with heavier televisions may result in instability, causing tip over resulting in death or serious injury. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
-
