DYU C1 Instructions Manual

DYU C1 Instructions Manual

Smart electric bike

Advertisement

Quick Links

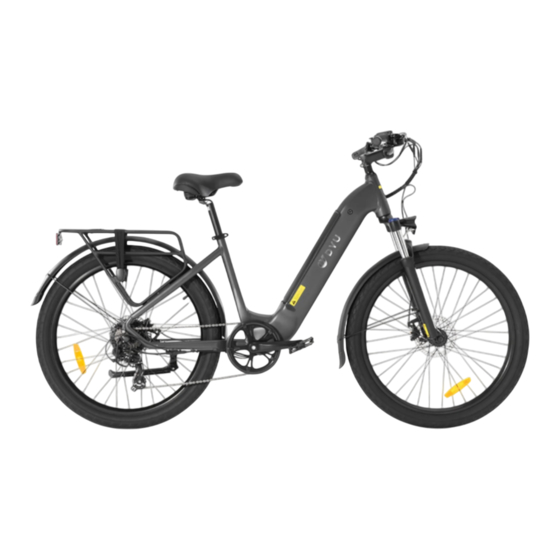

DYU SMART ELECTRIC BIKE C1
INSTRUCTION
Do not use the eBike without reading this manual carefully and
knowing your eBike thoroughly
Please save this manual for future reference

Advertisement

loading
Need help?

Need help?

Do you have a question about the C1 and is the answer not in the manual?

Questions and answers

Summary of Contents for DYU C1

  • Page 1 DYU SMART ELECTRIC BIKE C1 INSTRUCTION Do not use the eBike without reading this manual carefully and knowing your eBike thoroughly Please save this manual for future reference...
  • Page 2 PARTS & COMPONENTS 1.Brake Lever 12.Front Fork 20.Battery 30.Spoke 2.Wiring Harness 13.Tire 21.Crank 31.Motor 3.Headset 14.Front Wheel 22.Controller 32.Fly Wheel 4.Bell Reflector 23.Chain Wheel 33.Mudguard 5.Electric Shifter 15.Disc Brake Rotor 24.Chain 34.Mudguard Stay 6.Grip Cover 16.Hub 25.Pedal 35.Rear Rack 7.Power Switch 17.Disc Brake 26.Kickstand 36.Rear Reflector...
  • Page 3 GETTING STARTED 1.Assembling: 1) Open the box, take out your eBike, and 5. Cruise control: When riding the e-bike and it maintains a remove the packaging. 2) Assemble the front wheel by constant speed, you can release throttle after holding it at a installing it into the front fork of the frame and locking it with certain angle for 8 seconds to continue riding at current the quick-release lever.
  • Page 4 INSTALLING THE FRONT WHEEL I. Basic mechanical principle with the hub and anchor nuts Turn the anchor nuts clockwise to increase clamping, and anti-clockwise to decrease. Turn the adjusting nut clockwise for the quick-release lever to be in the CLOSE position. As the nut screws inwards, the wheel is clamped onto the frame and locked into the correct position.
  • Page 5 DERAILLEUR SYSTEM The derailleur system includes front and rear derailleurs, Freewheel Pulley shift levers, and derailleur control cables. For smooth Adjustment Screw shifting, all components must function properly. Although the front and rear derailleurs are initially adjusted in the factory, you need to inspect them before Guide pelley each ride.
  • Page 6 SPECIFICATION Model Body material Aluminum Alloy Expanded size 1480*700*1090 mm (or 58*28*43 inches) Packing size Inside 1520*245*820mm (or 60*10*32 inches) Build Wheelbase 1160 mm (or 46 inches) Pedal ground clearance 110 mm( or 4 inches) Wheel hub 26 inches Body color Gray Weight 24.9 kg (or 54.9 lbs.)
  • Page 7 SPECIFICATION Model Battery type 18650 lithium-ion Battery capacity 10Ah Battery rated voltage Charging voltage DC42V Charger input voltage AC100-240V Core Charging time 4-6 hours Motor rated power 350W Motor rated speed 200±10r/min Motor rated voltage Controller under voltage value 31±1 V Controller over current value 15±1A Headlight...
  • Page 8 ATTENTION Battery & Charging ● Do not connect the positive to negative, or vice versa. Do not damage, disassemble, or short-circuit the battery. Avoid water, other liquid, or other foreign matter inside the battery to prevent short circuit. ● Instructions in this manual must be followed when charging the battery, otherwise the owner shall take sole responsibility for any consequences.
  • Page 9 ATTENTION ● It is advisable not to go over 15 km/h (or 9.32 mph) when riding on any non-motorized lane, downhill, or paved road. ● Slow down in rain or snow as required braking distances increase. ● It is advisable not to ride in storms or any extreme weather. ●...
  • Page 10 DYU Ebike Owners Group  Manufacturer: Shenzhen DYU Intelligent Mobility Technology Co., Ltd website:www.dyucycle.com...
