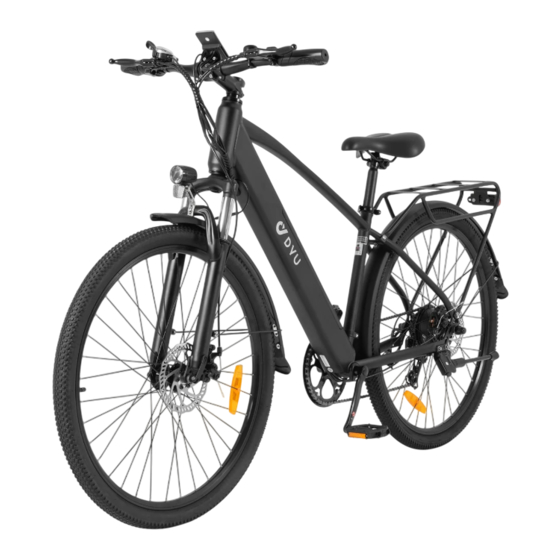

- Page 1 DYU SMART ELECTRIC BIKE C5 INSTRUCTION Do not use the eBike without reading this manual carefully and knowing your eBike thoroughly Please save this manual for future reference...
-
Page 2: Parts And Components
PARTS & COMPONENTS 1.Brake Lever 12.Disc Brake Rotor 23.Chain 2.Mechanic Shifter 13.Disc Brake Caliper 24.Kickstand 3.Shifter 14.Hub 25.Rear Derailleur 4.Power Button 15.Wheel Reflector 26.Motor 5.Display 16.Mudguard Support 27.Spoke 6.Bell 17.Mudguard 28.Pannier Rack 7.Wire Harness 18.Frame 29.Taillight 8.Headlight 19.Battery 30.Seat Tube Quick Release 9.Reflector 20.Pedal 31.Seat Tube... - Page 3 ASSEMBLING 1.Open the box, take out your eBike, and remove the packaging. 2.Assemble the front wheel: Mount the front wheel to the front fork, and tighten the quick release at the front wheel. 3.Assemble the handlebar: Open the riser latch, fix the handlebar upon the riser, align the handlebar, and fasten the screw.
- Page 4 I. Adjust gear When in Pedal Assist Mode, press to gear up by one level, or press to gear down by one level. II. Switch speed unit Press and hold together to switch the unit of speed for display. III. Activate/Deactivate cruising at 4.5 km/h When your eBike is still, press and hold to activate cruising at 4.5 km/h.
-
Page 5: Installing The Pedals
DERAILLEUR SYSTEM Freewheel Pulley Adjustment Screw The derailleur system includes the front and rear derailleur, the shift levers, andthe derailleur control cables, all ofwhich must function properly for smooth gearshifting to occur. Guide Derailleur pelley Although the front and rear deraileur are initially adjusted in Adjustment ourfactory, you wilneed to inspect and read just both before Screws... -
Page 6: Installing The Front Wheel
1. Insert the pedal marked “R” into the crank. Hold the pedal with your hand, and turn it clockwise for a few rounds. Then clamp the pedal shaft with the spanner in the package, and turn it clockwise until fastened. Find the L pedal and repeat the above steps (but rotate counterclockwise). -
Page 7: Charging Port
KICKSTAND (1)Kick the kickstand backward with your foot, and it shall lift up to a position parallel to the ground. (2)Gently press down the kickstand towards the ground with your foot, and it shall support the eBike against the ground. Note: Please be sure to swing the kickstand up before riding. -
Page 8: Specification
SPECIFICATION Model Body material Iron Expanded size 1815*610*1110 mm (or 71.46*24.02*43.70 in) Wheelbase 1120 mm (or 44.09 in) Build Ground clearance 90 mm (or 3.54 in) Wheel hub 27.5 in Net weight 27.3 kg (or 60.19 lbs) Body colour Black Load 120 kg (or 264.55 lbs) Riding speed... - Page 9 SPECIFICATION Model Battery type 18650 lithium-ion Battery capacity 10Ah Battery rated voltage Charging voltage DC54.6V Charger input voltage AC100-240V Core Charging time 5 hours Motor type High-speed motor Motor rated power 250W Motor rated voltage Controller under voltage value 41±1V Controller over current value 15±1A Headlight...
-
Page 10: Battery And Charging
ATTENTION Battery & Charging ● Do not connect the positive to negative, or vice versa. Do not damage, disassemble, or short-circuit the battery. Avoid water, other liquid, or other foreign matter inside the battery to prevent short circuit. ● Instructions in this manual must be followed when charging the battery, otherwise the owner shall take sole responsibility for any consequences. -
Page 11: Maintenance
ATTENTION ● It is advisable not to go over 15 km/h (or 9.32 mph) when riding on any non-motorized lane, downhill, or paved road. ● Slow down in rain or snow as required braking distances increase. ● It is advisable not to ride in storms or any extreme weather. ●... - Page 12 DYU Ebike Owners Group Manufacturer: Shenzhen DYU Intelligent Mobility Technology Co., Ltd website：www.dyucycle.com...
