Summary of Contents for DYU KING750

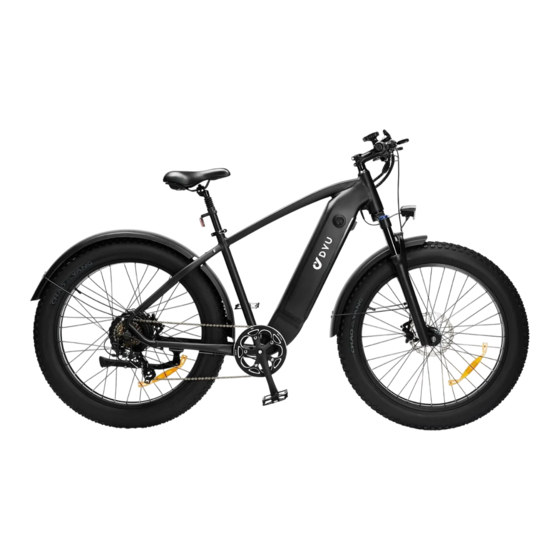

- Page 1 DYU SMART ELECTRIC BIKE KING750 INSTRUCTION Do not use the eBike without reading this manual carefully and knowing your eBike thoroughly Please save this manual for future reference...
-
Page 2: Parts And Components
PARTS & COMPONENTS 1.Brake Lever 13.Hub 24.Kickstand 2.Bell 14.Wheel Reflector 25.Chain 15.Disc Brake Caliper 26.Rear Derailleur 3.Riser 4.Wire Harness 16.Front Mudguard 27.Spoke 5.Shifter Support 28.Motor 29.Flywheel 6.Throttle 17.Front Mudguard 7.Display 18.Battery 30.Pannier Rack 8.Power Button 19.Frame 31.Taillight 9.Headlight 20.Controller 32.Seat Tube Quick 10.Front Fork 21.Chain Wheel Release... - Page 3 ASSEMBLING 1.Open the box, take out your eBike, and remove the packaging. 2.Assemble the front wheel: Mount the front wheel to the front fork, and tighten the screws to lock into place. 3.Assemble the handlebar: Adjust the angle of the stem, fix the handlebar upon the riser, and lock the latch. 4.Assemble the headlight and mudguard: Align the headlight and mudguard set to the positioning holes on the front fork, and secure the position.
-
Page 4: Installing The Pedals
BUTTONS 1.Press and hold the power button for three seconds to power on or off. 2.Press the + button to gear up by one level, and press the – button to gear down by one level. 3.Press and hold the + button to switch the headlight on and off. 4.Press and hold the + and –... -
Page 5: Charging Port
KICKSTAND (1)Kick the kickstand backward with your foot, and it shall lift up to a position parallel to the ground. (2)Gently press down the kickstand towards the ground with your foot, and it shall support the eBike against the ground. Note: Please be sure to swing the kickstand up before riding. -
Page 6: Specification
SPECIFICATION Model KING750 Body material Aluminium Expanded size 1910*630*1135 mm(or 75.20*24.80*44.69 in) Folded size Non-folding Build Wheelbase 1150 mm (or 45.28 in) Ground clearance 125 mm (or 4.92 in) Wheel hub 26 in 34.3 kg (or 75.62 lbs) Net weight... - Page 7 SPECIFICATION Battery type 21700 Lithium-ion Battery capacity 18Ah Battery rated voltage Charging voltage DC54.6V Charger input voltage AC100-240V Charging time 6-7 hours Core Motor type High-speed motor Motor rated power 750W Motor rated voltage Controller under voltage value 41±1V Controller over current value 20±1A Headlight Pannier rack...
-
Page 8: Battery And Charging
ATTENTION Battery & Charging ● Do not connect the positive to negative, or vice versa. Do not damage, disassemble, or short-circuit the battery. Avoid water, other liquid, or other foreign matter inside the battery to prevent short circuit. ● Instructions in this manual must be followed when charging the battery, otherwise the owner shall take sole responsibility for any consequences. -
Page 9: Maintenance
ATTENTION ● It is advisable not to ride in storms or any extreme weather. ● Avoid impact on the motor. ● Keep the bearings lubricated. ● Do not park your eBike in any lobby, walkway, evacuation stairway, or emergency entrance/exit. ●... - Page 10 DYU Ebike Owners Group Manufacturer: Shenzhen DYU Intelligent Mobility Technology Co., Ltd website：www.dyucycle.com...
