- Page 1 DYU ELECTRIC BIKE USER MANUAL （Please read the instruction manual carefully and understand the perfor- mance of the electric bicycle before using. Please keep the instruction manual properly） MADE BY DYU...

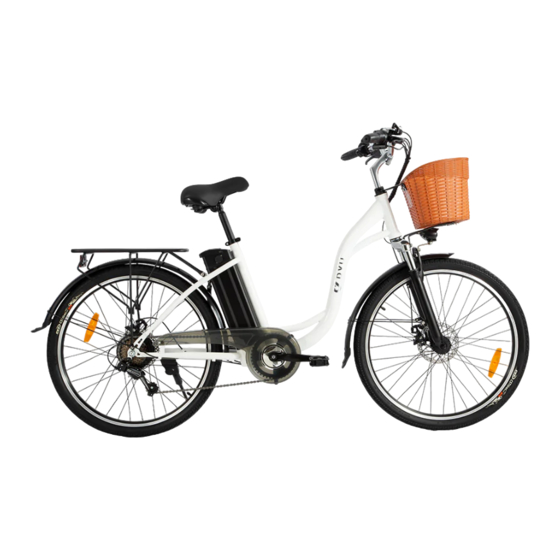

- Page 2 PRODUCT FUNCTION DIAGRAM front derailleur grip brake lever seat throttle stem rear carrier hed set front basket hed bube battery front light seat post QR front fork rear light fender rod front fender frame rear fender front tyre spoke rear brake hub motor freewheel centre shaft...
- Page 3 2. Turn on the Dyu E-bike: Push forward the boot button to power-assisted sensors to ride. turn on the E-bike, the dash board lights up; Push back the 8.
- Page 4 INTRODUCTION TO THE ICONS ON METER INTERFACE Definition of Display Icon Display Display Icon Push the front light button forward to turn on Front Light the front light, push it backward to turn off the front light. It displays power range. Current Power FUNCTION OF BUTTON Click to turn on/display battery, then click to turn off...
- Page 5 Gears Some of Dyu E-Bike go with gears, which consists of: • A rear sprocket cluster, called a freewheel or cog set • A rear derailleur • One swifter • One control cable • One front sprocket called a chaining •...
- Page 6 PARAMETERS Model Material Steel 1500*220*760mm Spread size Folding size 1850*610*1170mm Size Center distance 1170mm Hub size 26inch Package size 1490*250*760mm Color White Weight 27kg Max load 120kg Riding speed 20km/h Max speed 25km/h Performance Mileage(pure electric) 40±3km Assistant-Mileage 40-60km Uphill 15 degree Temperature -10~45℃...
- Page 7 CAUTION Charge between 0 degree- 45 degree, rife between -20 degree to 60 degree, keep the battery dry. Don’t put it in acid and alkalinity fluid. No rain, fire and heat. Don’t put the battery positive an negative wrong. Don’t damage disassemble the battery or use the wrong adapter.
