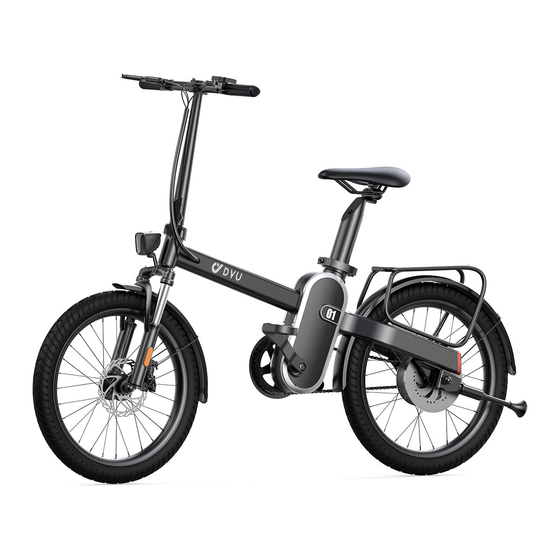

DYU SMART ELECTRIC BIKE R1
INSTRUCTION
This appliance can be used by children aged from 8 years and above and persons with reduced
physical,sensory or mental capabilities or experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved.Children shall not play with the appliance.Cleaning and user maintenance
shall not be made by children without supervision.
Advertisement
Related Manuals for DYU F-wheel R1
Summary of Contents for DYU F-wheel R1
- Page 1 DYU SMART ELECTRIC BIKE R1 INSTRUCTION This appliance can be used by children aged from 8 years and above and persons with reduced physical,sensory or mental capabilities or experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.Children shall not play with the appliance.Cleaning and user maintenance...
- Page 2 Smart E-bike Using Manual Frame Throttle Handlebar Dashboard Pedal Brake Lever Crank Handle Bar Chainwheel Standpipe Controller case Vertical folding clasp Chain Front light Kickstand Head tube Back fender holder Front fork Back fender Tyre Tail light Wheel hub Rear reflector Brake Disc Back Seat Brake...
- Page 3 Functions 1.Open the carton, straighten the handle with wrench，put the front wheel into front fork groove，Install the Easy- -Opening to lock strictly，gently grasp the brake lever several times，before the brake lines return to optimal condition, confirm that front wheel no abnormal sound while rotating，and front & rear brakes’ function normal.Insert seat tube， lock it with handle after adjusted the seat height，cconnect with power cable, install the pedals,then OK.
- Page 4 Product Parameters Model Frame Material Aluminum Foldable Size 1530*220*720 mm Spread Size 1530*570*1140 mm Package Size 1290*260*635 mm Appearance Size Centre Distancel 976 mm Pedals’ Ground Clearance 130 mm Wheel Hub Size 20 inch Frame Color Black, Silver, Blue Net Weight 20.1 KGS Max Loading 150 KGS...
- Page 5 Product Parameters Model Battery Type Lithium Ion Battery Battery Capacity Battery Rated Voltage DC36V Charging Voltage DC42V Charger Input Voltage AC220V Accessories Charging Time 3--4H Parameters Motor Type Brushless D.C.Motor Motor Rated Power 250W Motor Rated Speed 280r/min Motor Rated Voltage Controller Under-Voltage Value 31±1V Current Limit Value...
- Page 6 电路原理图 HY-5Y Hub Port Female DC2.1 charge port 100VAC Power 36V E-lock_36V E-lolck_36V 100VAC Left Dashboard 36V Battery Pack Phase A Brake Left Brake Handle Phase Bullet Motor Brake Hall SM-6Y Right Brake Handle VM Hall E-lock_36V Phase B Controller HY-3A Pin Plug Phase C Front...
- Page 7 ATTENTION Battery and Charging Limits 0°~45° conditions for charging,-10°~ 45° discharge, keep the battery dry, do not put the battery in acid, alkaline liquid, avoid rain, away from the fire, heat source and high temperature environment, it is prohibited the positive and negative poles of the battery are connected reverse, do not destroy, disassemble the battery or make the battery short circuit.
- Page 8 Drive on the right side of the non-motorized lane, downhill and paved road surface no more than 15km/h. Drive on the right side when there is no non-motorized lane; When adjusting handlebars or saddle, pay attention not to leak the safety line mark of the riser pipe and saddle pipe;...
- Page 9 Disclaimer The company reserves the right of modification and final interpretation of the product models, specifications or relevant information mentioned in this manual The functions of a specific model mentioned in this manual are only applicable to that particular model; The product models, specifications or relevant information mentioned in this manual are subject to modification or change without prior notice.
- Page 10 DYU Official Store Facebook Group Manufacturer: Shenzhen DYU Intelligent Mobility Technology Co., Ltd website：www.dyucycle.com...
