Quick Programming Guide

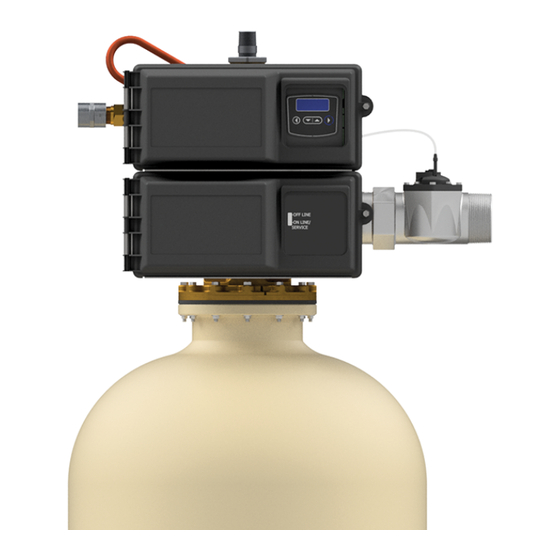

Simplex Water Softeners with NXT2 Timer
PWS10, PWS15, PWS20 and PWS30
This programming guide is NOT intended to replace the
Installation, Operation and Maintenance manual. Please
reference IOM for complete Installation, Operation and
Maintenance instructions for your system.
Before entering programming, you must confirm the compensated
water hardness level and the capacity of the system being
installed to insure proper programming and efficiency of system.
If you have any questions, please contact your local Watts
Representative or Pure Water Technical Support at 1.800.224.1299
then press #2.
Quick Programming Guide-WQ-NXT2

Advertisement

loading
Need help?

Need help?

Do you have a question about the PWS10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Watts PWS10

  • Page 1 If you have any questions, please contact your local Watts Representative or Pure Water Technical Support at 1.800.224.1299 then press #2.
  • Page 2 Table of Contents Controller Display ���������������������������������������������������������������������� 3 Setting the Time of Day ������������������������������������������������������������� 4 Master Programming Mode ������������������������������������������������������� 4 Settings Review Screen ������������������������������������������������������������� 4 Language ���������������������������������������������������������������������������������� 5 Assistant Name 1 (optional) ������������������������������������������������������� 5 Assistant Name 2 (optional) ������������������������������������������������������� 5 Assistance Phone (optional) ������������������������������������������������������� 5 System Type ������������������������������������������������������������������������������...
  • Page 3 Controller Display LED Status indicator Blue - Unit in Service Flashing Blue - Regeneration Queued Green - Regeneration Flashing Green - Standby Red - Error with Codes...
  • Page 4 Setting the Time of Day • Press and hold the Up button for 2 seconds • The “Time” value is displayed� Press the Up or Down buttons to adjust as desired • Press the Extra Cycle button to advance to the “Year” field •...
  • Page 5 Language • Press the Up or Down buttons to select desired Language • Press the Extra Cycle button to advance to the next field Assistant Name 1 (optional) • Press the Up or Down buttons to enter Letters, press the Extra Cycle button to move curser over or to add a space •...
  • Page 6 • Press the Extra Cycle button to advance to the next field Select Valve • Press the Up and Down buttons to Select the Valve Type PWS10 Series = 2750 Valve PWS15 Series = 2850 Valve PWS20 Series = 2900 Valve PWS30 Series = 3900 Valve •...
  • Page 7 • Press the Up or Down buttons to enter Softener Grain Capacity, press the Extra Cycle button to move curser over • If you are unsure of Grain Capacity, STOP and contact your local Watts Representative • Press the Extra Cycle button to advance to the next field Hardness - GPG •...
  • Page 8 Reserve • Press the Up or Down buttons to select Reserve Capacity • Select Fixed %, then press the Extra Cycle button, press the Up or Down buttons to enter 20%, press the Extra Cycle button to move curser over •...
  • Page 9 Regen. Time • Press the Up or Down buttons to enter Regeneration Time, press the Extra Cycle button to move curser over • Enter - 02:00AM • Press the Extra Cycle button to advance to the next field Lock Window #1 •...
  • Page 10 • Press the Extra Cycle button to advance to the next field Meter Type • Press the Up or Down buttons to select Meter Type For PWS10 control valve select – 1.0" Turbine For PWS15 control valve select – 1.5" Turbine For PWS20 control valve select – 2.0" Paddle For PWS30 control valve select - Generic •...
  • Page 11 Continuous Flow Detect • Press the Up or Down buttons to enter Continuous Flow Detect factor • Select - OFF • Press the Extra Cycle button to advance to the next field Auxiliary 1 • Press the Up or Down buttons to select Auxiliary 1 •...
  • Page 12 Lock Settings • Press the Up or Down buttons to enter Lock Settings factor • Select - OFF • Press the Extra Cycle button to advance to the next field • Master programming should be completed, and you should be returned to the Service screen •...
  • Page 13 Per Gallon, press the Extra Cycle button to move curser over • If you are unsure of Compensated Water Hardness, STOP and contact your local Watts Representative� You will need to have your tested water hardness prior to contacting Watts •...
  • Page 14 • User Programming Mode should be completed, and you should be returned to the Service screen • If you have any questions, please contact your local Watts Representative or Pure Water Technical Support at 1.800.224.1299 then press #2 • Next step is to Manually Initiate a Regeneration to place system into a forced Backwash by pressing and holding the Extra Cycle button •...
